TREND T5 - DESCRIPTION OF PARTS

T5
-6-
E
D
F
G
H
I
K
J
L
M
Y
N
O
Q
W
R
S
P
Z
T
U
V
A
B
C
X
AA

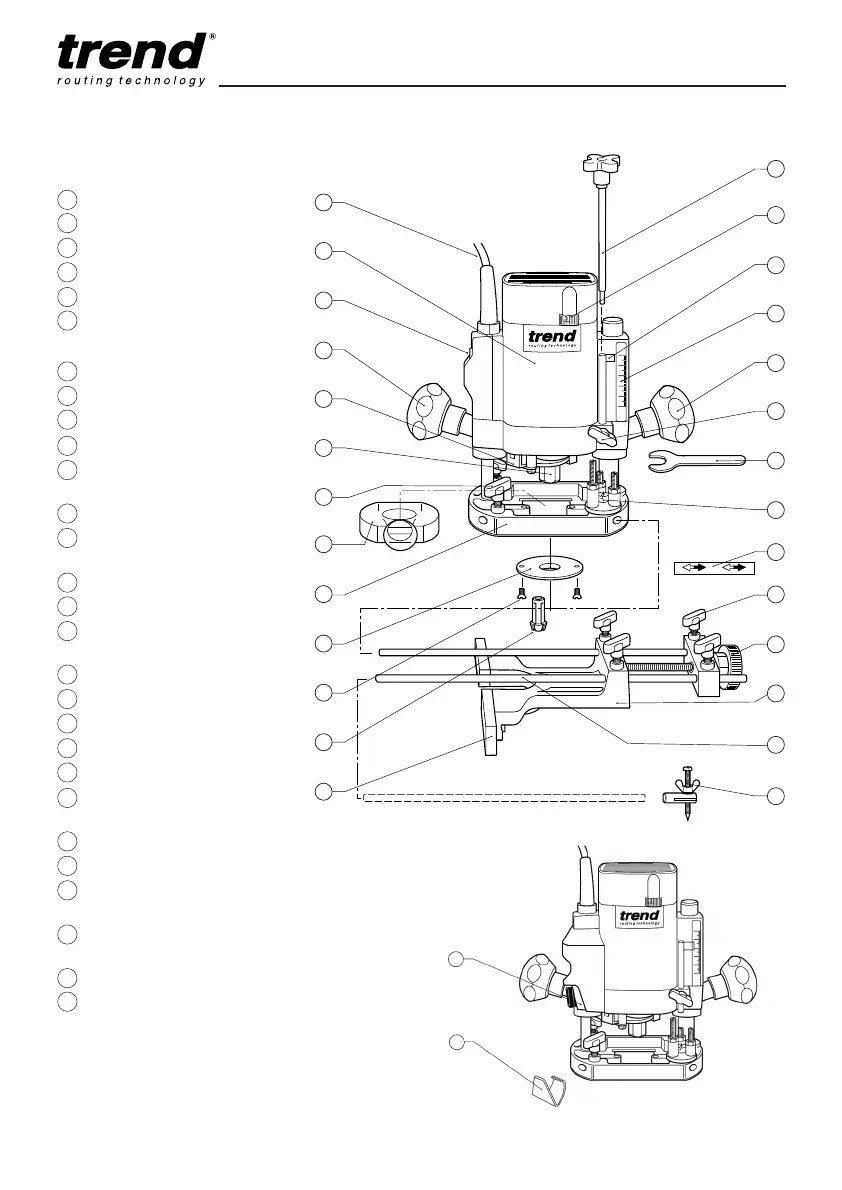

A Plunge locking grip knob
B Depth of cut scale
C Depth stop
D Motor housing
E Power cable
F On/Off switch: MK1
MK2
G Fixed Grip knob
H Spindle lock
I Collet nut
J Dust spout 35mm dia.
K Thumb knob with anti-vibration
spring to secure fence rods
L Router base
M Template guide bush dia.
20mm
N Collet
O Adjustable fence cheek
P Thumb knob with anti-vibration
spring for side-fence rod
Q Beam trammel attachment
R Side-fence
S Knob for micro-adjustment
T 3-way turret stop
U Spanner (17mm A/F)
V Thumb knob with anti-vibration
spring for depth stop
W Fence rods dia. 8mm x 300mm
X Variable speed control dial
Y Template guide bush fixing
screw
Z Grip knob direction arrow
sticker
AA Fine height adjuster*
AB T5MK2 trigger lock
DESCRIPTION OF PARTS
MK1
*not Basic models
MK2
F
AB
