TREND TB/TC/S - Remove Cover; Mount on Pipe; Insert Cable

2 TB/TC/S Strap-on Temperature Sensor Installation Instructions TG201240 Issue 2, 18-Dec-2015.

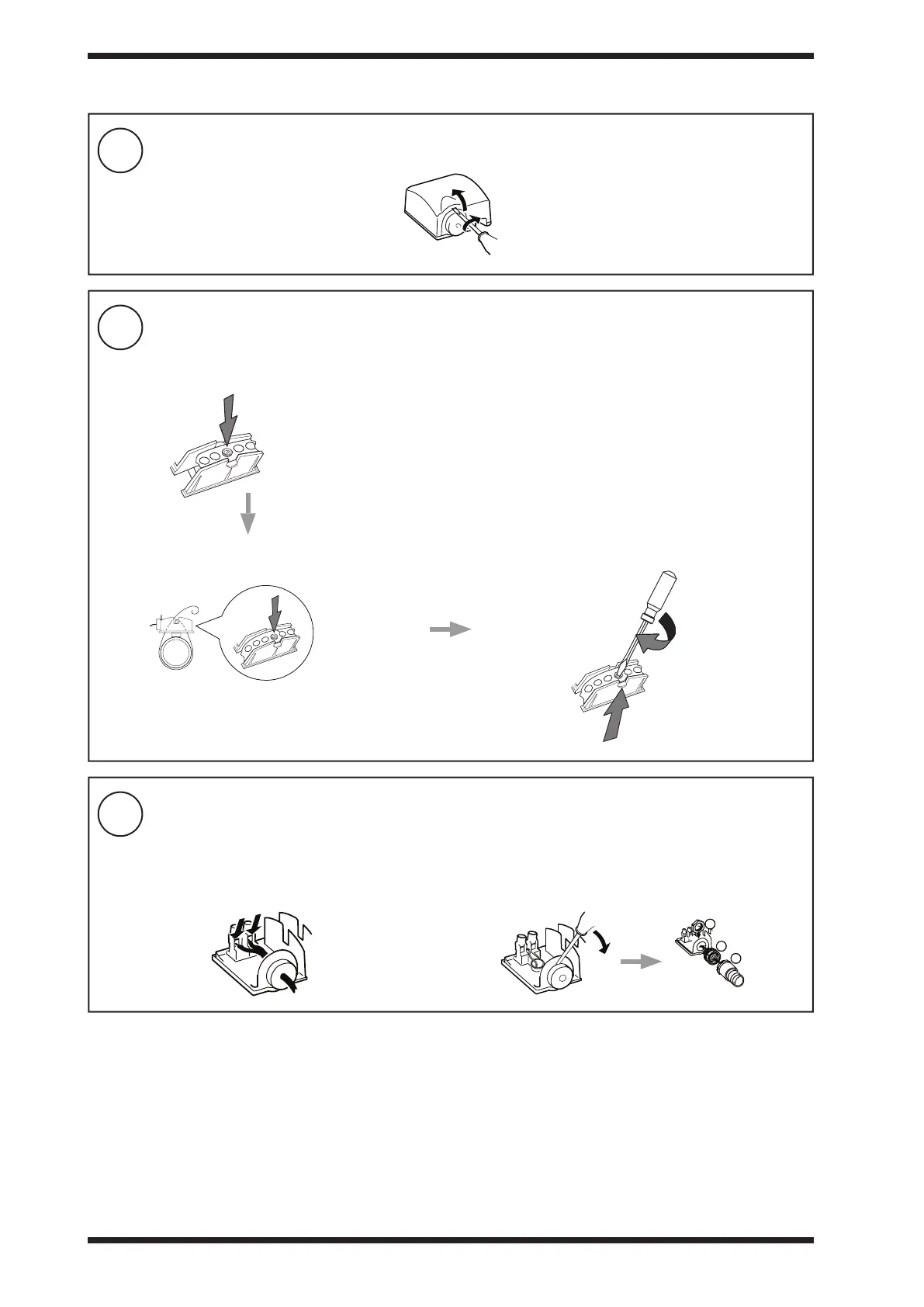

TB/TC/S Installation Instructions
3
Remove Cover
4
Mount on Pipe
Engage one end of strap over stud
Wrap strap around sensor and pipe and engage other end
over stud
Screw to lift stud and tighten strap to secure sensor to pipe
IMPORTANT: Remove any paint on the pipe before  tting the
strap-on temperature sensor
5
Insert Cable
1
2
3
Either using grommet:
Insert cable through grommet and connect
signal wires, as shown below
Or using cable entry gland:
Remove grommet and replace with PG11 cable entry gland
(not supplied), as shown below, and connect signal wires
2 INSTALLATION (continued)
