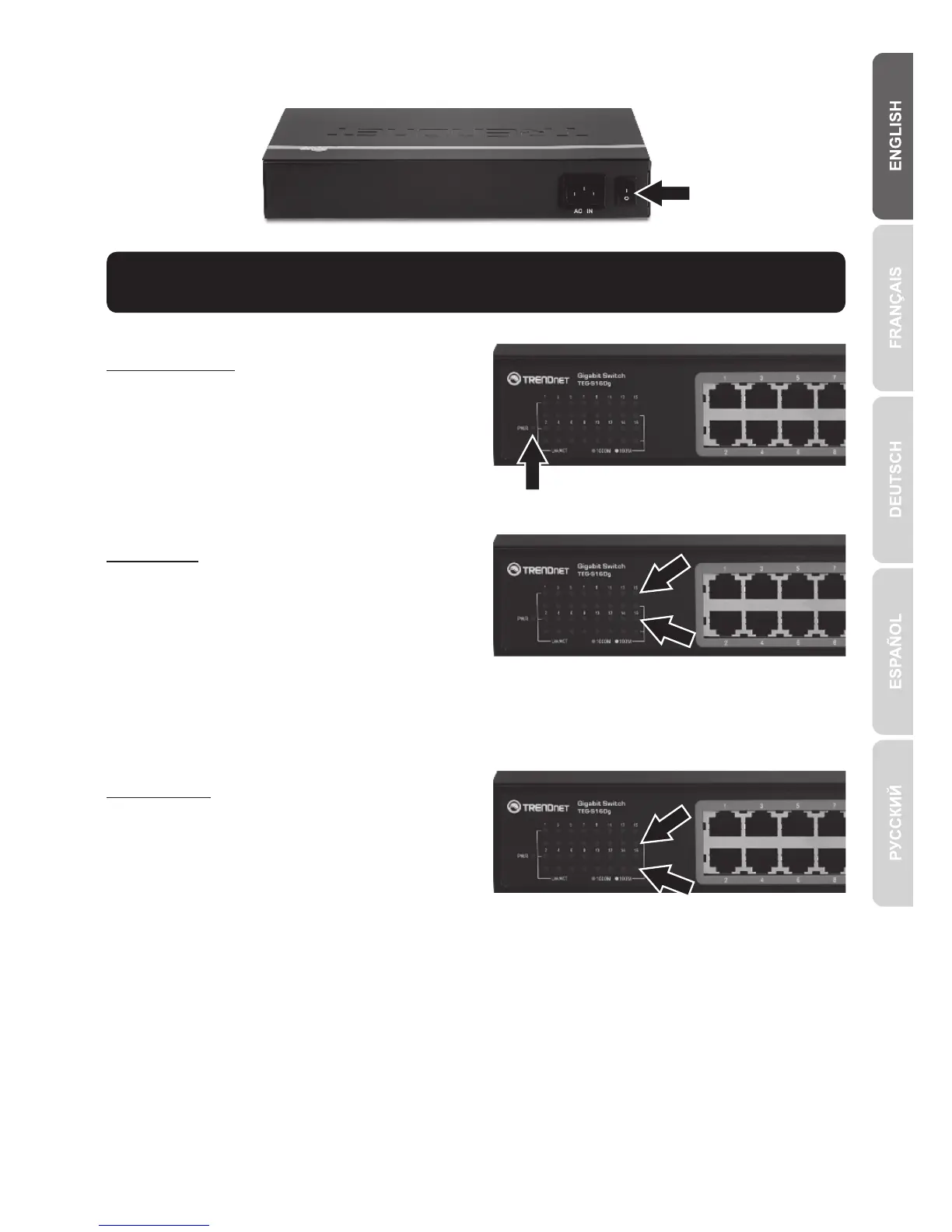

3. LEDs
PWR (Power)
ŸGreen: Power is on
ŸNot Illuminated: Power is off
Link/ACT
ŸGreen (Solid): Link to a network
device
ŸGreen (Blinking): Activity is
occurring from the link
ŸNot Illuminated: No connection
100/1000M
ŸGreen: Connection for the port is
2000Mbps (Full)
ŸAmber: Connection for the port is
100/200Mbps (Half/Full)
ŸNot Illuminated: Connection for
the port is 10/20Mbps (Half/Full) or
no connection
3. Move the power switch to the On position.
To Next Page
