TRENDnet TEW-651BR Quick Installation Guide

ENGLISHFRANÇAISDEUTSCHESPAÑOL
РУССКИЙ
2. Hardware Installation
3

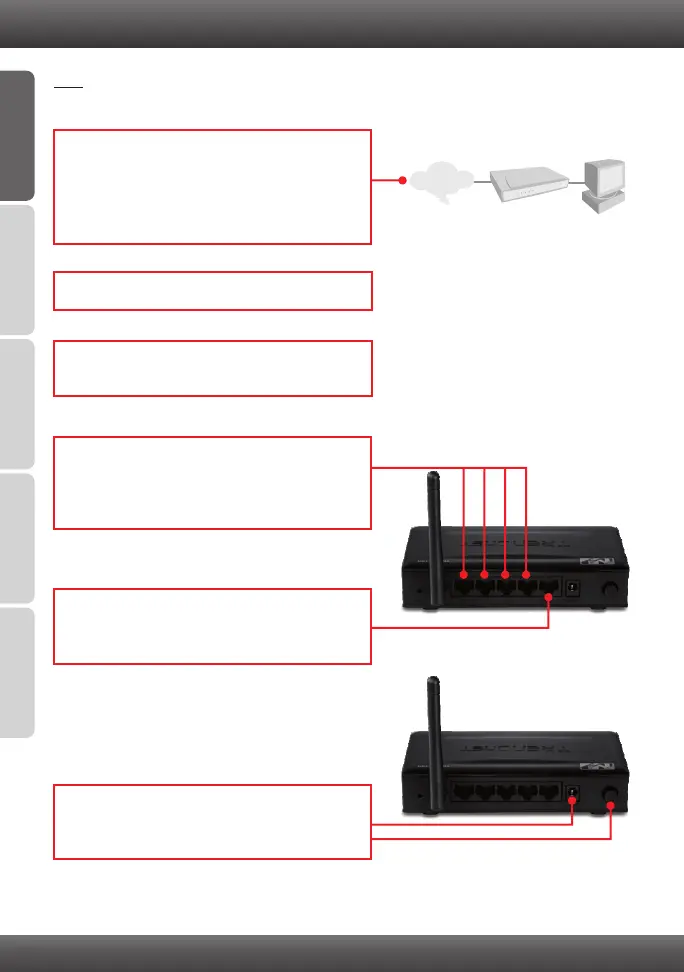

Note: Gather all information related to your Internet Connection before you start. If necessary,
contact your Internet Service Provider (ISP).
Cable/DSL Modem
Internet
1. Verify that you have an Internet connection
when connecting your computer directly to the
Cable or DSL modem. Open your browser (e.g.
Internet Explorer) and type in a URL (e.g.
http://www.trendnet.com) in the address bar.
2. Power off your cable or DSL modem.
3. Disconnect the network cable from your Cable
or DSL modem and your computer.
6. Connect the Power Adapter to the wireless
router and then to a power outlet. Push the
power button to the “On” position.
4. Connect one end of a network cable to one of
the TEW-651BR's LAN ports. Connect the
other end of the cable to the computer's
network port.
5. Connect one end of a network cable to the
TEW-651BR’s WAN port. Connect the other
end of the cable to your modem’s network port.

TRENDnet TEW-651BR Specifications

General

I/O ports	1 x 10/100Mbps Auto-MDIX WAN 4 x 10/100Mbps Auto-MDIX LAN
Indoor range	100m
Outdoor range	300m
Frequency range	2.412 - 2.484 GHz
xDSL connection	No
Dimensions (WxDxH)	150 x 110 x 30 mm
Power requirements	5V DC, 1.2A
Output power description	802.11b: 15dBm @ 11Mbps; 802.11g: 15dBm @ 54Mbps; 802.11n: 13dBm @ 150Mbps
Minimum system requirements	Internet Explorer 6.0 +, Firefox, Safari
Compatible operating systems	Windows, Linux, & Mac
Supported data transfer rates	802.11b: 11Mbps; 802.11g: 54Mbps; 802.11n: 150Mbps;
WLAN data transfer rates supported	150 Mbit/s
Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Receiver sensitivity	802.11b: -85dBm @ 11Mbps 802.11g: -68dBm @ 54Mbps 802.11n: -62dBm @ 150Mbps
Supported network protocols	Dynamic IP, Static (fixed) IP, PPPoE, PPTP, L2TP
Modulation	QPSK
Channels quantity	13 channels
Antennas quantity	1
Antenna gain level (max)	2 dBi
Ethernet LAN (RJ-45) ports	4
LED indicators	Status, LAN1 - LAN4, WAN, WLAN
Certification	CE, FCC
Power consumption (typical)	3.5 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Weight	225 g
