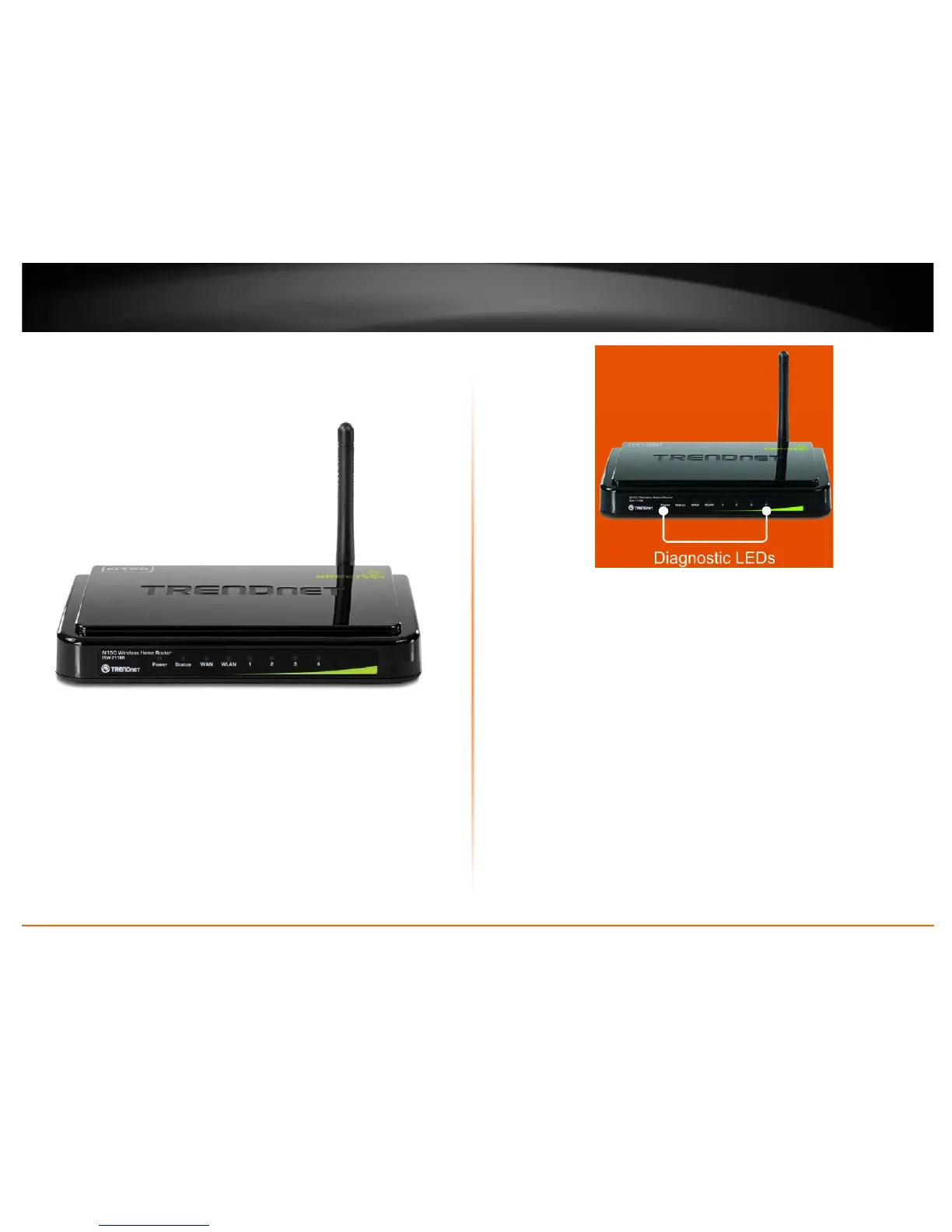

Front View
• Power LED -This LED indicator is solid green when your router is powered on.
Otherwise if this LED indicator is off, there is no power to your router.
• Status LED - This LED indicator is blinking green when your router is ready and
working successfully. If this LED indicator is solid green on or off, your router is
not receiving power or not working properly.
• WAN (Link/Activity) LED – This LED indicator is solid green when your router
WAN port is physically connected to the modem Network port (also called
network port) successfully with a Network cable. The LED indicator will be
blinking green while data is transmitted or received through the WAN port of
your router.
• WLAN (Link/Activity) LED – This LED indicator is blinking green when the
wireless is “On” and functioning properly on your router. This LED indicator will
be blinking green rapidly while data is transmitted or received by your wireless
clients or wireless network devices connected to your router.
• LAN 1-4 (Link/Activity) LEDs – These LED indicators are solid green when the
LAN ports are successfully connected to your wired network devices (which are
turned on). These LED indicators will blink green while data is transmitted or
received through your router’s LAN ports.

TRENDnet TEW-711BR Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Receiver sensitivity	802.11b: -85dBm @ 11Mbps 802.11g: -68dBm @ 54Mbps 802.11n: -62dBm @ 150Mbps
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Maximum indoor range	100 m
Maximum outdoor range	300 m
WLAN data transfer rate (max)	150 Mbit/s
Input current	1 A
Rack mounting	No
Frequency band	2.4 GHz
Operating temperature (T-T)	32 - 104 °F
WLAN data transfer rates supported	11, 54, 150 Mbit/s
Ethernet LAN (RJ-45) ports	5
Supported network protocols	PPPoE, PPTP, L2TP, UPnP
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2, WPA2-PSK
Antennas quantity	1
Antenna gain level (max)	2 dBi
Certification	CE, FCC, RoHS, CSMA/CA, ACK, ETSI
Power consumption (typical)	2.8 W
Storage temperature (T-T)	-10 - 70 °C
Product color	Black
LED indicators	LAN, Status, WAN, WLAN

Weight and Dimensions

Depth	109 mm
Width	158 mm
Height	34 mm
Weight	204 g
