TRENDnet TEW-711BR User Manual

© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TEW-711BR
4

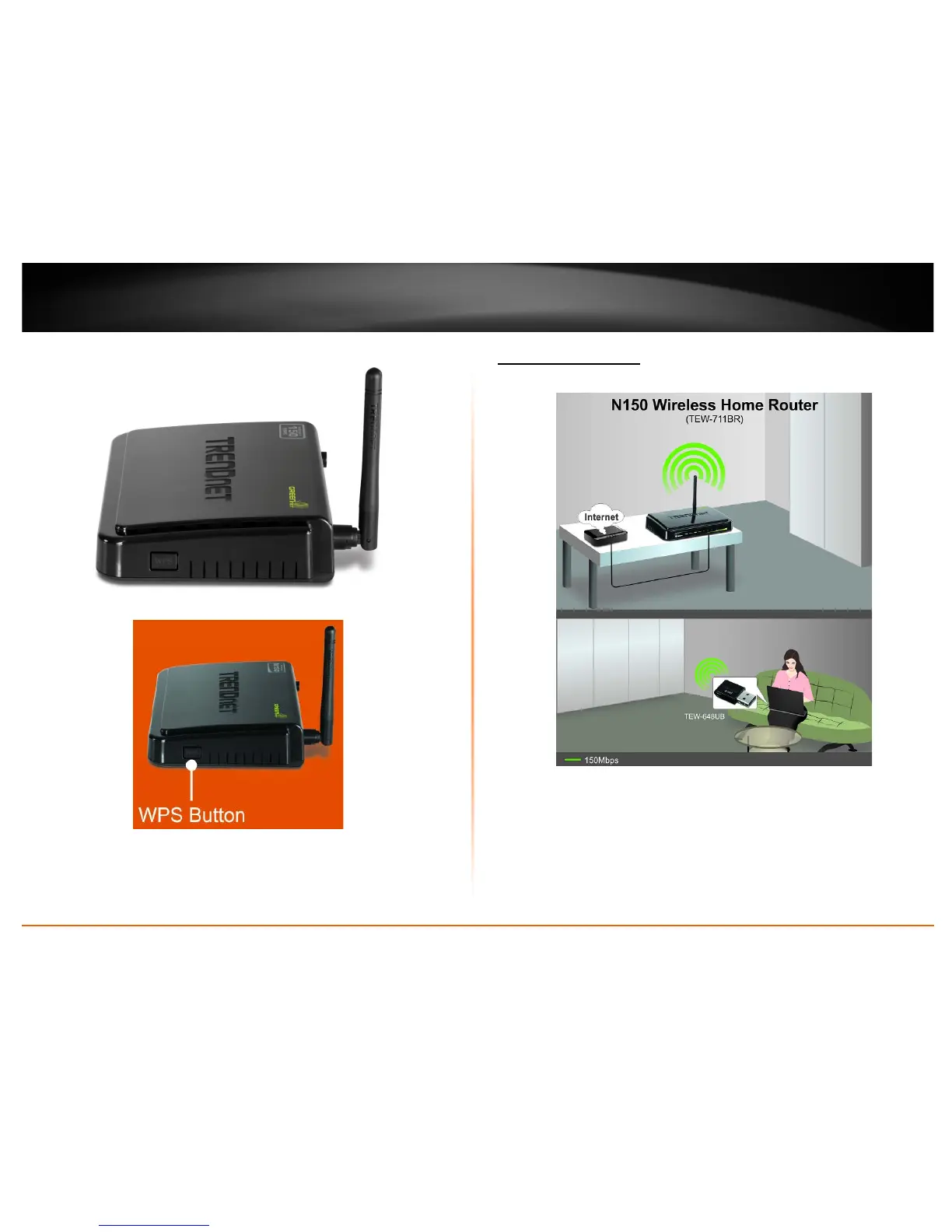

Side View
• WPS (Wi-Fi Protected Setup) – Push and hold this button for 3 seconds to
activate WPS. The button LED is blinking blue when WPS is activated.
Application Diagram
The router is installed near the modem (typically supplied by your ISP “Internet Service
Provider”) and physically connected to it from the router’s WAN port to the modem’s
network port which connects to the Internet. Wireless signals from the router are
broadcasted to wireless clients such as laptops (with wireless capability) thereby
providing Internet access.

TRENDnet TEW-711BR Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Receiver sensitivity	802.11b: -85dBm @ 11Mbps 802.11g: -68dBm @ 54Mbps 802.11n: -62dBm @ 150Mbps
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Maximum indoor range	100 m
Maximum outdoor range	300 m
WLAN data transfer rate (max)	150 Mbit/s
Input current	1 A
Rack mounting	No
Frequency band	2.4 GHz
Operating temperature (T-T)	32 - 104 °F
WLAN data transfer rates supported	11, 54, 150 Mbit/s
Ethernet LAN (RJ-45) ports	5
Supported network protocols	PPPoE, PPTP, L2TP, UPnP
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2, WPA2-PSK
Antennas quantity	1
Antenna gain level (max)	2 dBi
Certification	CE, FCC, RoHS, CSMA/CA, ACK, ETSI
Power consumption (typical)	2.8 W
Storage temperature (T-T)	-10 - 70 °C
Product color	Black
LED indicators	LAN, Status, WAN, WLAN

Weight and Dimensions

Depth	109 mm
Width	158 mm
Height	34 mm
Weight	204 g
