8
3. Ground Wire and Pole Mount Installation

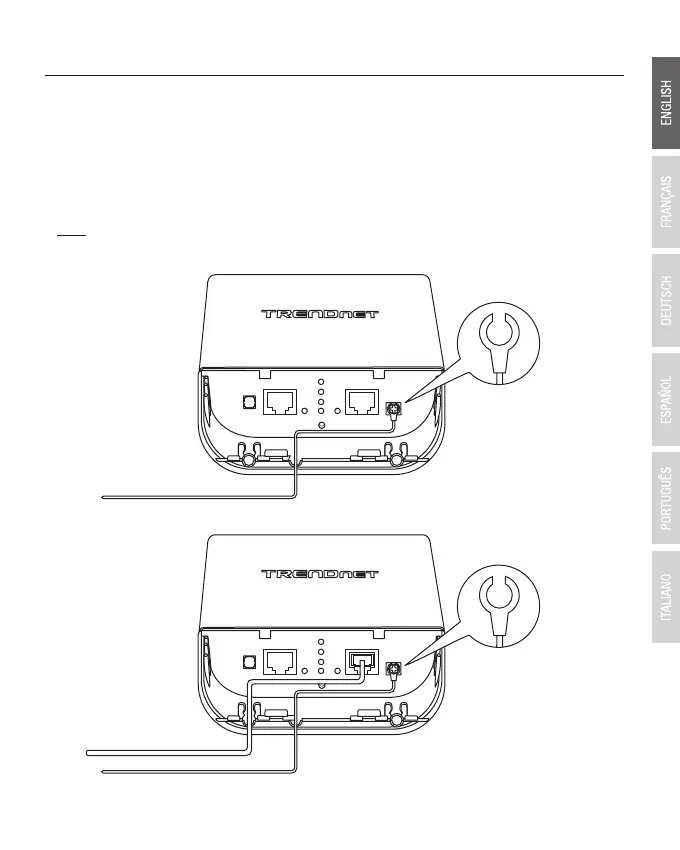

1. Locate the grounding point located in the bottom section of the enclosure. Using a Phillps
screwdriver, remove the grounding point screw (counter clockwise) and attach the included
grounding wire to the grounding point screw. Then reattach the ground screw (clockwise)
along with the grounding wire. After installing the grounding wire, remove another tab on the
enclosure by gently bending back and forth until the tab is removed. This will create the
opening for the ground cable to be routed through.
Note: The ground wire may need to be cut and extended using additional ground wire in order
to reach a proper grounding point.
Tab
Grounding point
To Next Page
