TRENDnet User’s Guide
TK-215i
3

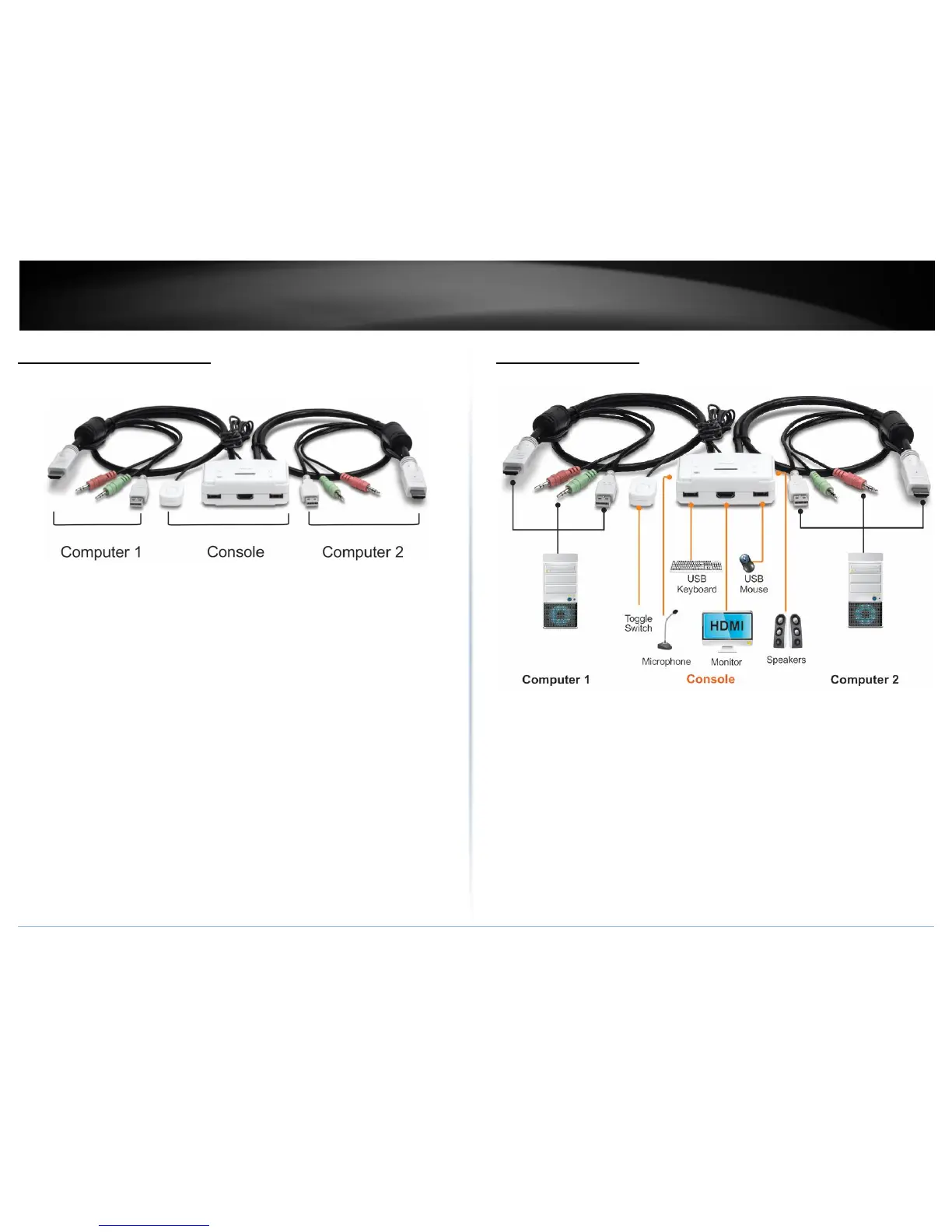

Product Hardware Features
Console Connector Computer 1 - 2 Connector
- Toogle Switch - HDMI Plug
- 3.5mm Microphone Port - 3.5mm Microphone Plug
- USB Keyboard Port - 3.5mm Speaker Plug
- HDMI Monitor Port - USB Plug
- USB Mouse Port
- 3.5mm Speaker Port
Application Diagram
