TRENDnet TW100-BRV304 - Physical Details

TW100-BRV304 User's Guide
Physical Details
Front-mounted LEDs

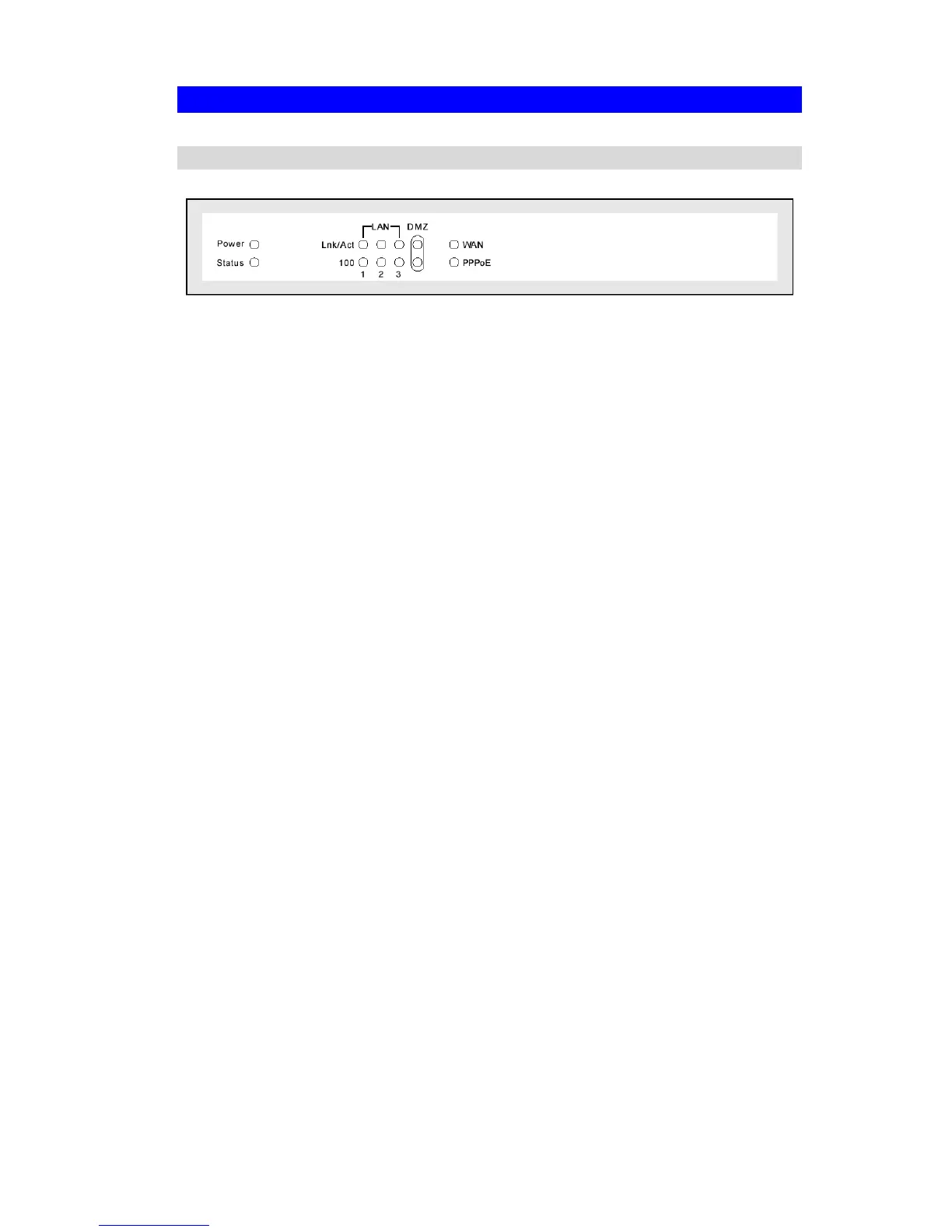

Figure 2: Front Panel
Power On - Power on.
Off - No power.
Status (Red) On - Error condition.
Off - Normal operation.
Blinking - This LED blinks during start up.
LAN
Each port has 2 LEDs
• Link/Act
• On - Corresponding LAN (hub) port is active.
• Off - No active connection on the corresponding LAN (hub) port.
• Flashing - Data is being transmitted or received via the corres-
ponding LAN (hub) port.
• 100
• On - Corresponding LAN (hub) port is using 100BaseT.
• Off - Corresponding LAN (hub) port connection is using
10BaseT, or no active connection.
DMZ
• Link/Act
• On - DMZ port is active.
• Off - No active connection to the DMZ port.
• Flashing - Data is being transmitted or received via the DMZ
port.
• 100
• On - DMZ port is using 100BaseT.
• Off - DMZ port connection is using 10BaseT, or no active con-
nection.
WAN On - Connection to the modem attached to the WAN (Internet) port is
established.
Off - No connection to a modem on the WAN (Internet) port.
Flashing - Data is being transmitted or received via the WAN port.
PPPoE On - PPPoE connection established.
Off - No PPPoE connection.
