Triad InRoom - Volume Control Wiring Diagrams

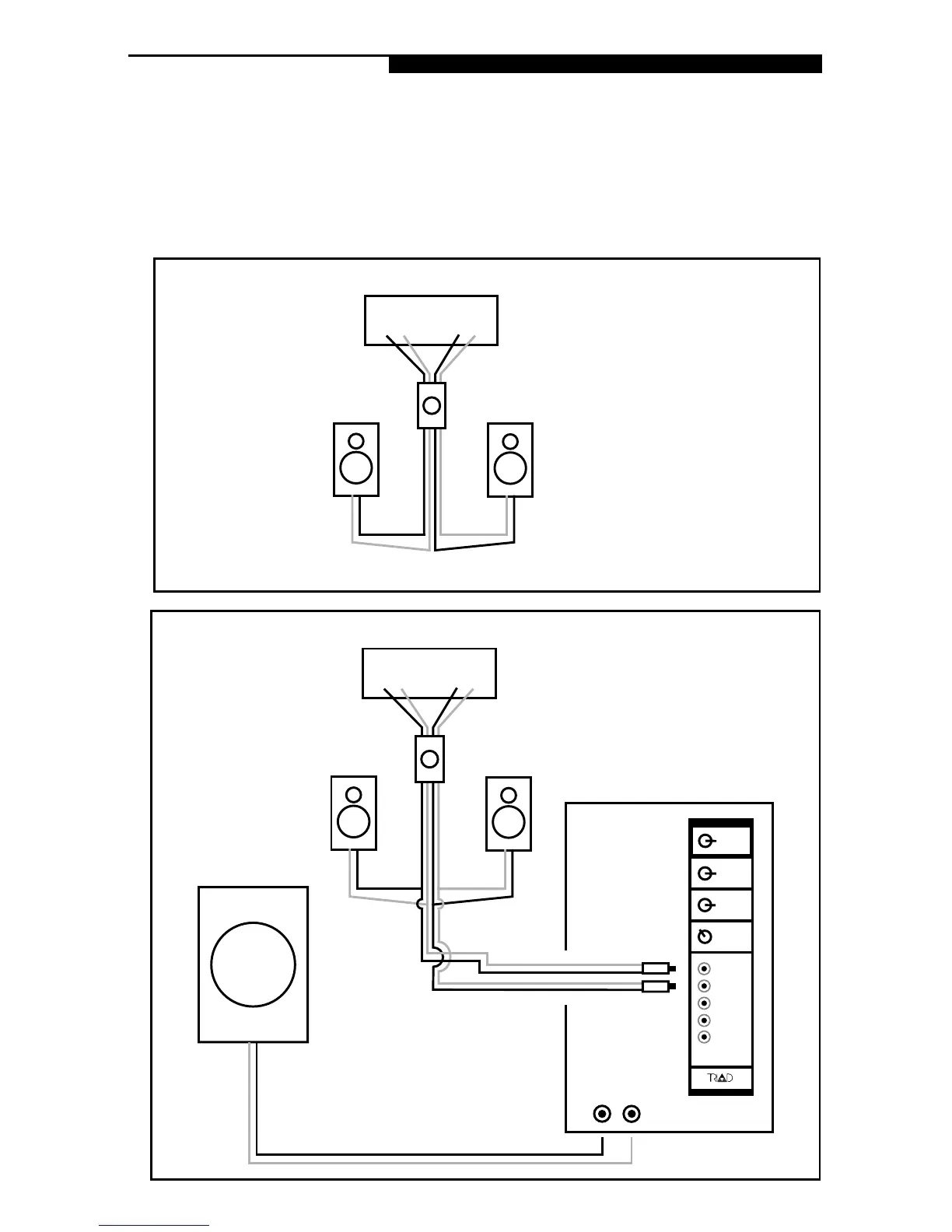

Volume Control Wiring Diagram:
Satellites & Subwoofers
4
Volume Control
With Triad Satellites
AMPLIFIER
LEFT
RIGHT
– + – +
VOLUME
CONTROL
TRIAD
SATELLITES
Volume Control
With Triad Satellites
& PowerSub
AMPLIFIER
LEFT
RIGHT
– + – +
VOLUME
CONTROL
Converter Required for Speaker Level Inputs
See Owner's Manual
MID
LEFT
RIGHT
THEATER
L/HP
Converter Required for Speaker Level Inputs
See Owner's Manual
80 Hz
80 Hz
0
o
R/HP
TRIAD
CONVERTERS
TRIAD POWERSUB AMPLIFIER
– +
TRIAD POWERSUB
TRIAD
SATELLITES
