Trianco TRG 45 - TECHNICAL INFORMATION

3. TECHNICAL INFORMATION
BOILER MODEL TRG 45 TRG 60 TRG 80
Heat Output kW 13.2 17.6 23.5
Btu/h 45,000 60,000 80,000
*Radiator Surface m
2
21 30 42
ft
2
230 325 450
Max. Burning Rate kg/h 2 2.5 3.4
lb/h 4.5 5.5 7.5
Hopper Capacity kg 30 37 41
lb 67 82 91
Weight kg 120 150 196
lb 266 330 435
Water Capacity litres 34 40 48
gal. 7.5 8.8 10.6
Forced Draught Fan
230 volt 50Hz Watts 24 24 35
Water Connections
(two flow, two return) in. BSP 1 1 1
Flue Outlet Socket
for BS Flue-pipe in 5 5 5
Maximum Working head 15.8m (52ft)
Thermostat Adjustable between 55° C and 82° C in six settings.
Casing White stove enamel with two tone grey facia.
Insulation Glass fibre lining in side panels.
Draught Stabiliser Integral part of boiler
*Based on 160 Btu/h/sq. ft/100 F difference. An allowance of 8,000 Btu/h has been made for domestic hot water.
NOTE
THE BOILER MUST HAVE A CONTINUOUS ELECTRICAL SUPPLY WHICH SHOULD BE INTERRUPTED ONLY BY THE BOILER THERMOSTAT
AND THE SAFETY SWITCH. ANY SYSTEM CONTROLS SUCH AS A TIME-SWITCH OR ROOM THERMOSTAT MUST BE WIRED
INDEPENDENT OF THE BOILER TO CONTROL THE CENTRAL HEATING PUMP.

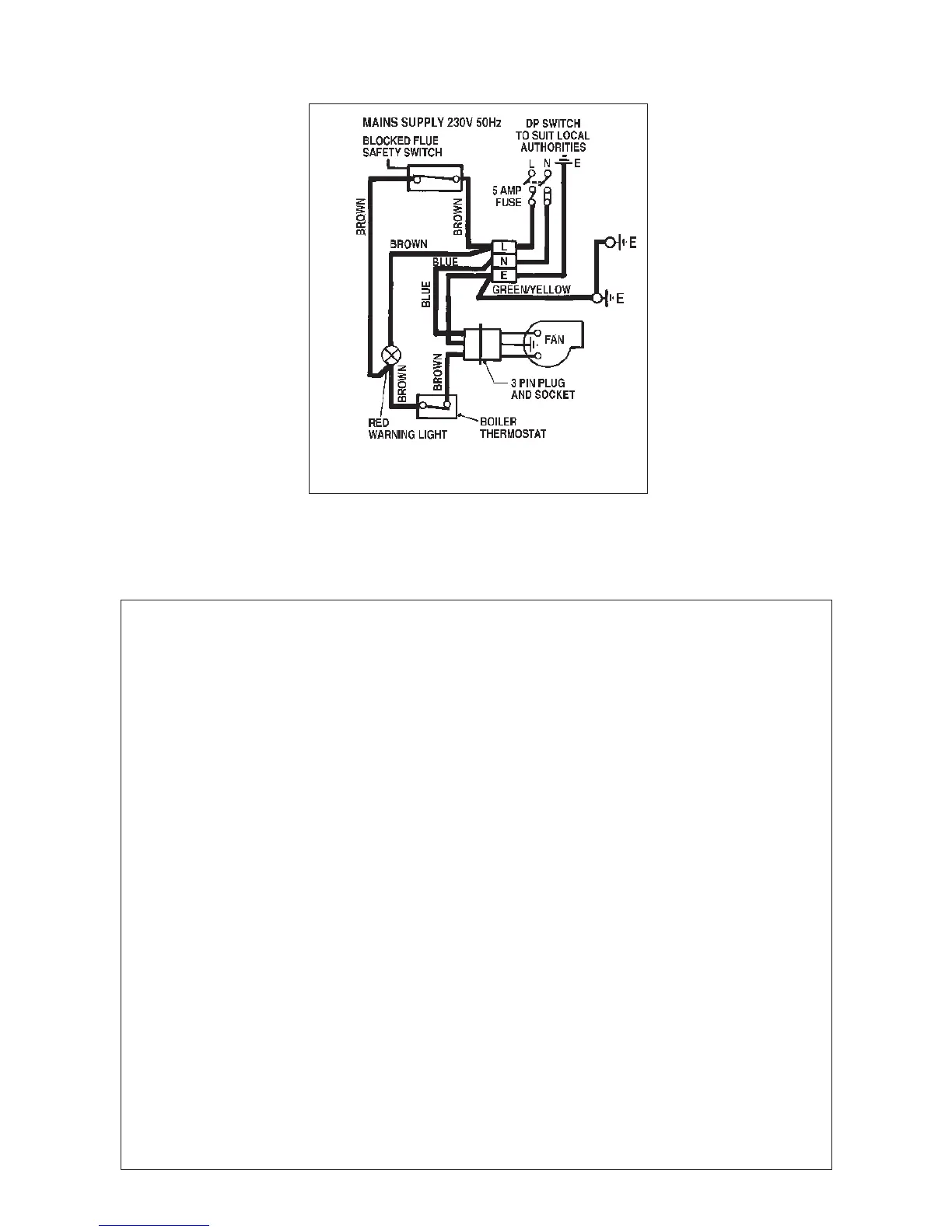

WIRING DIAGRAM -
BLOCKED FLUE SAFETY SWITCH FITTED
