Instinct
Application Guide
9
Instinct 1 Pump ConfigurationInstinct 1 Pump Configuration
Heat CallHeat Call Boiler PumpBoiler Pump CH1 PumpCH1 Pump CH2 PumpCH2 Pump DHW PumpDHW Pump
CH1CH1 ONON ONON OFFOFF OFFOFF
CH2CH2 ONON OFFOFF ONON OFFOFF
DHWDHW ONON OFFOFF OFFOFF ONON

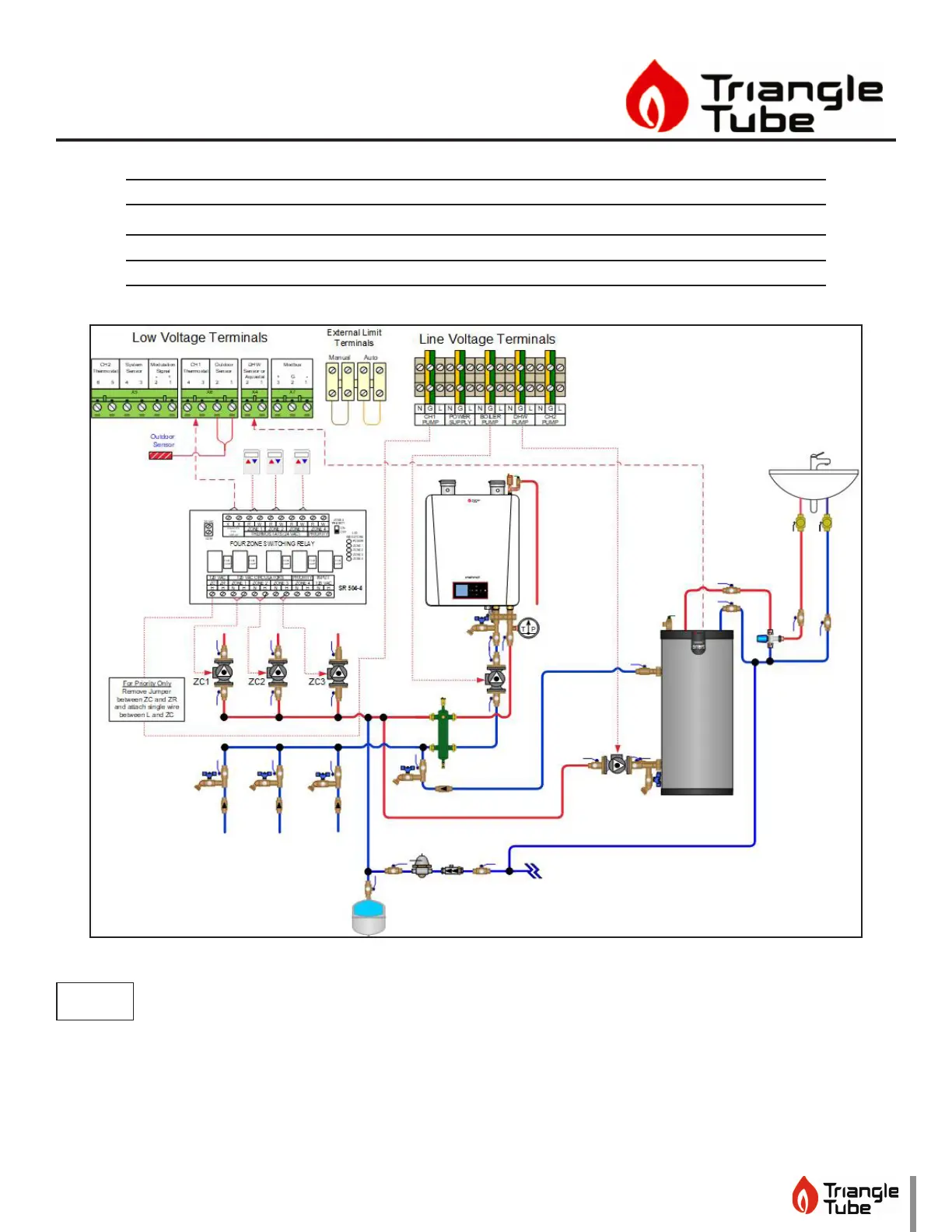

Fig. 19: Instinct Solo - Multiple Zones with Circulators
NOTICE
Piping layout is shown with a Hydraulic Separator. Closely spaced tees and an air separator can be used as shown in Fig. 17
on page 8.
Layout is shown with separate Circulator and check valve. If using a circulator with internal check valve, the corresponding
check valve is unnecessary.
