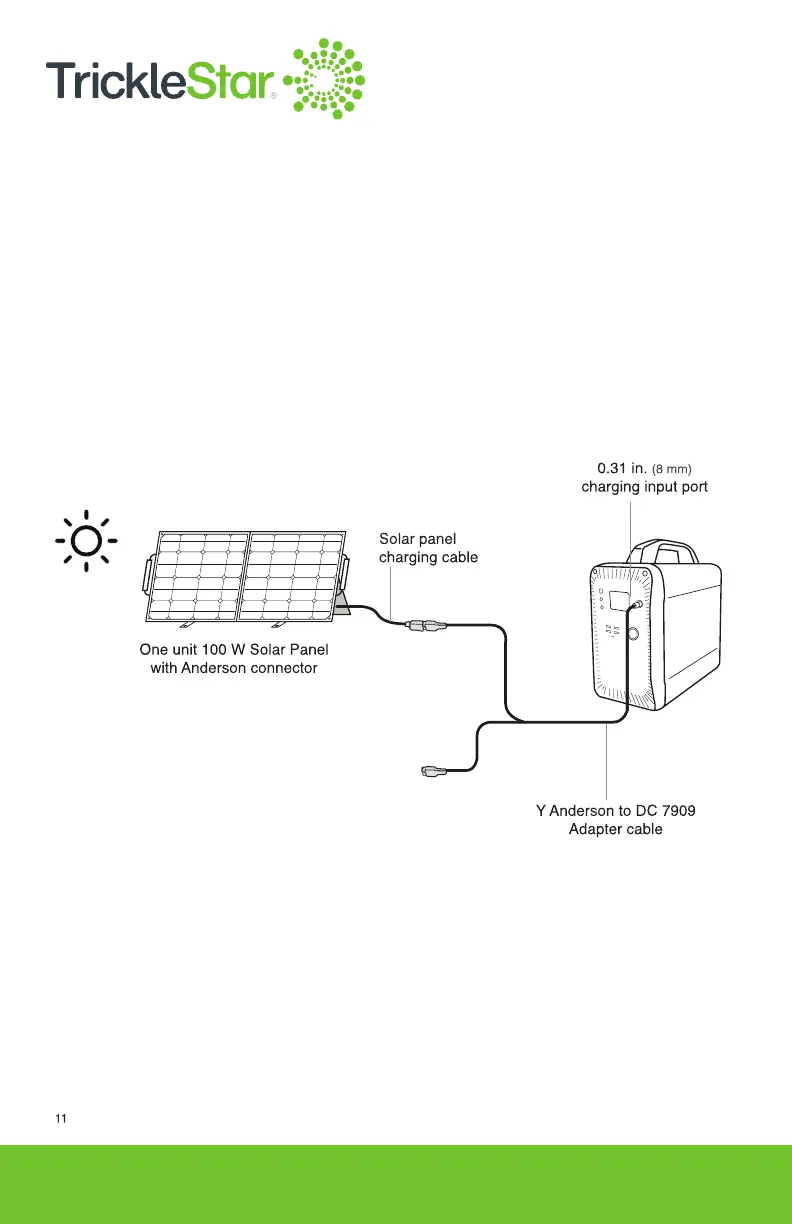

To charge your PowerStation1500 with only one unit of Solar Panel, place your Solar
Panel where it can get as much sunlight as possible. You may use the supplied nails
to secure your Solar Panel in case the weather condition is too windy. Plug in one of
the two Anderson connector from the supplied Y Anderson to DC 7909 Adapter cable
to the connecting cable at the Solar Panel. Then, insert the DC 7909 connector on
the other end of the adapter cable into the 0.31 in. (8 mm) charging input port at the
PowerStation1500.
The display screen would light up and the charging power would be displayed. The
PowerStation1500 is fully charged when all the battery segments stopped flashing
and remained solid.
2. Charging from one unit of 100 W Portable Solar Panel
