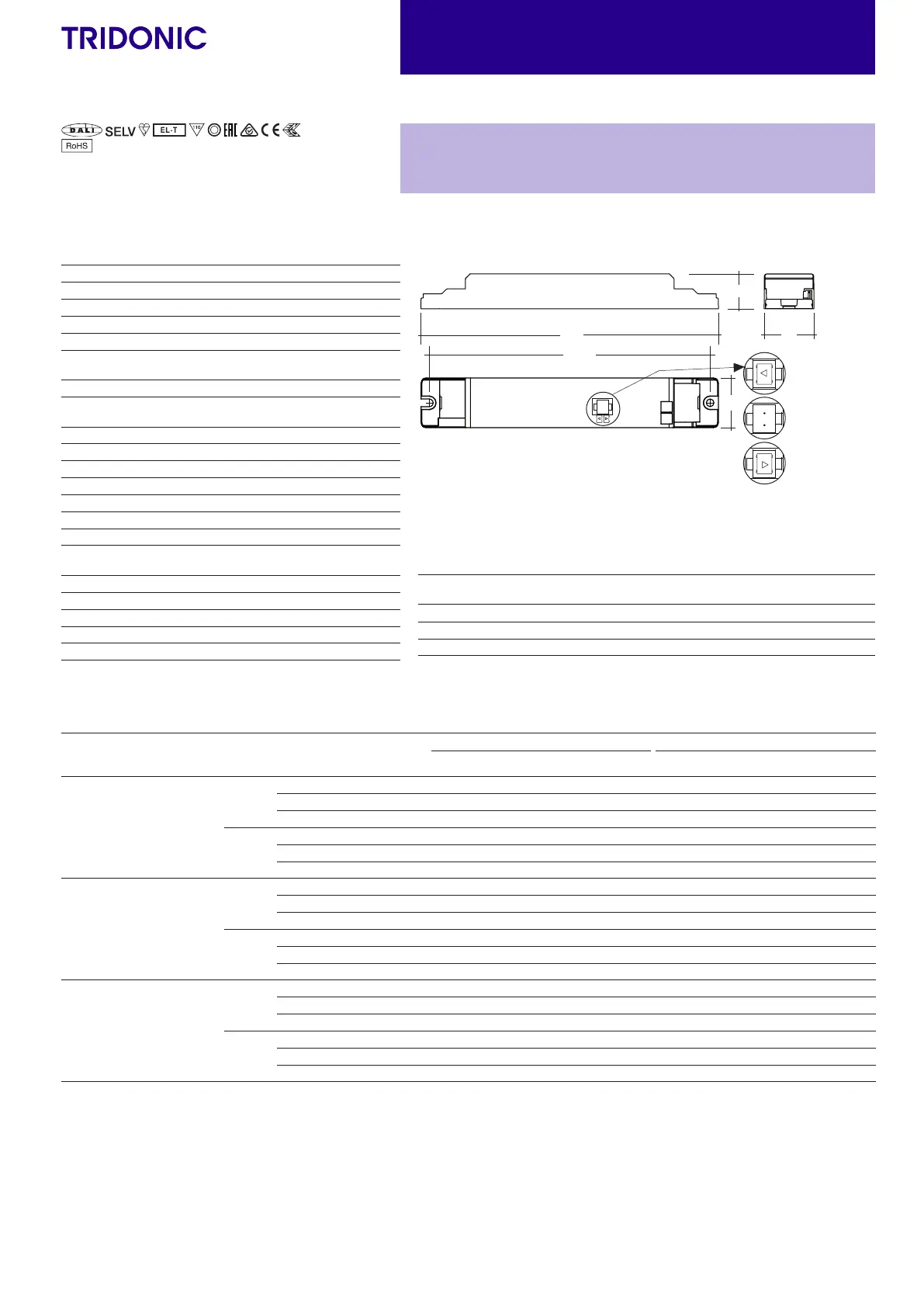

Tridonic PRO Series - PRO Series

www.tridonic.com
2
Subject to change without notice. Information provided without guarantee.
Data sheet 10/20-EM091-6
Emergency lighting units
EM converterLED
Technical data
Rated supply voltage 220 – 240 V
AC voltage range 198 – 264 V
Mains frequency 50 / 60 Hz
LED module forward voltage range 10 – 54 V
Output current see chapter 5.3
Starting time < 0.5 s from detection of emergency
event
Overvoltage protection 320 V (for 48 h)
U-OUT (including open- / short-circuit and
double load)
60 V
Max. open circuit voltage 60 V
Ambient temperature range ta -25 ... +55 °C
Max. casing temperature tc 80 °C
Mains voltage changeover threshold according to EN 60598-2-22
Mains surge capability (between L – N) 1 kV
Mains surge capability (between L/N – PE) 2 kV
Type of protection IP20
Rest mode max. number of emergency
units
100
Rest mode max. wiring distance 1,000 m
Functional test Weekly 5s test
Duration test Yearly 1 h / 2 h / 3 h test
Life-time up to 100,000 h
Dimensions LxWxH 179 x 30 x 21 mm
EM converterLED PRO MH/LiFePO4 50 V
PRO series
30
21
30
179
169.2
Position A
3 h
No duration
link 2 h
Position B
1 h
Note: LED Driver supplied with duration link in 3 hours position. Duration link must be set
before battery and mains connection.
Ordering data
Type
1
Article
number
Rated
duration
Packaging,
carton
Packaging,
pallet
Weight
per pc.
EM converterLED PRO 202 MH/LiFePO4 50V  1/2/3 h 10 pc(s). 1,600 pc(s).0.07 kg
EM converterLED PRO 203 MH/LiFePO4 50V  1/2/3 h 10 pc(s). 1,600 pc(s).0.07 kg
EM converterLED PRO 204 MH/LiFePO4 50V  1/2/3 h 10 pc(s). 1,600 pc(s).0.07 kg
Test switch EM3
ACCES-
SORIES
Ordering data
Type Article number
Packaging,
bag
Packaging,
carton
Weight
per pc.
Test switch EM 3  25 pc(s). 200 pc(s). 0.013 kg
Status indication bi-colour LED
ACCES-
SORIES
Specific technical data
Type
Battery
technology
Rated
duration
Typ. λ
(at 230 V,
50 Hz)
Typ. output
power
P emergency
Mains current in charging operation Rated power in charging operation
Initial charge Fast recharge
Trickle charge
2
Initial charge Fast recharge
Trickle charge
2
EM converterLED PRO 202
MH/LiFePO4 50V
NiMH
1 h 0.65C 1.5 W 15 mA 16 mA 15 / 11 mA 1.9 W 2.2 W 1.9 / 1.4 W
2 h 0.65C 1.5 W 19 mA 19 mA 19 / 11 mA 2.6 W 2.6 W 2.6 / 1.4 W
3 h 0.65C 1.5 W 19 mA 19 mA 19 / 11 mA 2.6 W 2.6 W 2.6 / 1.4 W
LiFePO
4
1 h 0.65C 1.5 W 15 mA 15 mA 15 / 11 mA 2 .1 W 2.1 W 2.1 / 1.4 W
2 h 0.65C 1.5 W 19 mA 19 mA 19 / 11 mA 2.8 W 2.8 W 2.8 / 1.4 W
3 h 0.65C 1.5 W 19 mA 19 mA 19 / 11 mA 2.8 W 2.8 W 2.8 / 1.4 W
EM converterLED PRO 203
MH/LiFePO4 50V
NiMH
1 h 0.7C 2.5 W 16 mA 18 mA 16 / 11 mA 2 .1 W 2.6 W 2.1 / 1.4 W
2 h 0.7C 2.5 W 20 mA 20 mA 20 / 11 mA 3.1 W 3.1 W 3.1 / 1.4 W
3 h 0.7C 2.5 W 20 mA 20 mA 20 / 11 mA 3.1 W 3.1 W 3.1 / 1.4 W
LiFePO
4
1 h 0.7C 2.5 W 19 mA 19 mA 19 / 11 mA 2.8 W 2.8 W 2.8 / 1.4 W
2 h 0.7C 2.5 W 24 mA 24 mA 24 / 11 mA 3.8 W 3.8 W 3.8 / 1.4 W
3 h 0.7C 2.5 W 24 mA 24 mA 24 / 11mA 3.8 W 3.8 W 3.8 / 1.4 W
EM converterLED PRO 204
MH/LiFePO4 50V
NiMH
1 h 0.7C 3.5 W 17 mA 20 mA 17 / 11 mA 2.3 W 2.9 W 2.3 / 1.4 W
2 h 0.7C 3.5 W 23 mA 23 mA 23 / 11 mA 3.6 W 3.6 W 3.6 / 1.4 W
3 h 0.7C 3.5 W 23 mA 23 mA 23 / 11 mA 3.6 W 3.6 W 3.6 / 1.4 W
LiFePO
4
1 h 0.7C 3.5 W 19 mA 19 mA 19 / 11 mA 2.8 W 2.8 W 2.8 / 1.4 W
2 h 0.7C 3.5 W 24 mA 24 mA 24 / 11 mA 3.8 W 3.8 W 3.8 / 1.4 W
3 h 0.7C 3.5 W 24 mA 24 mA 24 / 11 mA 3.8 W 3.8 W 3.8 / 1.4 W
1
EM = Emergency
2
In case of NiMH batteries: Intermittent charge is used. Value 1 is for 4 min. charge on / Value 2 is for 16 min. charge o. In case of LiFePO
4
batteries voltage dependent constant current charging is used.
