If you are using this manual as a programming guide
after the initial installation, you may find the TABLE OF
CONTENTS useful in locating the particular
programming procedure you need.
This manual contains all the information required to
install and program the TRIGON HF-2. If you are using
this manual to install this unit, it is very important to
read all the sections in order.
You should read these instructions before you begin
installation. This will insure that everything is done
efficiently.
The TELALARM HF-2 Two Button is a multi-number
auto dialer. Upon pressing the 'Information' button,
the HF-2 dials a programmed telephone number. If the
number dialed is busy or does not answer, the HF-2
will hang up and dial the second programmed number.
If the last programmed number is busy or does not
answer, the HF-2 will rollover and start the dialing
process again with the first phone number.
Upon pressing the 'Help' button, the HF-2 dials the first
programmed telephone number. If the number dialed
is busy or does not answer, the HF-2 will hang up and
dial the second programmed telephone number. If
unanswered the HF-2 will continue dialing up to five
numbers.
The HF-2 comes standard with one output relay. This
relay is programmed to stay latched on for the duration
of a "HELP" call in order to operate a remote strobe
light.
A Site I.D. code feature provides for unit identification.
The Site I.D. code is a programmable four digit code
that is transmitted by the HF-2 when it receives a
command from the called party. This code, when
interpreted by a Trigon DTMF Decoder, will identify
the calling unit.

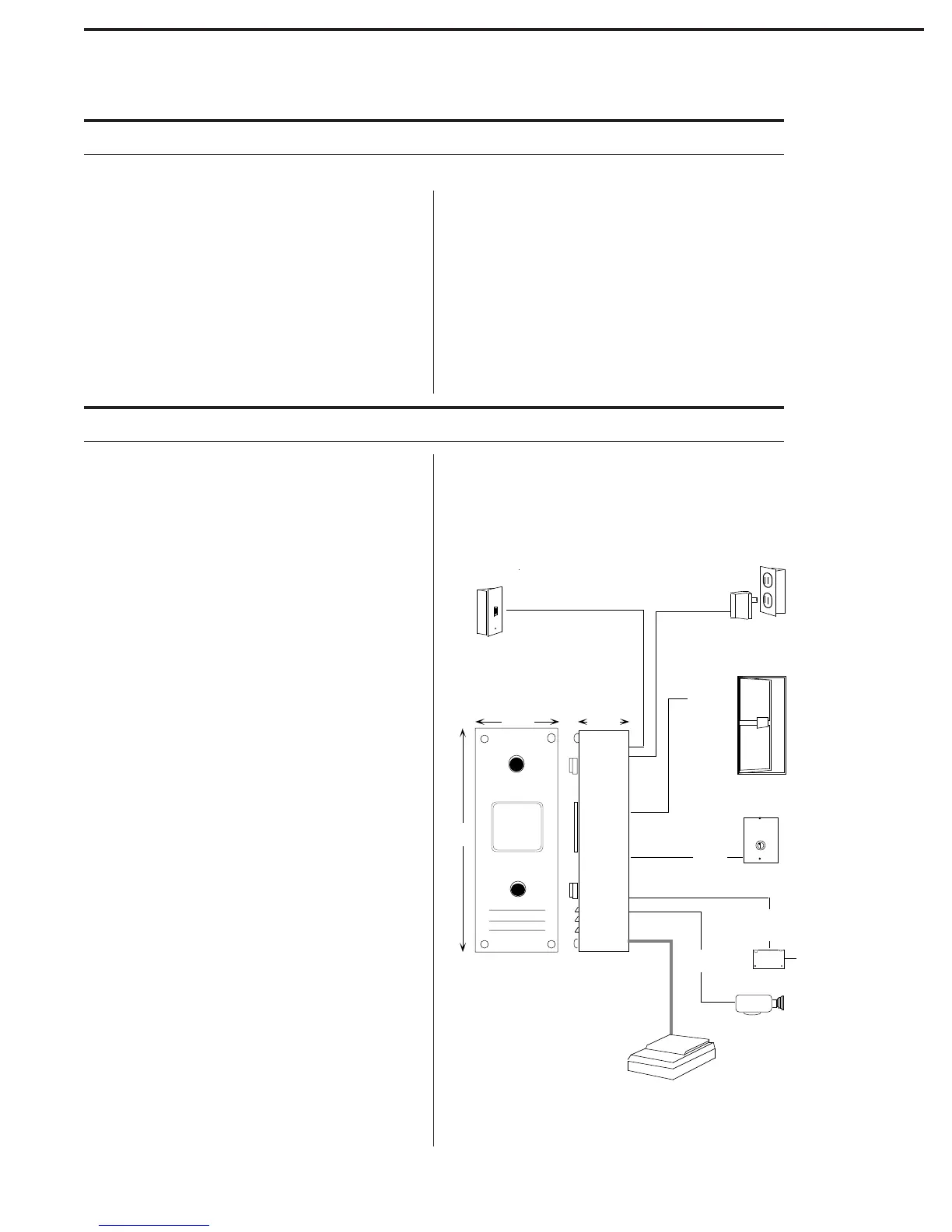

Figure 1
TRIGON
TRIGON ELECTRONICS
ORANGE CA.
INFO
HF-2
12"
4.2" 2.0"
Telephone Line-
Voice Grade 24 to 48V
22 AWG; Shielded
or Twisted,2 Conductor
Camera, Door or Gate
Secondary
Relay
Serial Printer
(18 AWG; Shielded, 3 Conductor)
Postal
Lock
Box
Primary
Output
Relay
Main Entrance
Power Cabling -
Shielded or Twisted,
2 Conductor,
18AWG up to 250'
16AWG up to 500'
Alarm
Shunt
Relay
HELP
