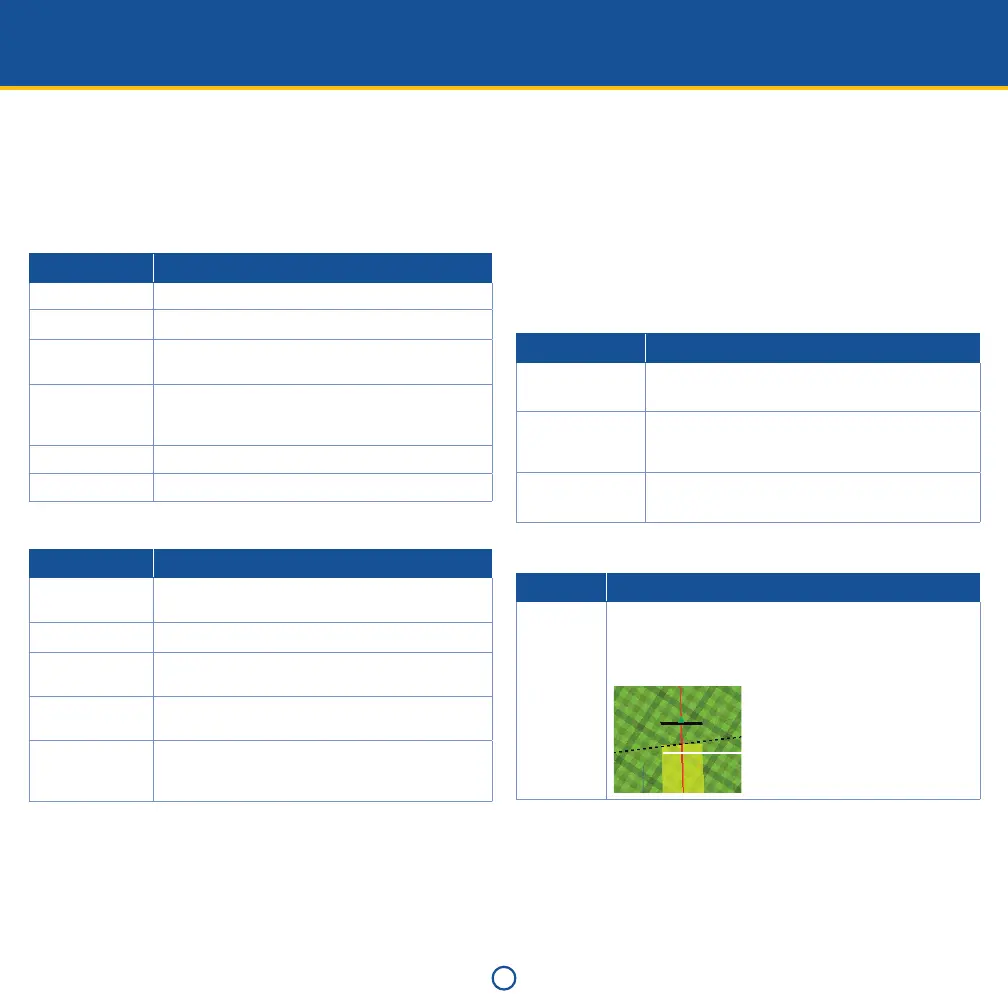

MATERIAL SETUP
1. In the Application Control screen, tap Material Setup.
2. Tap New Material.
3. Select Material Type.
4. Enter a Name for the material.
5. Set the Application Rates. The options are:
Select Description
Target Rate 1 Preset rate for position 1 on the rate switch.
Target Rate 2 Preset rate for position 2 on the rate switch.
Target Rate
Increment
Rate increase/decrease when the rate adjustment
switch is clicked once.
Manual Rate
Increment
Value increase/decrease when the increment switch
is clicked when the rate switch is in the manual
position.
Minimum Rate Minimum rate that can be applied.
Maximum Rate Maximum rate that can be applied.
6. Complete the Operation Setup. The options are:
Select Description
Jump Start Speed The speed the control system will use when the
switch is in this position.
Shutoff Speed The speed at which the system will shut down.
Minimum
Override Speed
If the speed is below this value, the control system
will act as if it is still at this speed.
Apply Latency to
Boundary
If yes, the latency values apply to field boundary and
exclusion zones.
Rate Snap When on, if the Applied Rate is within 10% of the
Target Rate the Applied Rate is displayed as the
same value of the Target Rate.
1. In the Application Control screen, tap Control Setup.
2. If this is the first time you are setting up a control, tap Unassigned.
3. Enter a location name.
4. For Material Assignment, select the material set up previously.
5. For Material Control, indicate if you are using switch boxes or the
display only.
6. Set up Section Control.
a. If you select On, enter the number of modules for this location
and select the module serial number(s). The options are:
Select Description
Number of
Sections
Number of sections assigned to the module
Control Type The Boom Valve where the section control module
sends power to the section valve to turn the clutch
on is the most common for sprayers.
Turn Off When
Stopped
If yes, the sections turn off when stopped.
b. If required, set up additional section control operations. The
options are:
Select Description
Latency On: Length of time between when the command to turn
sections on and application actually begins.
Off: Length of time between when the command to turn
sections off and application actually ends.
Latency
Command given to turn off
