EZ-Guide 500 System Cabling Guide 27

Connecting to an EZ-Steer System 4

EZ-Steer 500 system / EZ-Boom controller

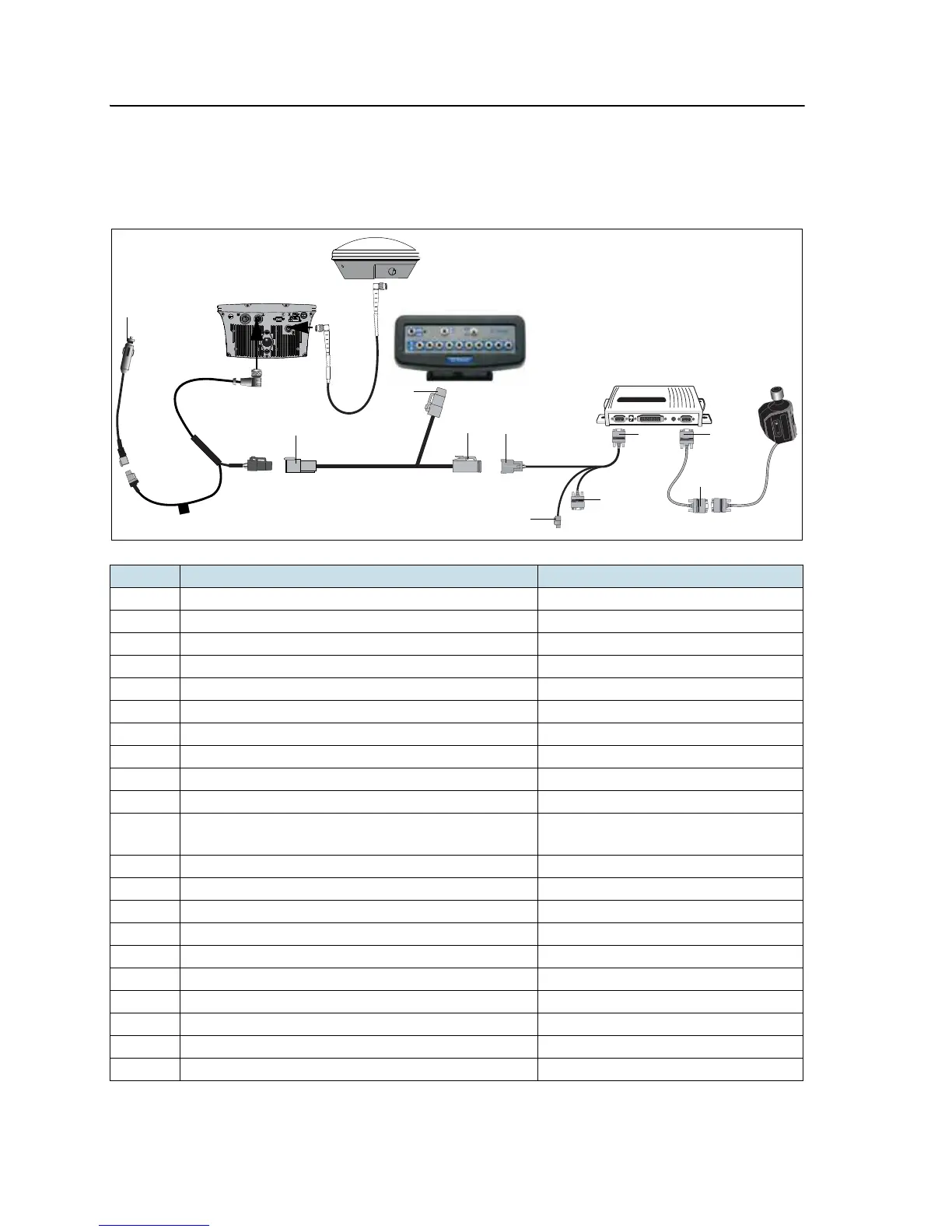

This figure shows how to connect the EZ-Steer 500 system to the EZ-Boom 2010

system:

Item Description Part number

A EZ-Boom controller –

B EZ-Steer controller –

C EZ-Steer motor 53058-00

D EZ-Steer motor cable 62257

E EZ-Steer extension cable 62974

F EZ-Boom cable 61437

G Power cable 62817

H Power connector cable 62818

I EZ-Guide 500 lightbar 66100-xx

J GPS antenna cable 50449

K GPS antenna 60600-02 (DGPS)

77038-00 (OmniSTAR/RTK)

1 “P2” connector –

2 “P1” connector –

3 “R2” connector –

4 Laptop connector (for firmware upgrade) –

5 Alternate power connector –

6 “S1” connector –

7 “P3“connector –

8 “P1“connector –

9 “S3“connector –

10 To power –
