EZ-Steer 500 system / EZ-Boom system / SNB900 RTK Radio

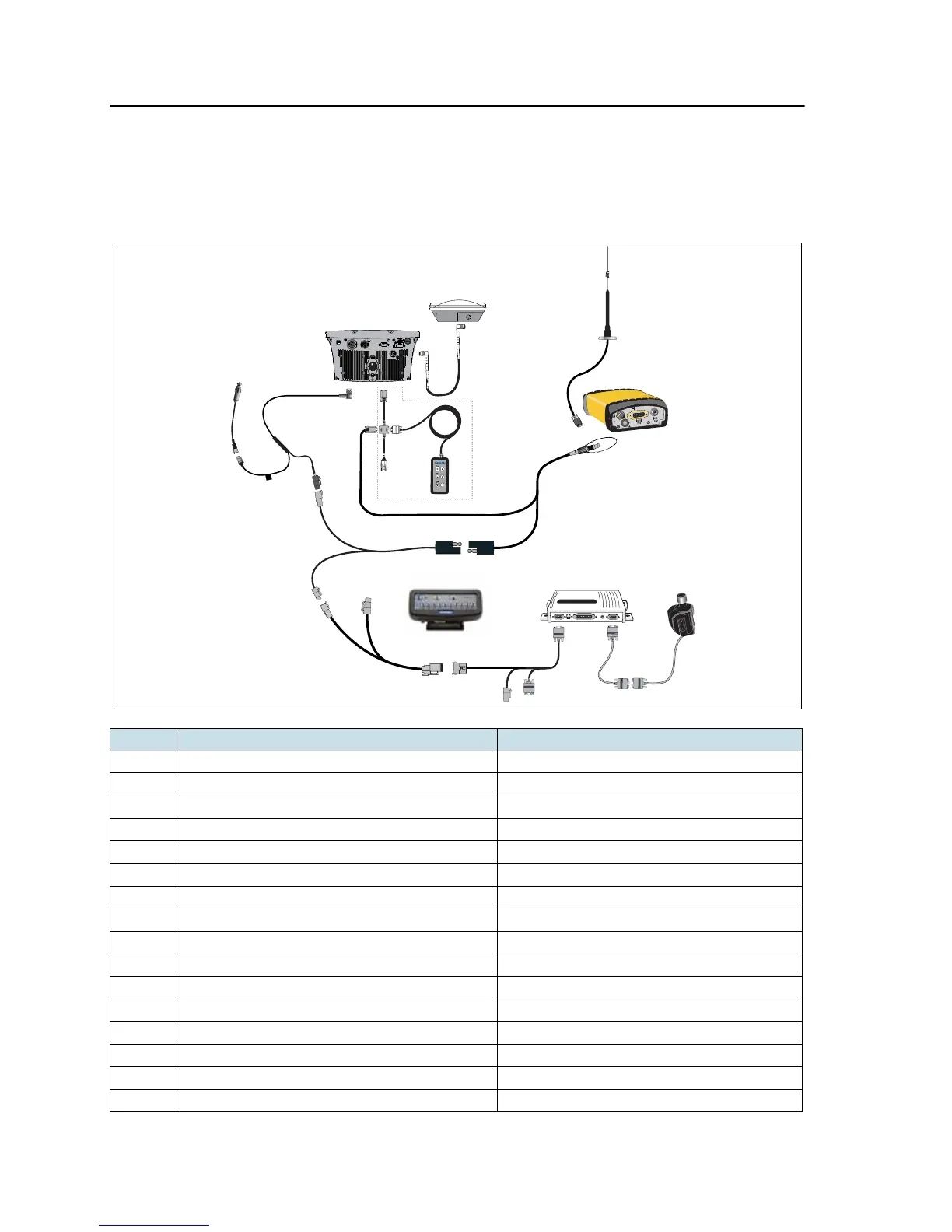

This figure shows how to connect the EZ-Boom system to an EZ-Steer 500 system
using an SNB900 RTK radio for corrections:
Item Description Part number
A GPS antenna 77038-00
B GPS antenna cable 50449
C Remote keypad (optional) 66030-00
D External interface cable 62749
E EZ-Boom controller -
F EZ-Steer controller -
G EZ-Steer motor 53058-00
H EZ-Steer motor cable 62257
I EZ-Steer extension cable 62974
J EZ-Boom cable 61437
K SNB900 power tap to EZ-Guide 500 63185
L SNB900 radio 68480-90-XX
M SNB900 radio antenna magnet mount 62109
N Power cable 62817
O Power connector cable 62818
P EZ-Guide 500 lightbar 66100-xx
