EZ-Guide 500 System Cabling Guide 71
Accessory Connections 8

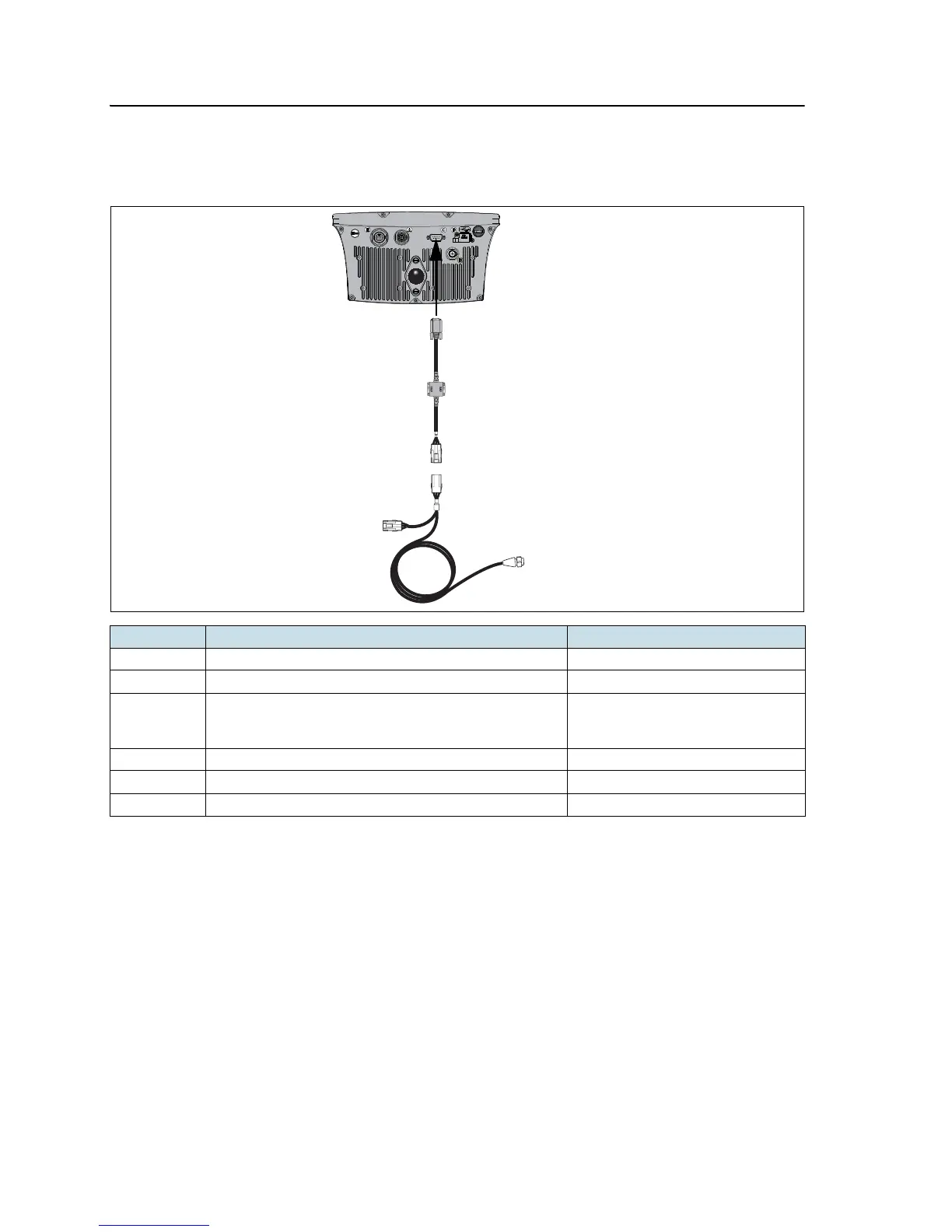

EZ-Guide 500 system with radar cable
This figure shows how to connect a radar cable to the EZ-Guide 500 lightbar:
Item Description Part number
A EZ-Guide 500 lightbar 66100-xx
B External interface cable 62749
C Radar cable 54805-00 (Raven) or
54806-00 (Midtech) or
54807-00 (Hinniker)
1 Female WeatherPack connector –
2 Connection to radar gun –
3 Spare male WeatherPack connector –
1
B
A
2
C
3
