8 Accessory Connections
74 EZ-Guide 500 System Cabling Guide
Preparing the EZ-Guide 500 CAN 2 port connection cable
(P/N 63075)
The EZ-Guide 500 CAN 2 port connection cable (P/N 63075) connects to the 19-pin
cable (P/N 62609) to add a second CAN port for the EZ-Guide 500 lightbar guidance
system.
Insert the contacts on cable P/N 63075 into the port 2 mating connector as follows:
1. Identify port 2 on cable P/N 62609. It is the gray 12-pin Deutsch connector.
2. Unplug the gray Deutsch DTM06-12S dust cover.
3. Pull out the connector wedgelock with a pair of needlenose pliers. The
wedgelock is the piece of orange plastic with 4 square holes.
4. On the other side of the dust cover, remove the sealing pins from cavity 1 and
cavity 2.
5. Insert the following wires through the silicone seal and into the specified
cavities:
6. Replace the wedgelock.

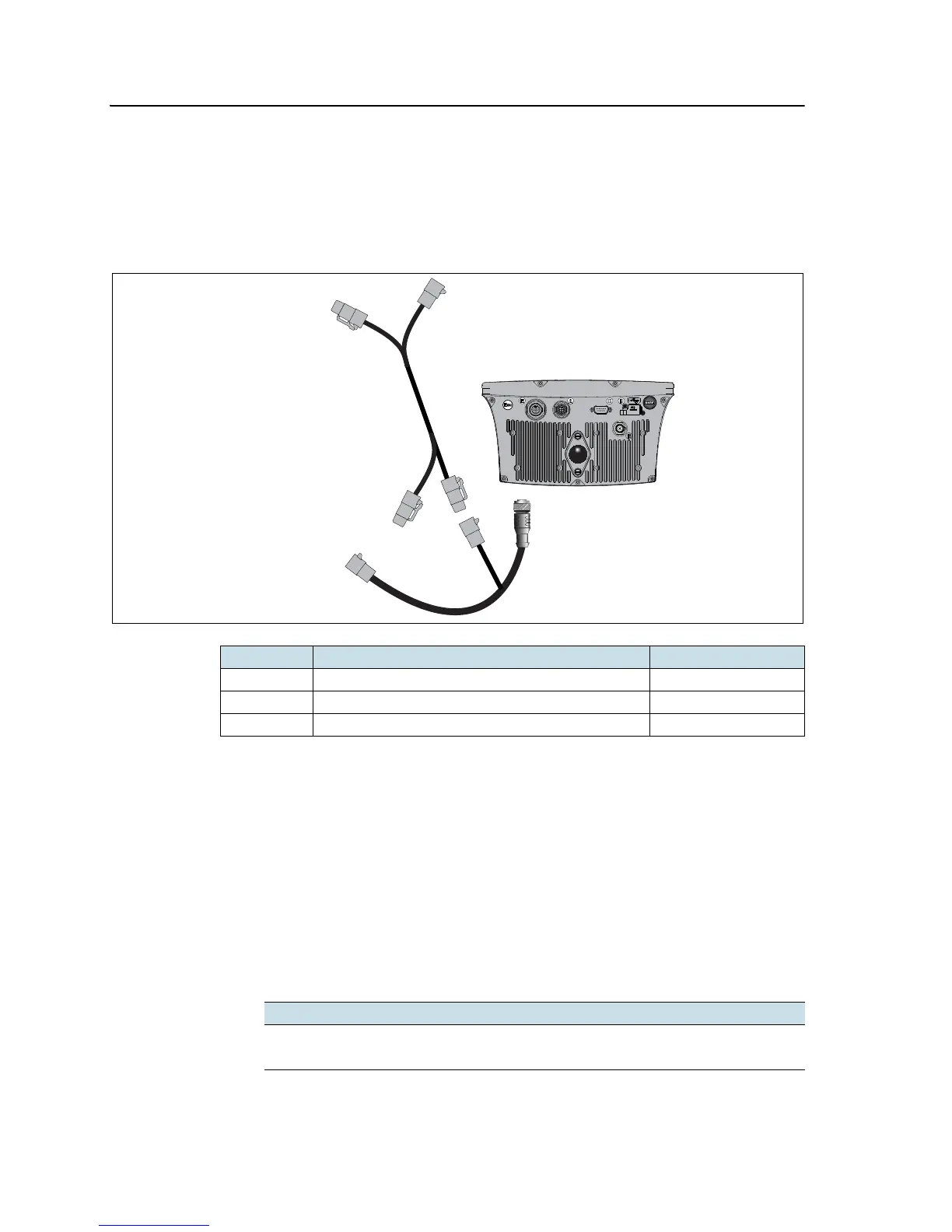

Item Description Part number
A EZ-Guide 500 lightbar 66100-xx
B Port expansion cable 62609
C EZ-Guide 500 CAN 2 port connection cable 63075
Connector Cavity
CAN_H (yellow wire) 1
CAN_L 2
