2 Overview of the Trimble M3 Total Station
18 Trimble M3 Total Station User Guide
c. To return to the 4-switch window, press [<]
or [>].
4. Press
[ESC] to close the 4-switch window.
20.1 Status bar

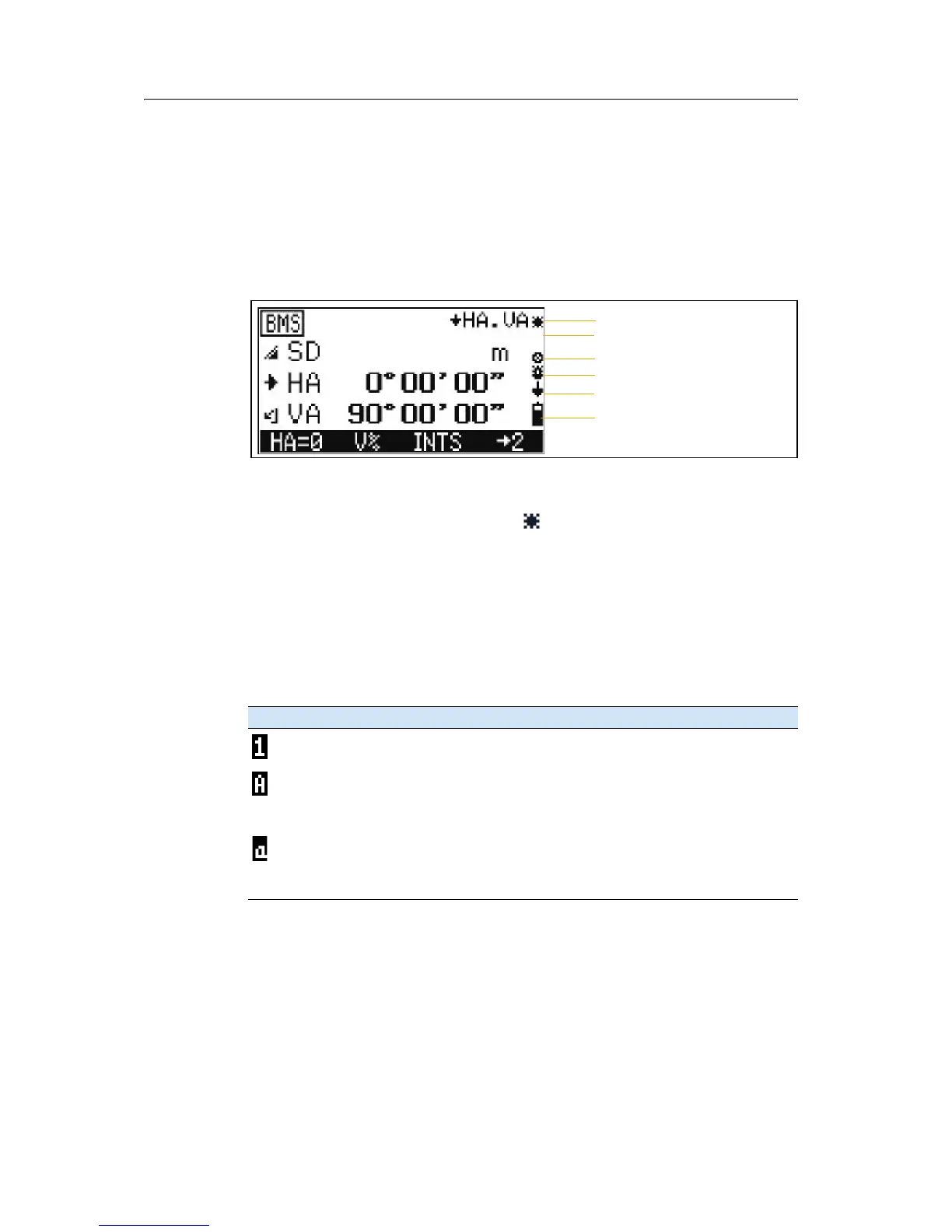

The status bar appears on the right side of every screen. It contains indicators that
reflect the status of various system functions:
Laser pointer indicator
When the laser pointer is on, the indicator appears. When the laser pointer is off,
no indicator appears.
The laser pointer indicator appears when the measurement is made in the direct-reflex
mode. In this condition, the laser class is 3R.
Input mode indicator
The input mode indicator only appears when you are entering points or coordinates. It
shows the following data input mode:
Indicator Input mode
Input mode is numeric. Press a key on the number pad to enter the number
printed on the key.
Input mode is alphabetic (capital letters). Press a key on the number pad to
enter the first letter printed above the key. Press the key repeatedly to cycle
through all the letters assigned to the key. For instance, to enter the capital
letter O in alphabetic mode, press
[6] three times.
Input mode is alphabetic (lower case). Press a key on the number pad to enter
the first letter printed above the key. Press the key repeatedly to cycle through
all the letters assigned to the key. For instance, to enter the lower case letter o
in alphabetic mode, press
[6] three times.
Laser pointer indicator
Input mode indicator
DR/PR mode indicator
Backlight on indicator
Battery level indicator
Compensator indicator
