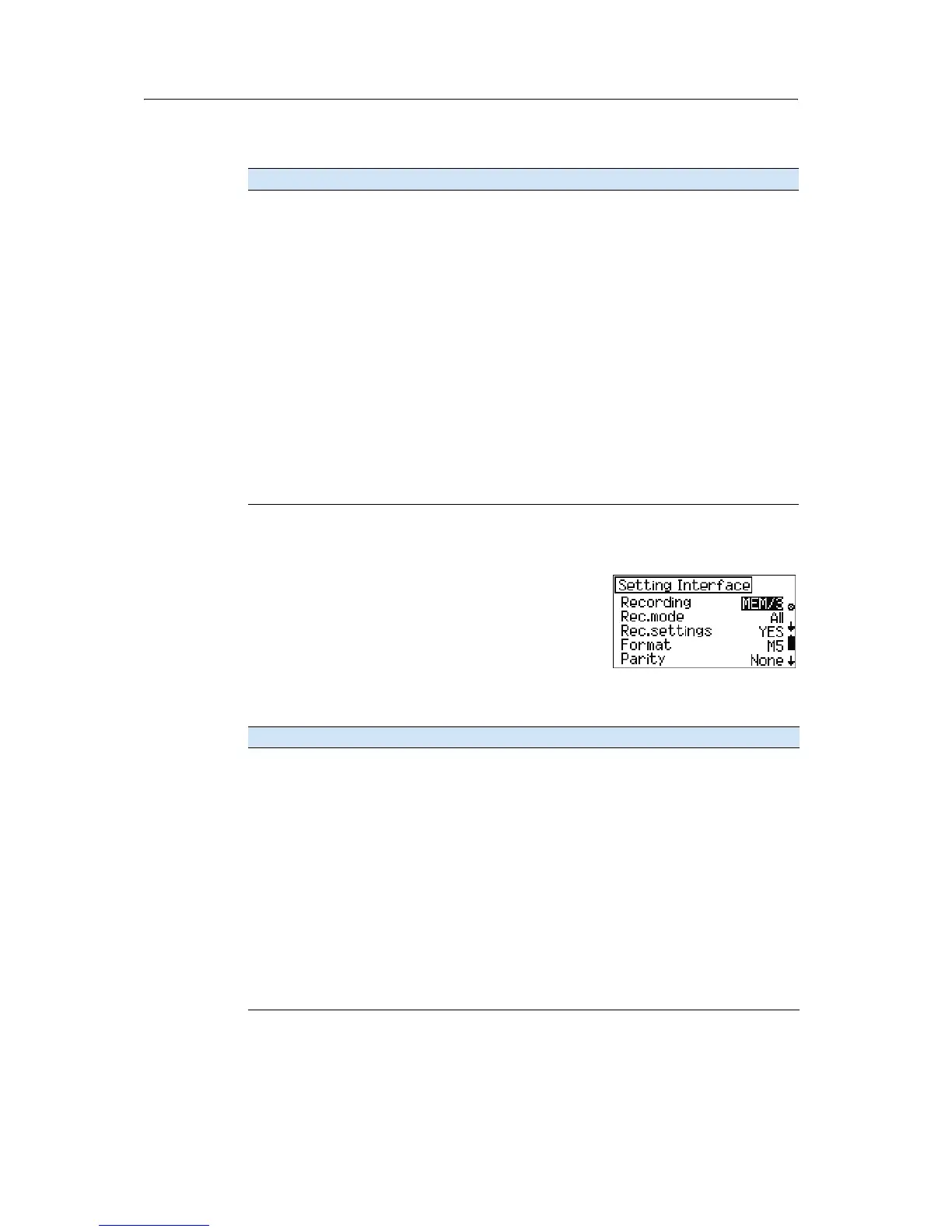

The miscellaneous settings are:
30.1 Configuring data recording and external communication settings
1. Press [MENU] [6] Settings Interface to set
up data recording/transfer related settings.
To move from one line to the next, press
[v].
2. To change the settings in each line, press
[<] or [>]
and then press
[MEAS/ENT] to confirm the change.
The setting options are:
Options
P Input 123
ABC
abc
C Input 123
ABC
abc
Note – P Input and C Input are the settings used to define the
default input mode when you enter a point number or name
(P Input) and point code (C Input). For example, if you often use a
point name such as K-101 or T3, you can change the setting to start
entering the point name in alphabetic mode.
S-O Add PT 0 - 999999 (numeric input)
Note – This field is a setting for recoding a point in stakeout
functions. It is used to specify an integer that is added to the point
number being staked to generate a new number for recording the
staked point. The default value is 0. For example, when you stake
out PT3 with an Add Constant of 1000, the default number for
stakeout recording is PT1003.
Options
Rec. Data Type MEM/1 /2 /3 - record data to the internal memory, where:
• /1 records measured values
• /2 records computed values
• /3 records both measured and computed value
V24/1 /2 /3 - output data to external device via the RS232 interface,
where:
• /1 outputs measured values
• /2 outputs computed values
• /3 outputs both measured and computed value
OFF - no data recorded
Rec. Mode All
Confirm
Rec. Settings Yes
No
