Basic Measurement Screen 5
50.1 Intersection
Use this method to determine the intersection point of
two vertical planes.

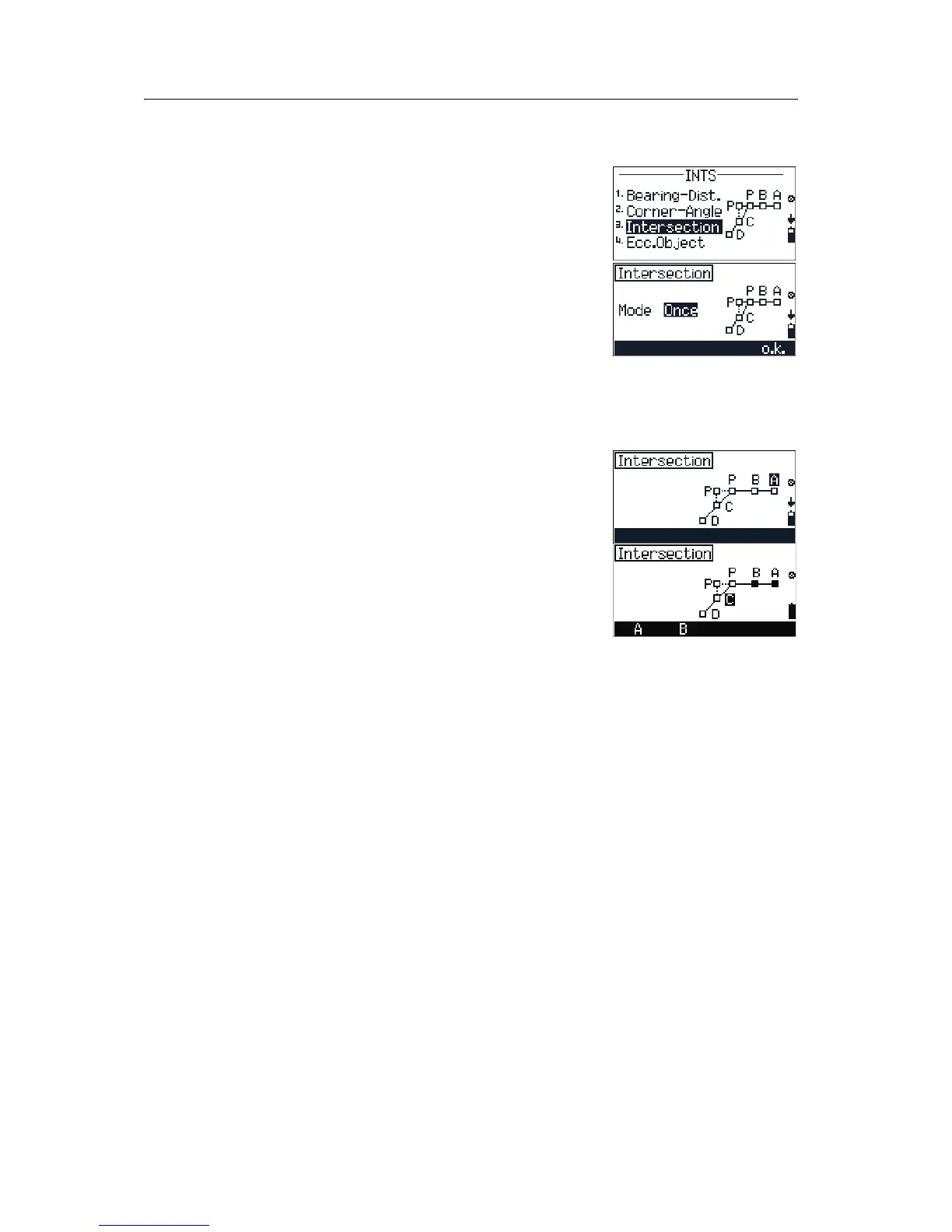

1. Press
[3] in the INTS menu to open the
Corner-Angle. screen.
2. Press
[<] or [>] to change the Mode setting. The
options are
OFF/Once/Perm.
If
Mode is set to Perm you can continue using
this offset measurement until you escape from
the function.
3. Press
[F4] o.k.
4. Sight point A (on the first wall) and press
[MEAS/ENT].
5. Sight point B (on the same wall) and press
[MEAS/ENT].
6. When you have taken two measurements, sight
point C (on another wall) and press
[MEAS/ENT].
7. If you want to repeat a measurement:
–Press
[F1] A to return to the point A
measurement screen.
–Press
[F2] B to return to the point B
measurement screen.
After you have completed your measurements,
the
BMS screen appears from which you entered
the
INTS program. The BMS screen shows the
new measurements.
