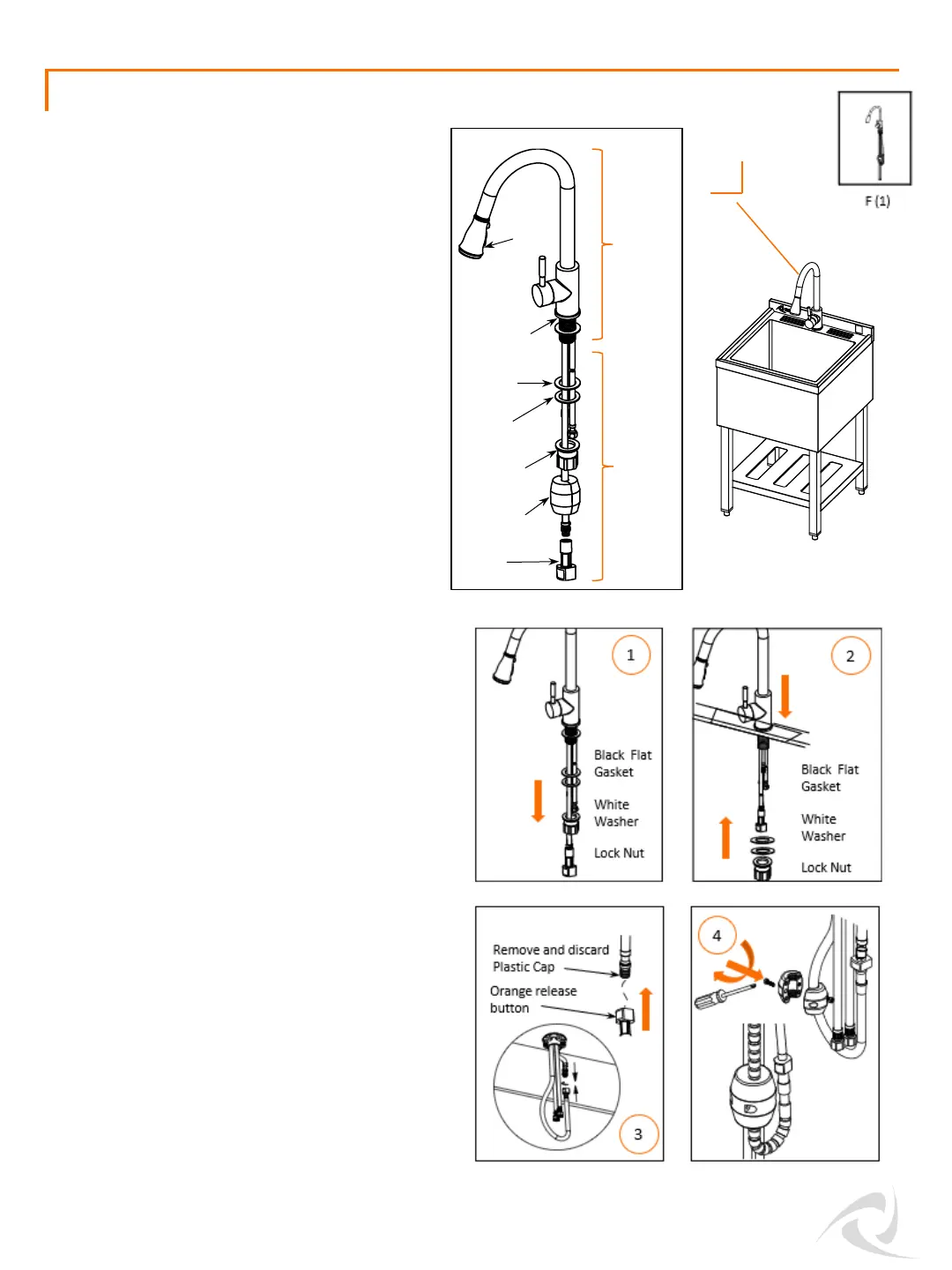

ASSEMBLY INSTRUCTIONS
STEP 4
Unscrew Lock Nut from bottom of FAUCET
ASSEMBLY (F) and remove Lock Nut, White
Washer and Black Flat Gasket.
From top side, make sure Metal Base w/
Gasket is on top of SINK (A) and all 4 hoses
are straight and untangled. Insert FAUCET
ASSEMBLY (F) through hole, first with Quick
Connector hose, then hot and cold water
supply hoses with metal fittings, finally the
short hose with plastic cap.
Once all hoses are carefully threaded through
hole and FAUCET ASSEMBLY (F) is sitting flush
on top of SINK (A), align faucet handle facing
towards front of SINK (A). From under SINK
(A), first slide on Black Flat Gasket, then White
Washer, then screw on Lock Nut. Tighten
Lock Nut as much as you can by hand. If
necessary, use a pipe wrench to tighten.
Remove and discard the Plastic Cap from
short hose and push Quick Connector to
connect two ends of hoses. You should hear a
soft click to indicate secure connection and
orange release button should return to flush
with housing. You may also give two ends of
hose a soft tug to ensure they are connected
securely.
Locate Counterweight in the box, use a
Phillips screwdriver to separate two halves of
Counterweight by unscrewing screws securing
them. Make sure Spray Head is pushed up
against the spout and pull-out hose is
dangling unhindered. Re-secure
Counterweight just above turn of pull-out
hose, on side opposite Quick Connector.
Counterweight position can be moved up to
decrease amount of Spray Head pull-out if
desired.
On top of
the sink
Under
the sink
Spray
Head
Metal Base
w/ Gasket
Black Flat
Gasket
White
Washer
Lock Nut
Counterweight
Quick
Connector
Faucet Assembly (F)
F
6
