Vacuum Tube Integrated Amplifier
10
Speaker Connection
Banana plug
Normal plugNormal plug
speaker left（）speaker left（）
speaker right（）speaker right（）
black
red
black
red
◆
◆
Check the impedance of your speakers. Attach the positive from your speaker to the 6 or
8 ohm terminals and the negative to the 0 ohm terminals separately.
If your speakers are 4 ohm it
would cause damage to the amplifier. You can attach them to the 6 ohm terminals.not
6 ohm or 8 ohm impedance speakers are preferential.
◆
◆

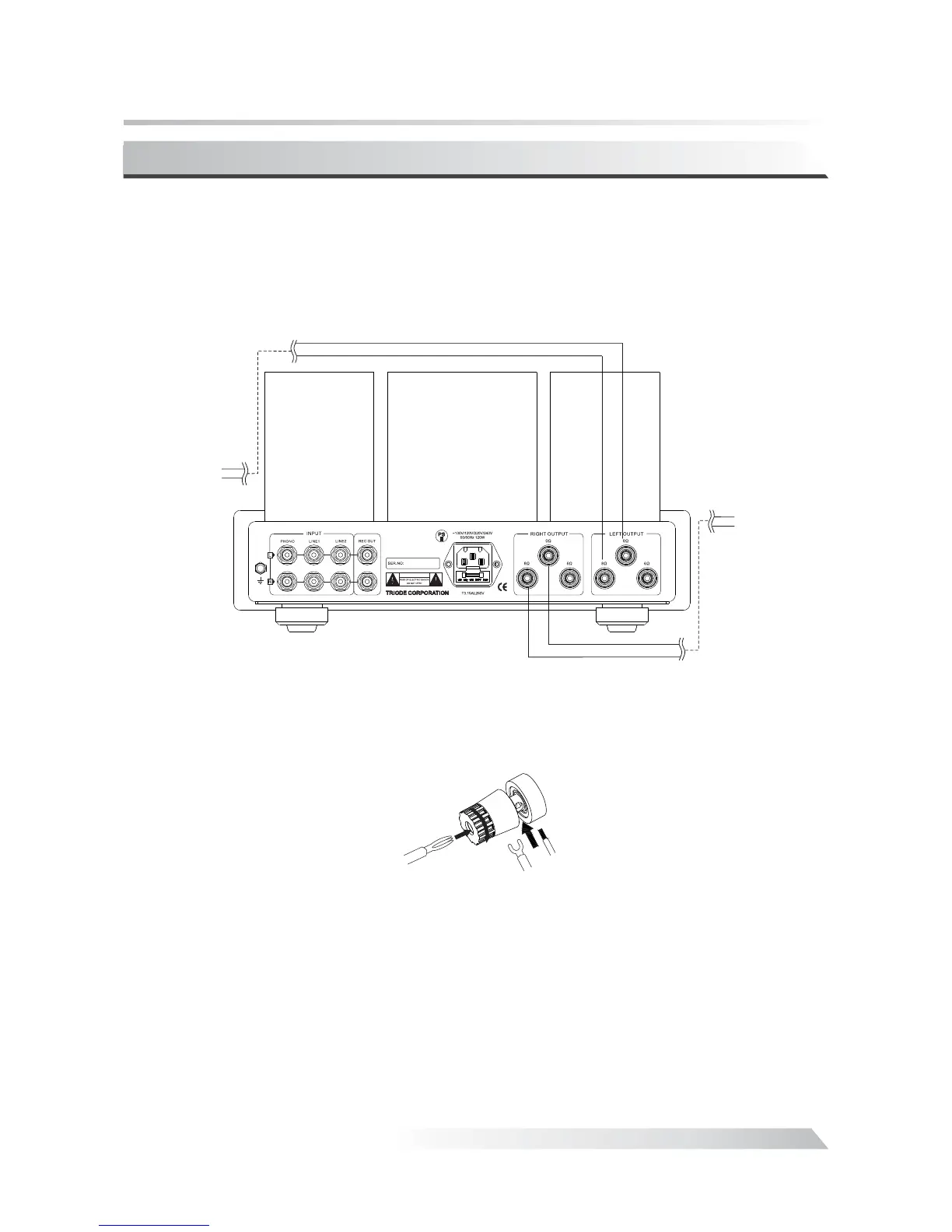

How to connect the speaker cables:
1. Unscrew the terminal knobs,
2. Insert the speaker cables,
3. Screw the terminal knobs.
Note:
Connect the speaker cables with the amplifier after it is well connected with the speakers.
Please notice the right direction indication of the cable and do not mix up the positive and the
negative end.
