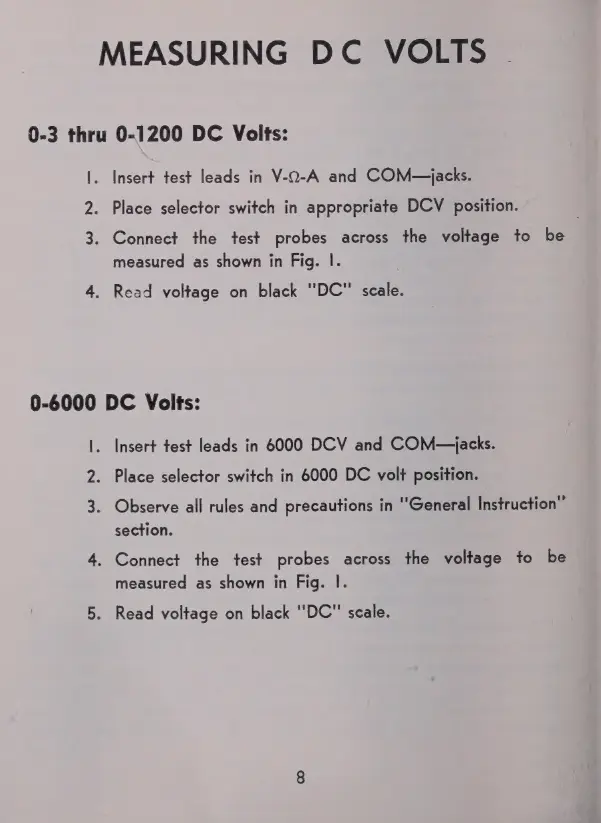

MEASURING DC VOLTS .
0-3 thru 0-1200 DC Volts:
|. Insert test leads т V-Q-A and COM—jacks.
2. Place selector switch in appropriate DCV position.
3. Connect the test probes across the voltage to be
measured as shown in Fig. 1.
4. Read voltage on black "DC" scale.
0-6000 DC Volts:
|. Insert test leads in 6000 ОСУ and COM-—-jacks.
2. Place selector switch in 6000 DC volt position.
3. Observe all rules and precautions in "General Instruction”
section.
4. Connect the test probes across the voltage to be
measured as shown in Fig. 1.
5. Read voltage on black "DC" scale.
