Triplett 630 - Measuring AC Volts; 0-3 VAC Measurement; 0-12 to 0-1200 VAC Measurement; 0-6000 VAC Measurement

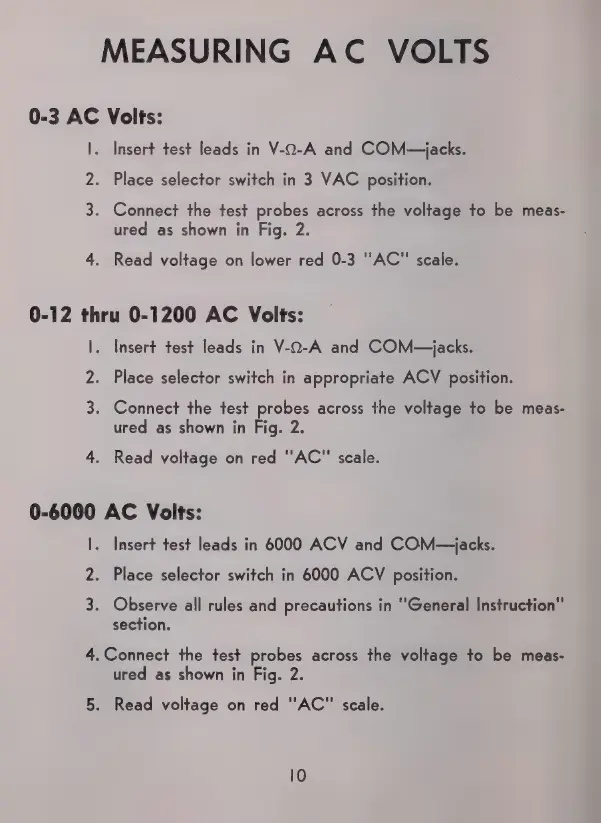

MEASURING АС VOLTS
0-3 AC Volts:
l. Insert test leads in V-Q-A and COM—jacks.
2. Place selector switch in 3 VAC position.
3. Connect the test probes across the voltage to be meas-
ured as shown in Fig. 2.
4. Read voltage on lower red 0-3 "АС" scale.
0-12 thru 0-1200 AC Volts:
l. Insert test leads in У-0-А and COM—jacks.
2. Place selector switch in appropriate ACY position.
3. Connect the test probes across the voltage to be meas-
ured as shown in Fig. 2.
4. Read voltage on red "АС" scale.
0-6000 AC Volts:
|. Insert test leads in 6000 ACV and COM—jacks.
2. Place selector switch in 6000 ACV position.
3. Observe all rules and precautions in "General Instruction"
section.
4. Connect the test probes across the voltage to be meas-
ured as shown in Fig. 2.
5. Read voltage on red "АС" scale.
