5
Installation
Note: The TX and RX units must be reset to factory default settings prior to first use.
1. With a user supplied HDMI cable (such as Tripp Lite’s P569-Series cable),
connect the Transmitter’s HDMI IN port to the source (ex. Blu-ray™ player
or laptop).
2. With a user supplied HDMI cable, connect the Receiver’s HDMI OUT port
to an HDMI-compliant display (ex. monitor).
3. Connect the included power supplies to the Transmitter and Receiver units.
A blue Power LED will illuminate on each unit to indicate sufficient power is
being supplied.
4. (Optional) If a power outlet is not available, you can power the Transmitter
and Receiver units via the Micro-B USB port (USB-A to Micro-B cables not
included).
5. When establishing a wireless connection, ensure both the Transmitter
and Receiver units are close to one another. Doing so will help create a
successful pairing.
Note: This Extender Kit operates in line-of-sight only. The Receiver and Transmitter
units will NOT transmit through walls, glass or brick. Make sure to install in an
environment where few obstacles are present.

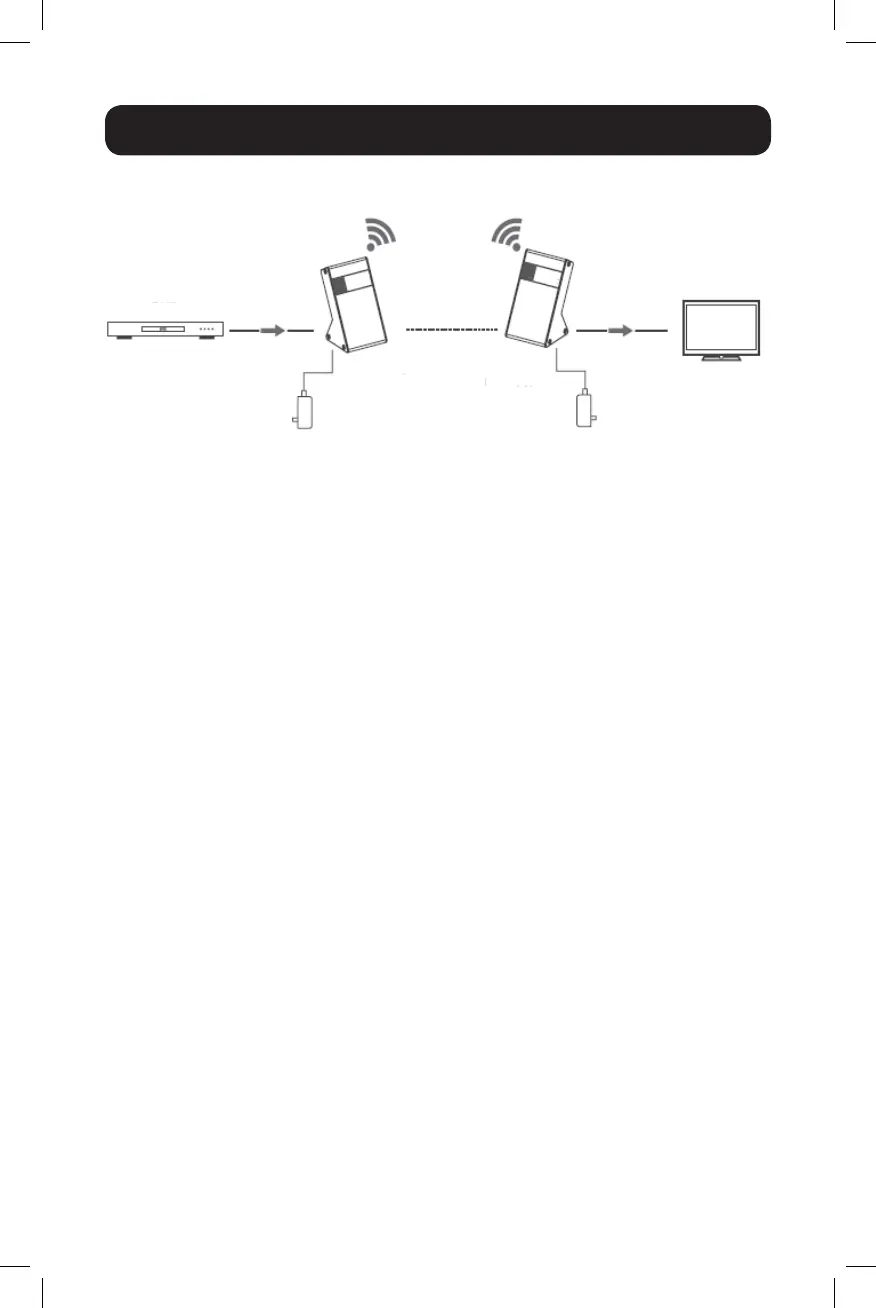

DVD
HDMI Display
HDMI Cable HDMI Cable30m
TX
RX
PowerPower
19-06-126-9339AD.indb 5 7/17/2019 11:58:48 AM
