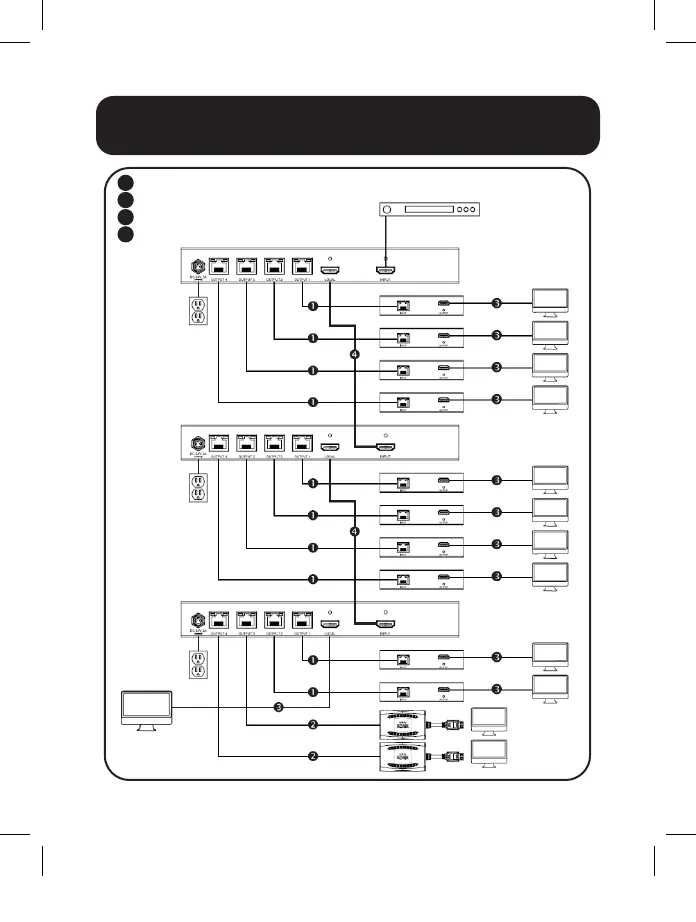

Splitter Daisy-Chain Installation
(B127-004-H and B127-008H only)
Level 1
Level 2
Level 3
OPTIONAL
LOCAL
MONITOR
HDR PLAYER
B127-004-H
B127-004-H
B127-004-H
Up to 125 ft. (38 m) Cat6 cable at 4K/60 Hz
Up to 50 ft. (15 m) Cat6 cable at 4K/60 Hz
Up to 15 ft. (4.5 m) HDMI 2.0 cable at 4K/60 Hz
Up to 6 ft. (1.8 m) HDMI 2.0 cable at 4K/60 Hz
1
3
2
4
