6
• 1U rack-mountable housing can be configured for professional, educational or personal installations
• 16 x NEMA 5-15R output receptacles
• 15-ft. AC cord with NEMA 5-15P plug
• Lighted power switch confirms power on/off status
• 15A electrical capacity with circuit breaker
• 120V AC, 50/60Hz electrical compatibility
7.1 AC Charger Unit Features
7. 16-Outlet AC Charger Unit
8. Adjusting Storage Shelf Dividers
Each storage shelf features 16 strain relief
bushings that prevent the device’s power
connectors from slipping through the bushing.
Connect the device’s power plug into one of
the AC charger unit’s dongle receptacles
A
,
then run the power connector through the
storage shelf’s strain relief bushing to establish
a power connection
B
. Repeat for all devices.
Your tablet charging station comes with one or two storage shelves with adjustable dividers that can
each accommodate up to 16 personal electronic devices per shelf.
Remove any personal electronic devices stored on the shelf tray. Then unlock and open the rear
door to the cabinet. From the front or rear of the cabinet, rearrange the dividers by pulling them out
or snapping them into the shelf tray. Repeat as necessary for additional shelf trays.
7.2 Connecting Devices to the AC Charger Unit
B
A

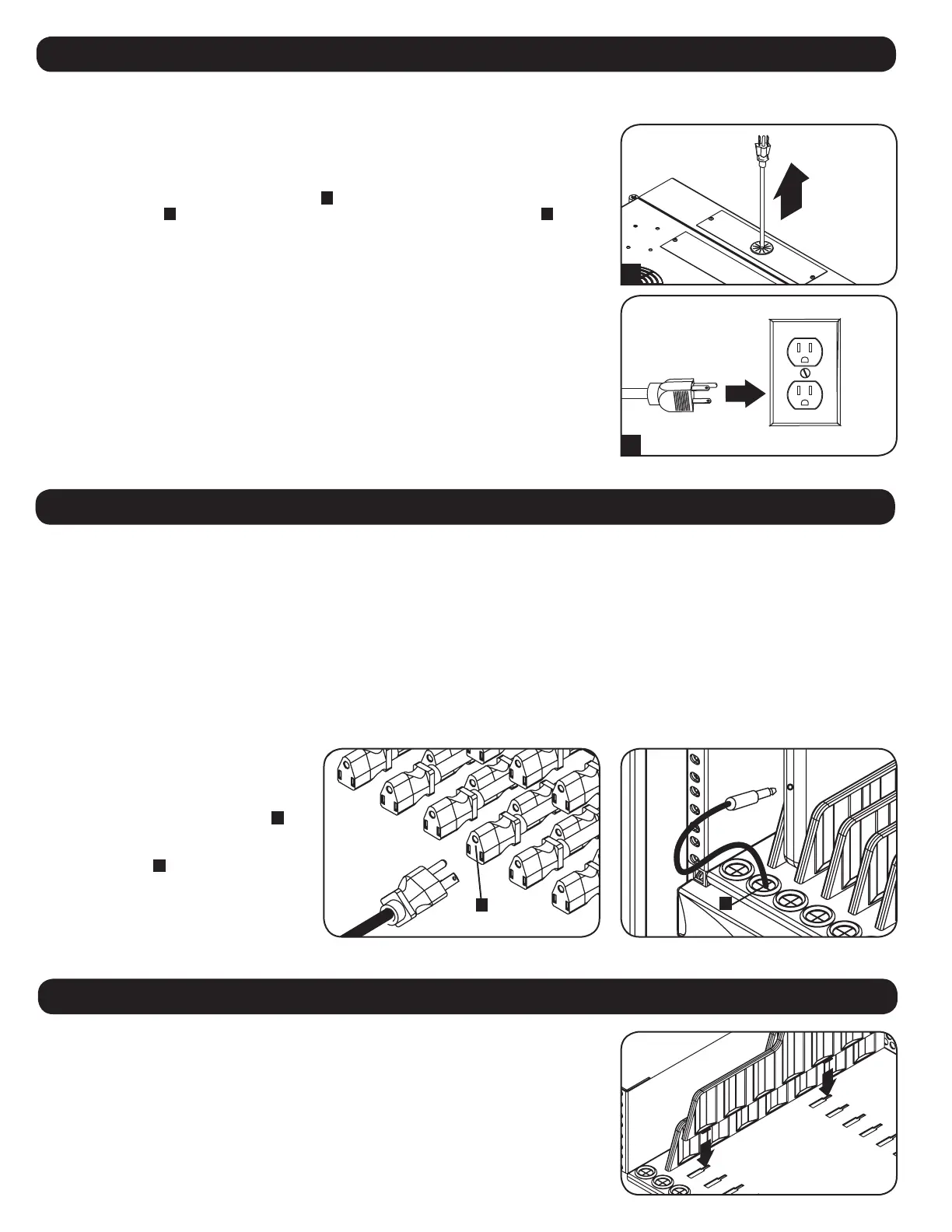

6. Enclosure Configuration
6.2 Power Cord/Cable – Access and Management
Both charging station models contain secure top and bottom cable access plates that can only be
removed by accessing the inside of the enclosure.
To connect the charging station to a power outlet, run the power cord through the top or bottom
cable access plate containing a cord grommet by unlocking the front door and removing one or
both of the side panels (as shown in section 6.1)
1
. Then push the input plug through the top or
bottom cord grommet
2
and run the cord to your nearest 3-prong, grounded wall outlet
3
.
2
3
