5

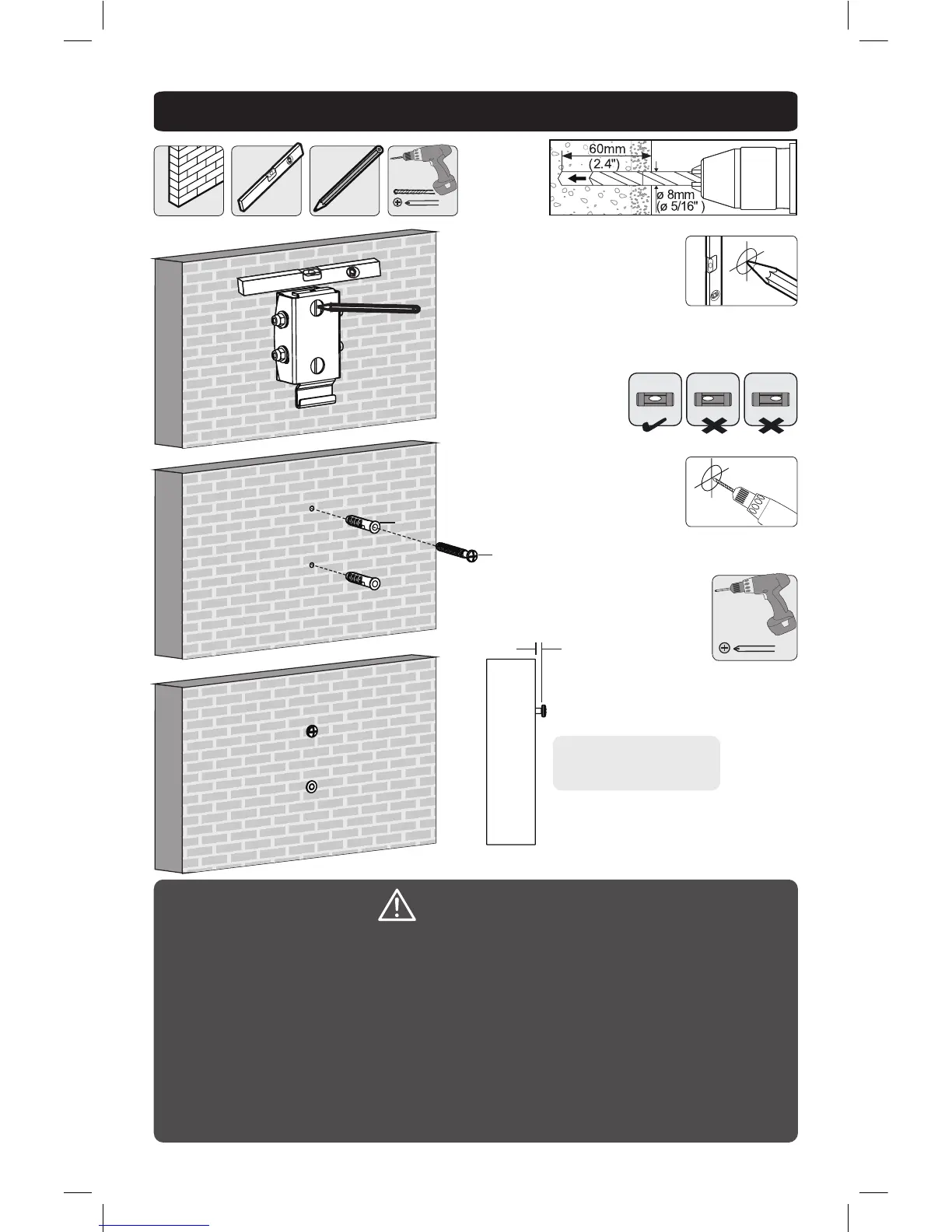

2b. Mount on Solid Brick and Concrete Block
Mark the exact
location of
mounting holes
Screw the wall
mount onto
the wall
Drill pilot holes
WARNING
• When installing wall mounts onto a concrete masonry unit (also known as a CMU or
“cinder block”), verify that the actual concrete thickness is at least 35mm (1-3/8”)
in order to hold the concrete anchors. DO NOT DRILL INTO MORTAR JOINTS! Be
sure to mount the wall mount with the included concrete anchors, D6 washers and
anchor bolts onto solid sections of the blocks. The solid sections can generally be
found 25mm (1”) toward the middle of the block from either end. An electric drill on
a slow setting is suggested to drill the hole rather than a hammer drill so as to avoid
breaking out the back of the hole when entering a hollow section.
• Installers must verify that the supporting surface will safely support the combined
load of the equipment and all attached hardware and components.
2
1
Concrete Anchor
Anchor Bolt
5mm-8mm
Maintain a 5mm-8mm
space between the wall
plate and anchor bolt.
