Triton Cara - Main Components

Electric shower
3
255
mm
305
mm
210 mm
59 mm
1
2
2
3
3
3
3
4
5
6
8
7
9
10
11
12
13
16
14
17
15

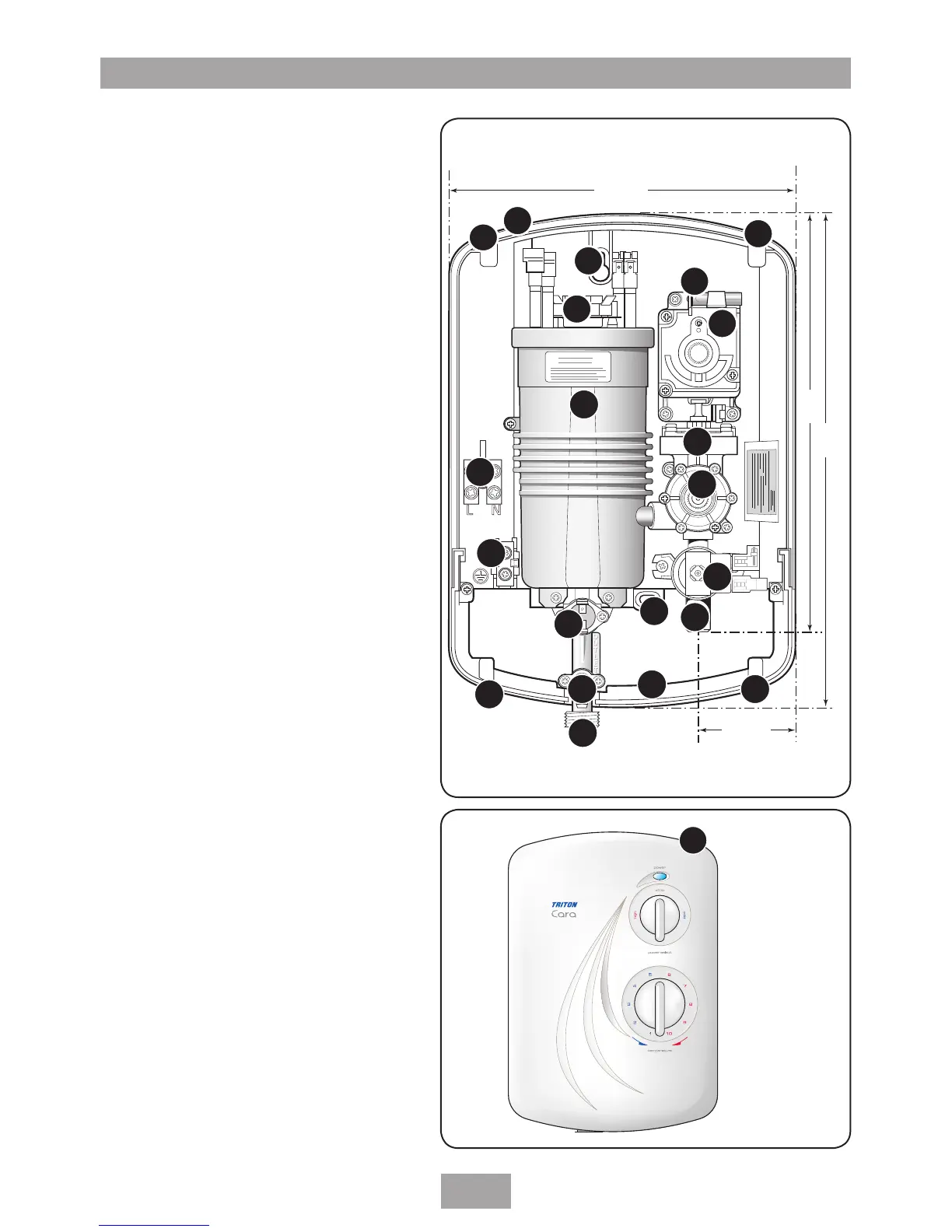

Fig.1
MAIN COMPONENTS
Inside unit (fig.1)
1. Top cable/pipe entry
2. Wall screw fixings
3. Cover screw fixings
4. Thermal safety cut-out (main)
5. Power selector assembly
6. Power neon
7. Can and element assembly
8. Pressure switch assembly
9. Stabilising valve
10. Terminal block
11. Earth connection
12. Solenoid valve
13. Water inlet
14. Outlet temperature limiter
15. Pressure relief device (PRD)
16. Trimplate
17. Shower outlet
(fig.2)
18. Cover assembly
NOTE: Not all wiring has been shown for reasons of clarity.
Fig.2
18
