Plastic Pole
insert-A
2
pcs
8
pcs
PRE-INSTALLED PARTS
P1 P2
Assembly Instructions
Find a clean, level place to begin the assembly of your Basketball Game. We recommend that two adults work
together to assembly this basketball game.
Remove all the parts from the box and verify that you have all of the listed parts as shown on the Parts List.
Carefully cut or tear the four corners of the box so that the bottom of the box can be used as your work surface.
STEP 1
Plastic Pole
insert-B
Spring Lock
8
pcs
P3
PARTS REQUIRED:
2 pcs - #2 Board Tube
1 pc - #3 Left Tube
1 pc - #4 Right TUbe

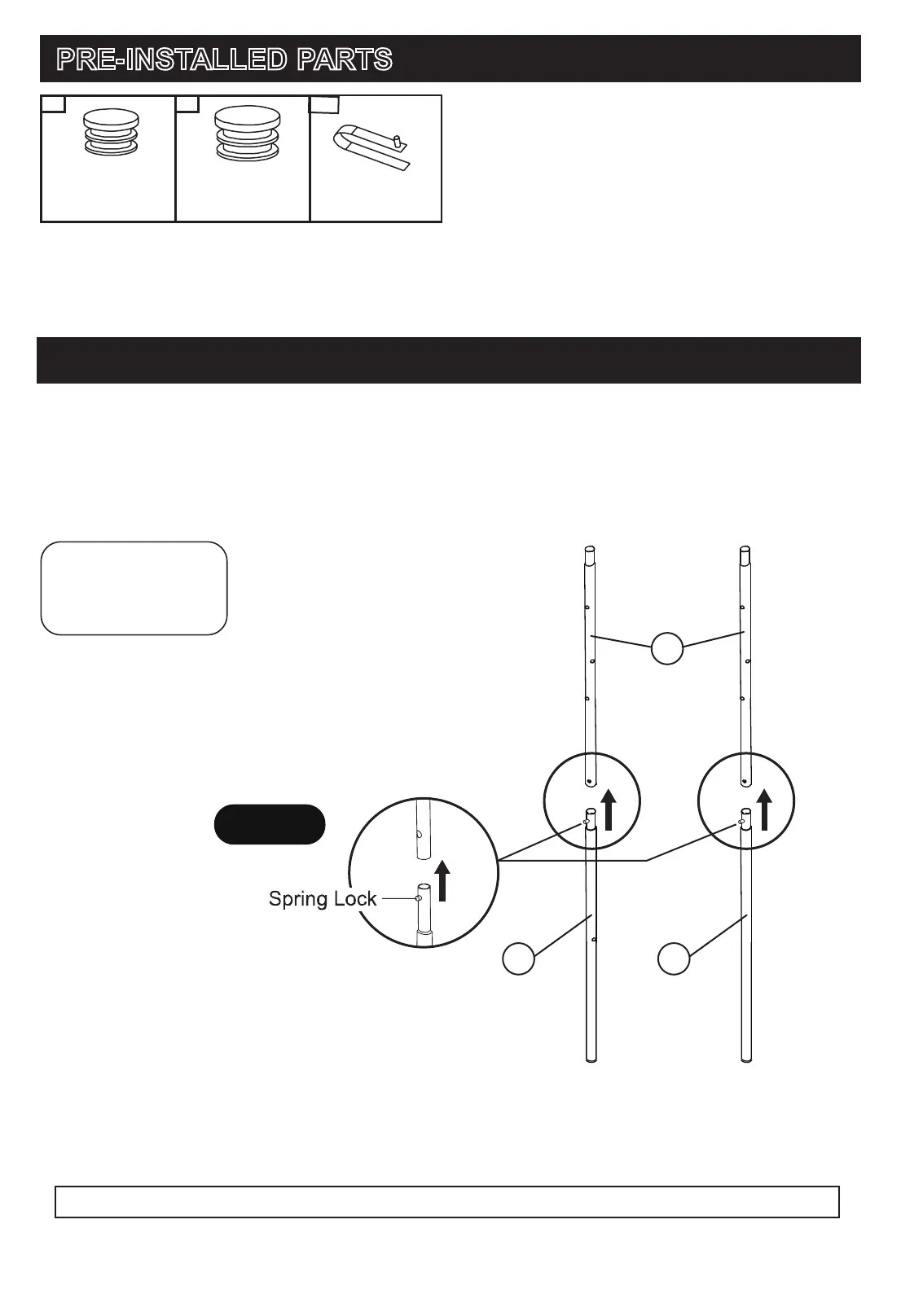

Attach the Board Tubes (#2) to the Left Tube (#3) and
Right Tube (#4) using Spring Lock as shown in
FIGURE 1.
2
3 4
FIGURE 1
4
For Customer Service Call 1-888-996-2729
© 2017 Escalade S por t s
All Rights Reserved
Please study each diagram closely and read all assembly notes to insure correct assembly
To Next Page
