Control Wire
PARTS REQUIRED:
1 pc - #16 Control Box 1 pc - #37 Control Wire
1 pc - #34 A/C Adapter 1 pc - #38 Wing Bolt

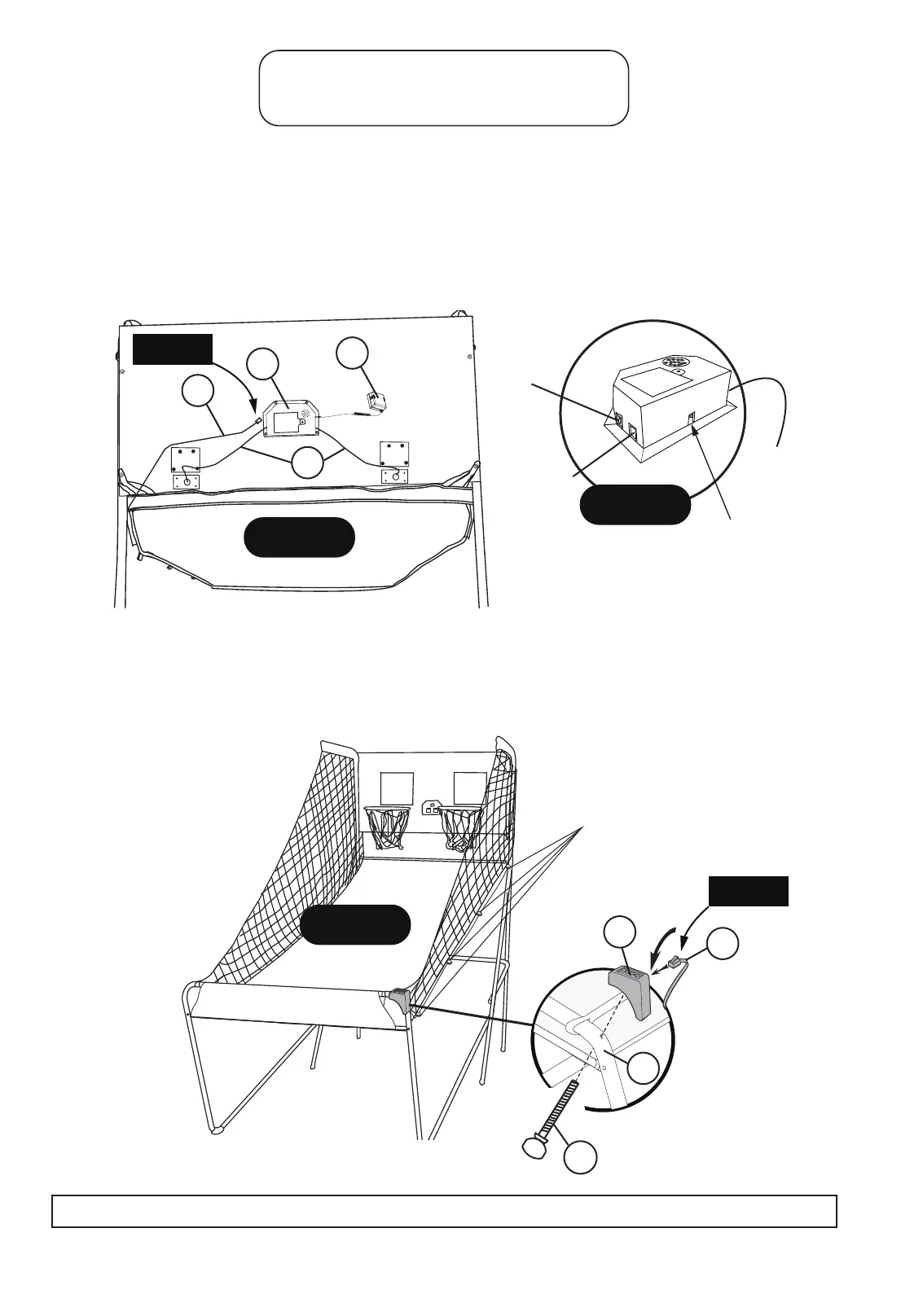

STEP 10
Connect the Sensor Wire of Mechanical Scoring Arms (#15) to Electronic Scorer (#14) as shown in FIGURE 10.
Connect the Control Wire (#37) to Electronic Scorer (#14) as shown in FIGURE 10 and DETAIL G.
This game has a Dual Power feature. You can insert 3 AA Batteries (not included) into the battery
compartment on the back of the Electronic Scorer (#14) --- OR --- use the A/C Adapter (provided) when
your shootout is close to a power source. Please remove the batteries when you are using the A/C Adapter.
34
14
37
15
STEP 11
Now attach the Control Box (#16) to the right corner of the Ramp U-Tube (#11) using Wing Bolt (#38)
as shown in FIGURE 11.
Run the rest of the Control Wire (#37) through the loops on the Ramp Chute (#13)
Do not over tighten
Wing Bolt #38
.
FIGURE 10
DETAIL G
Control
Wire
Mechanical
Scoring Arm
Sensor
Mechanical
Scoring
ON/OFF SWITCH
Arm
Sensor
Control Box
11
37
16
FIGURE 11
11
For Customer Service Call 1-888-996-2729
© 2017 Escalade S por t s
All Rights Reserved
See” FIRST TIME BATTERY INSTALLATION AND NOTICE “ , before installing batteries, located on page 17.
38
Please study each diagram closely and read all assembly notes to insure correct assembly
Install #37 Control
Wire into Hook
and Loop Straps.
NOTE: Smaller
Connector
NOTE: Larger
Connector.
To Next Page
