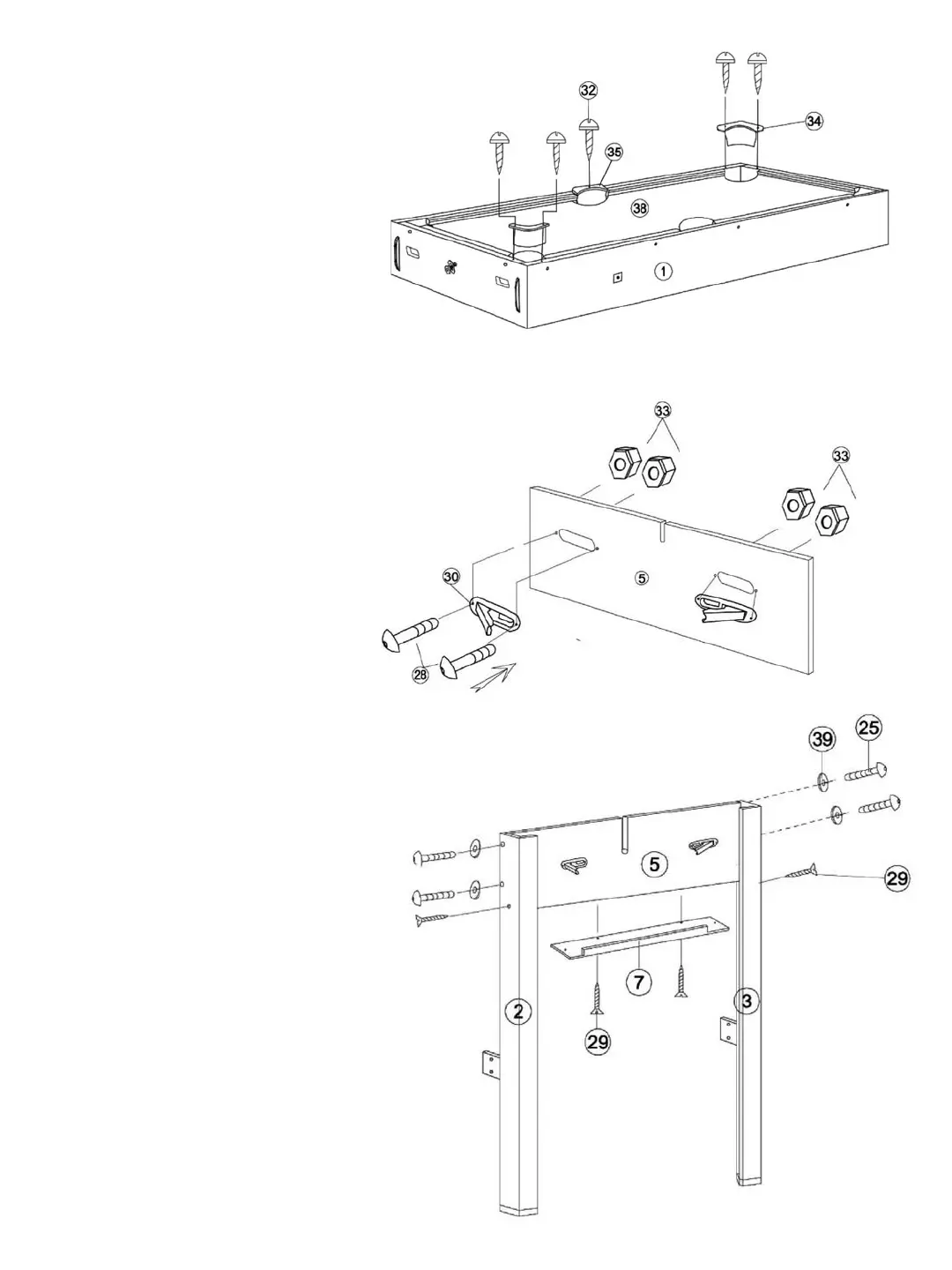

Step 3
Insert the corner pockets (#34)
and side pockets (#35) into the
table cabinet (#1) using screws
(#32).
Step 4
Attach the lock pins (#30) into
predrilled holes on leg pedestal
(#5) using bolts (#28) and nuts
(#33). Repeat the step for the
other side.
Step 5
Attach the leg pedestal (#5) to left
leg panel (#2) and right leg panel
(#3) with washers (#39) and bolts
(#25). Screw the ball below board
(#7) to the leg pedestal (#5) using
screws (#29) into predrilled holes.
