12
For Customer Service Call 1-888-996-2729
© 2019 Escalade Sports
All RIghts Reserved.

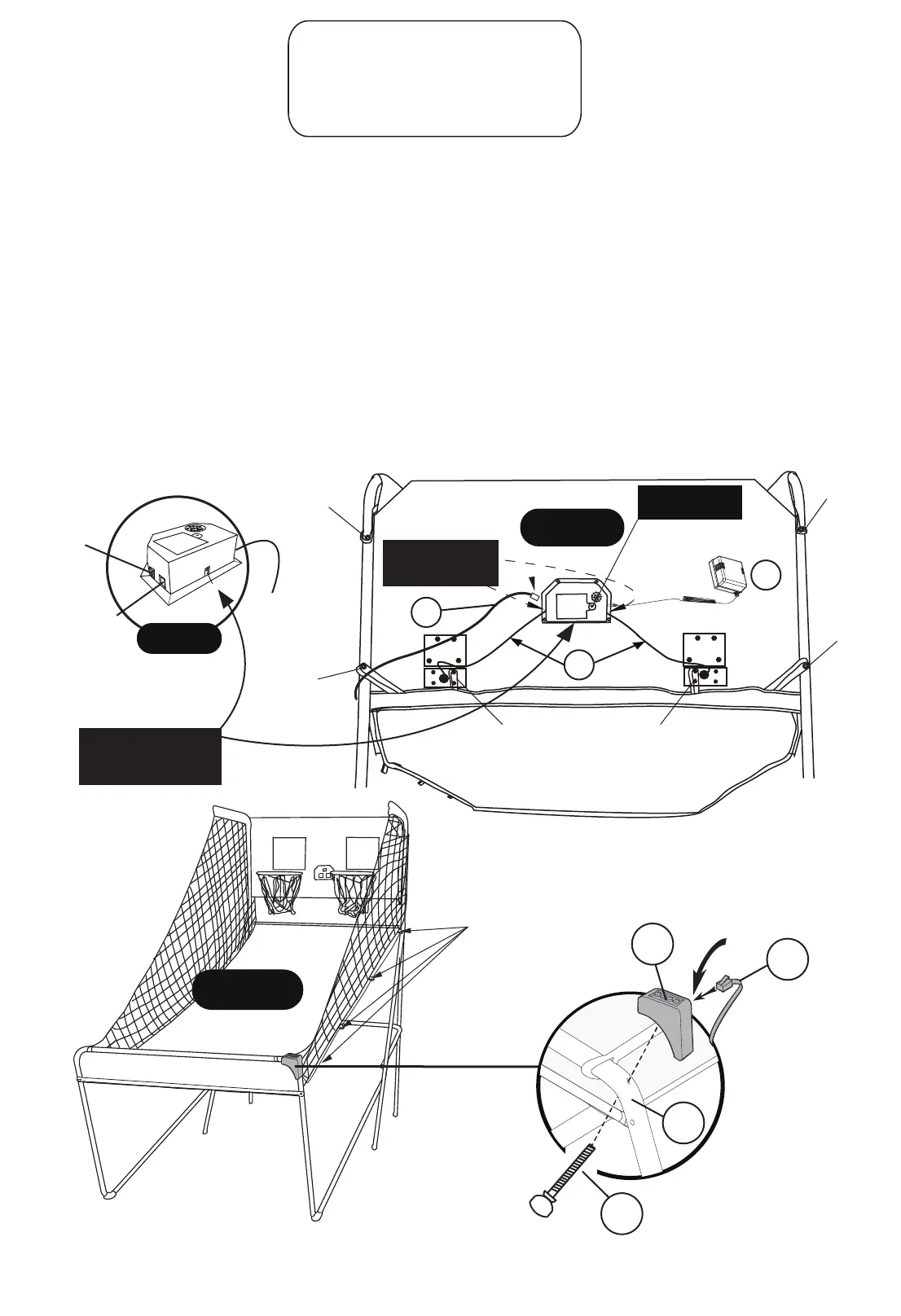

STEP 10
Connect P11 Mechanical Scoring Arm sensor wires to P9 Electronic Scorer as shown in FIGURE 10.
Secure Elastic Loops from P8 Ramp Chute to the back of P7 Backboard attached Wing Nuts as shown
in FIGURE 10.
Hook Elastic Loops over Wing Nuts in six locations as shown in FIGURE 10.
Connect
See” FIRST TIME BATTERY INSTALLATION AND NOTICE “ , before installing batteries, located on page 17
P16 Scoring Control Box Wire to P9 Electronic Scorer as shown in FIGURE 10 and DETAIL D.
Now attach P17 Control Box to the right corner of the front U-Tube P5 using H8 Wing Bolt as shown in
FIGURE 11. Run the rest of P16 Control Wire through the loops on P8 Ramp Chute.
This game has a Dual Power feature. You can insert 3 AA Batteries (not included) into the battery
compartment on the back of the Electronic Scorer P9--- OR --- use the A/C Adapter A3 (provided) when
your shootout is close to a power source. Please remove the batteries when you are using the A/C Adapter.
P11
Elastic
Loop
Elastic
Loop
Elastic
Loop
Elastic Loop Elastic Loop
FIGURE 10
NOTE: Plug the mechanical
scoring arm plug into
backside of the electronic
scoreboard.
PARTS REQUIRED:
1 pc - H8 Wing Bolt
A/C Adapter
1 pc - P17 Control Box
1 pc - P16 Scoring Control Box Wire
1 pc - A3
ON/ OFF
DETAIL G
Control
Wire
Mechanical
Scoring
Arm
Sensor
Mechanical
Scoring
Arm
Sensor
P16
A3
Elastic
Loop
H8
P16
P17
FIGURE 11
P5
Install P16 Control
Box Wire into Hook
and Loop Straps.
NOTE: ON/OFF switch
located bottom of
electronic scorer.
Small phillips screwdriver
to remove and reinstall
battery cover
To Next Page
