Triumph AL7100F - Page 11

11
For Customer Service Call 1-888-996-2729
© Escalade Sports
All RIghts Reserved.
STEP 9
PARTS REQUIRED:
1 pc - P8 Ramp Chute

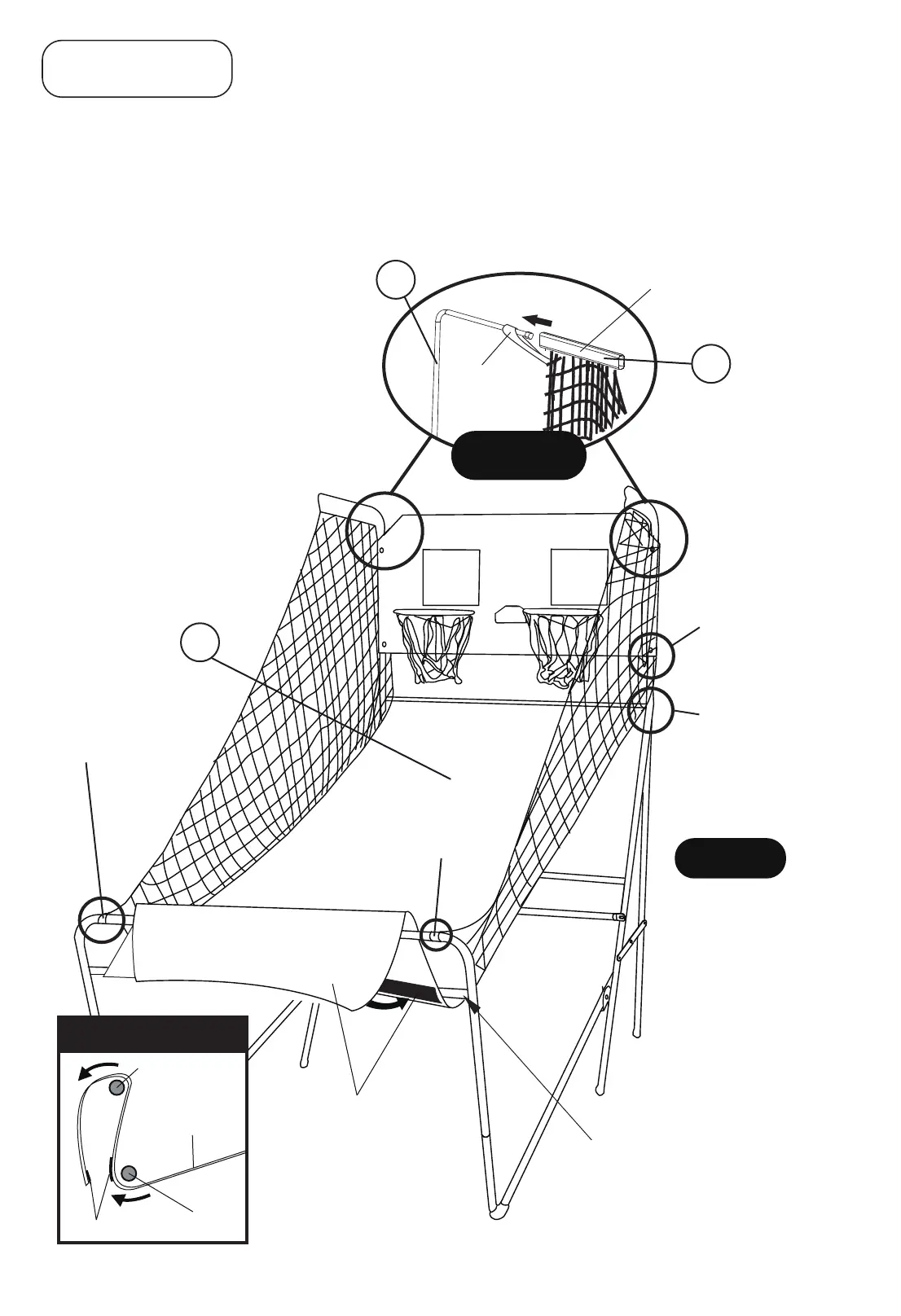

Slide elastic loops and the sleeve of P8 Ramp Chute onto P6 Upper Tubes as shown in FIGURE 9 and
DETAIL C.
At the front of
P8 Ramp Chute, bring the ramp down and secure using Hook and Loop Straps as shown in FIGURE 9.
Secure all Hook and Loop Straps on the shootout as shown in FIGURE 9.
Elastic
Loop
Ramp Chute
Upper Sleeve
P8
P6
DETAIL C
Bring Ramp Chute
cross bottom tube and
front U-tube down and
secure Hook and
Loop Strap.
Connect Hook and Loop
Strap here
Connect Hook and Loop
Strap here
Connect Hook and Loop
Strap here
Connect Hook and Loop
Strap here
P8
FIGURE 9
NOTE: Bottom Tube.
Bottom
Tube
SIDE VIEW
Front U-Tube
Hook and Loop Strap
Ramp
Chute
2019
