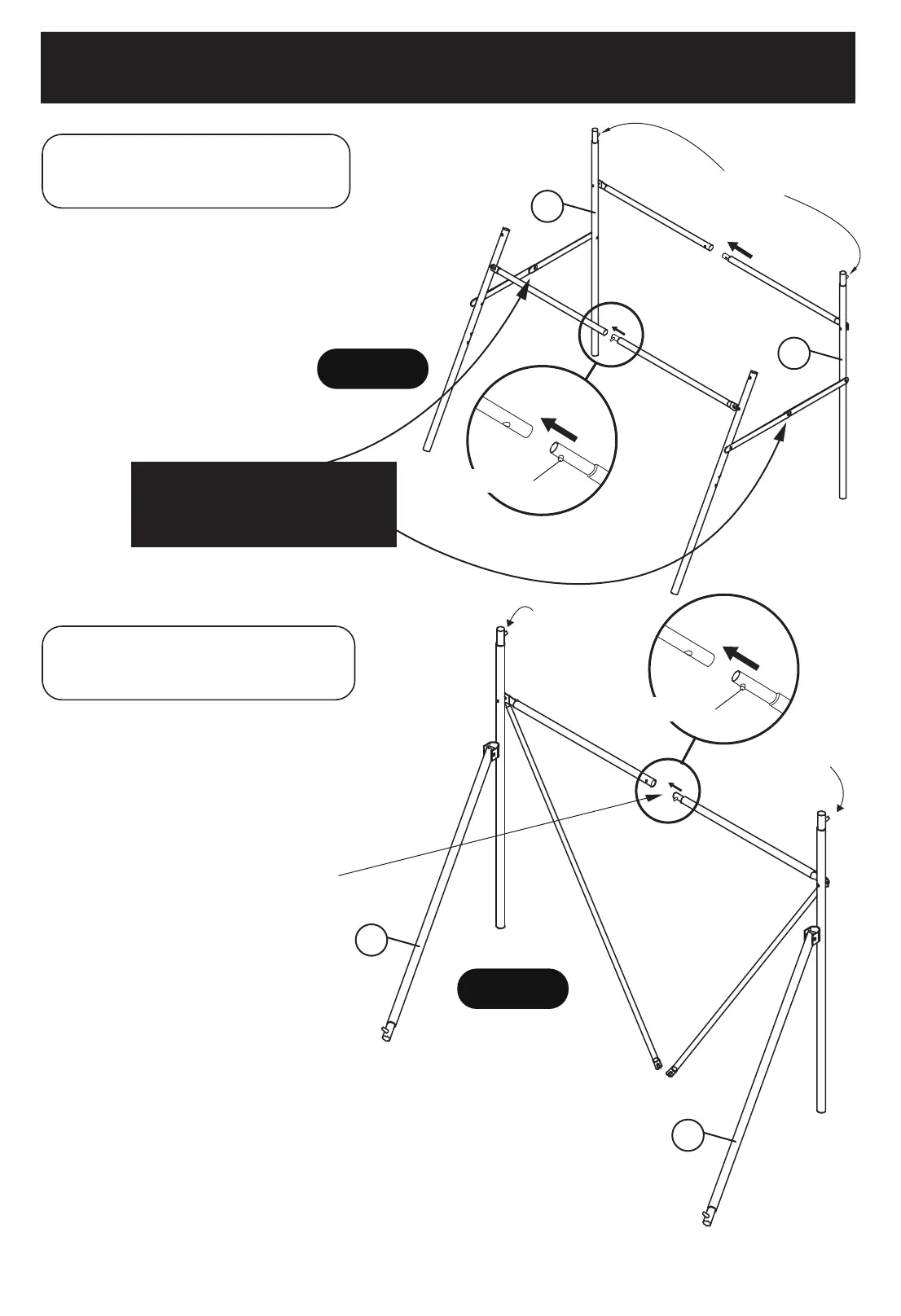

STEP 1

PARTS REQUIRED:

1 pc - P1 Left Lower Tubes Assembly

1 pc - P2 Right Lower Tubes Assembly

Connect P2 - Right Lower Tubes Assembly to

P1 - Left Lower Tubes Assembly using Spring

Lock as shown in FIGURE 1.

NOTE: STEP 1, 2 and 3 requires

a second adult to help “hold” the

assemblies as being assembled.

Remove all the parts from the box and verify that you have all of the listed parts as shown on the Parts List.

NOTE: STEP 1, 2 AND 3 requires a second adult to help “hold” the assemblies as being assembled

NOTE: When unfolding assemblies, be careful not to bend any parts.

Spring Lock

face backside

STEP 2

PARTS REQUIRED:

1 pc - P3 Left Middle Tubes Assembly

1 pc - P4 Right Middle Tubes Assembly

Connect P4 - Right Middle Tubes Assembly to

P3 - Left Middle Tubes Assembly using Spring

Lock as shown in FIGURE 2.

NOTE: The only assembly in this step is

connecting this spring lock.

FIGURE 1

Spring Lock

FIGURE 2

WARNING / PINCH HAZARD!

Keep hands and fingers away from

hinge until STEP 3 is complete and

the hinge is in a controlled position.

Spring Lock

face backside

Spring Lock

face backside
