24. Locate the front brake master cylinder to the handlebars and fit the clamp, do not
fully tighten at this stage.
When fitting the front brake master cylinder, care must be taken to avoid trapping
switch housing harness between handlebar and reservoir clamp.

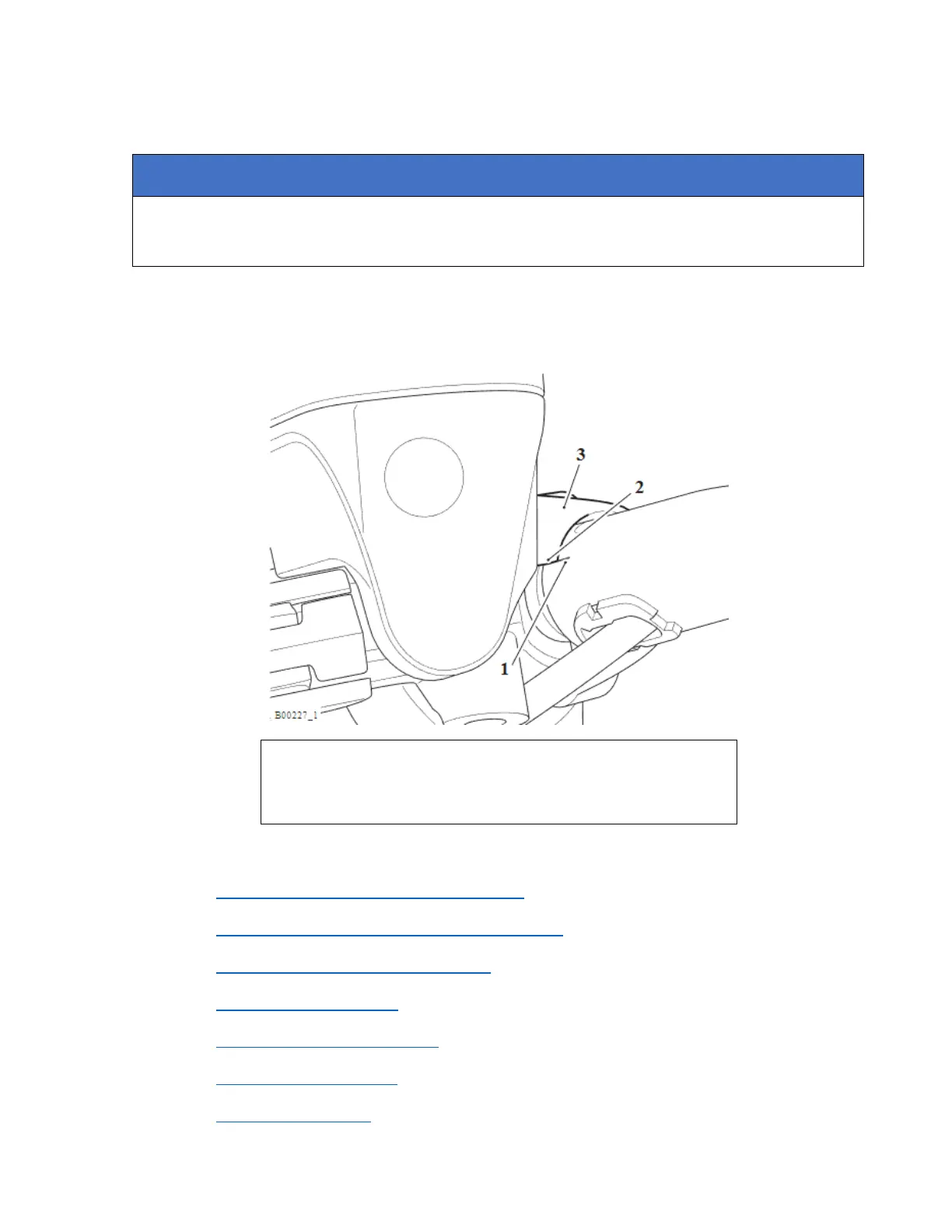

25. Align the straight edge on the clamp to the alignment mark on the handlebar (as
shown in the illustration below) and tighten the fixings (upper one first) to 8 Nm.
1. Alignment mark
2. Straight edge
3. Clamp
Perform the following operations:
• Heated Grip - Installation (if fitted)
• Twist Grip Position Sensor - Installation
• Heated Twist Grip - Installation
• Mirrors - Installation
• Instruments - Installation
• Battery - Installation
• Seat - Installation
