General Information
84
To install the rider and passenger seat:
• Position the seat's front bracket
under the fuel tank hinge.
• Align the locating peg to the lock.
• Press the seat down engaging the
locating peg in the lock. An audible
click can be heard when the seat is
fully engaged.
Seat Options
There are several different combinations
of rider and passenger seats available.
A passenger seat can be fitted to the
rider seat using the seat bracket. A
rider infill section can also be fitted to
the rider seat instead of a passenger
seat. The attachment procedure is the
same for a passenger seat or a rider
infill section.

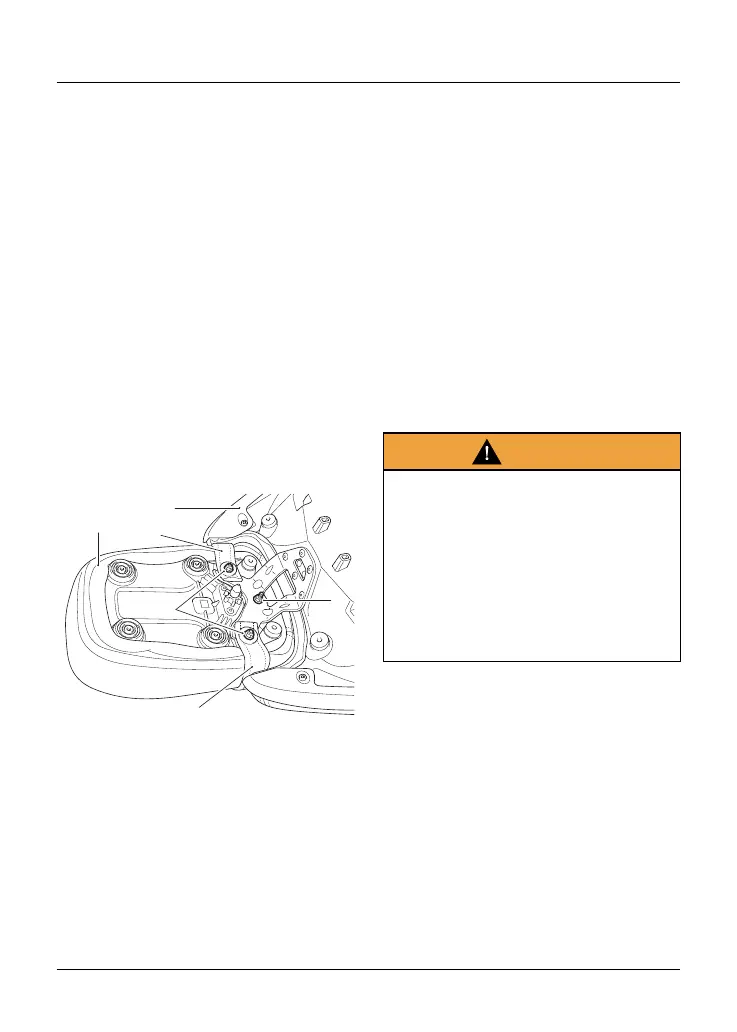

5
4
1
3
2
2
1. Passenger seat
2. Passenger seat straps
3. Rider seat
4. Seat washers and nuts
5. Main seat nut
To remove the passenger seat or rider
infill section from the rider seat:
• Release the two seat washers and
nuts that secure the seat strap in
place, if fitted.
• Release the main seat nut.
• Remove the passenger seat or rider
infill section.
To fit the passenger seat or rider infill
section to the rider seat:
• Align the passenger seat or rider
infill section to the seat bracket.
• Align the seat strap, if applicable.
• Fit the seat washers and nuts,
attaching the seat strap, if
applicable. Tighten the seat nuts to
3 Nm.
• Fit the main seat nut and tighten to
3 Nm.
Seat Backrest (if fitted)
Warning
To prevent detachment of the
backrest during riding, after adjusting
always grasp the backrest and pull
firmly upwards.
If the backrest is not correctly secured
in position, it will detach from it's lock.
A loose or detached backrest may
cause loss of motorcycle control and
an accident.
