Triumph Speed Triple S - Rear Fuse Box; Main Fuse

Maintenance
136
7 Cooling Fan 15
8 Fuel Pump 10
9 Ignition Switch 10

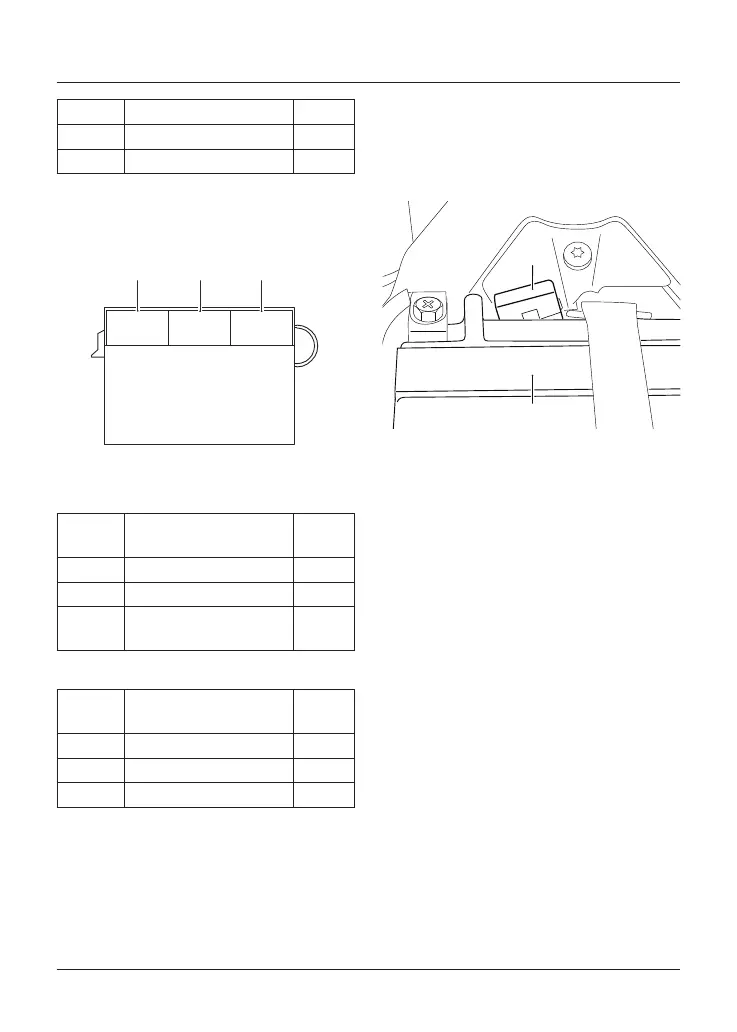

Rear Fuse Box
SPARE ABS
5A25A25A
1
2
3
Rear Fuse Box
Position Circuits Protected Rating
(Amps)
1 Spare 25
2 ABS 25
3 Keyless Control Unit
(KCU)
5
Table 1: Speed Triple RS
Position Circuits Protected Rating
(Amps)
1 Spare 25
2 ABS 25
3 Spare 5
Table 2: Speed Triple S
Main Fuse
The 30 Amp main fuse is located in front
of the battery. To allow access to this
fuse, the front panel on the fuel tank
must be removed.
1
2
1. Main fuse
2. Battery
