General Information

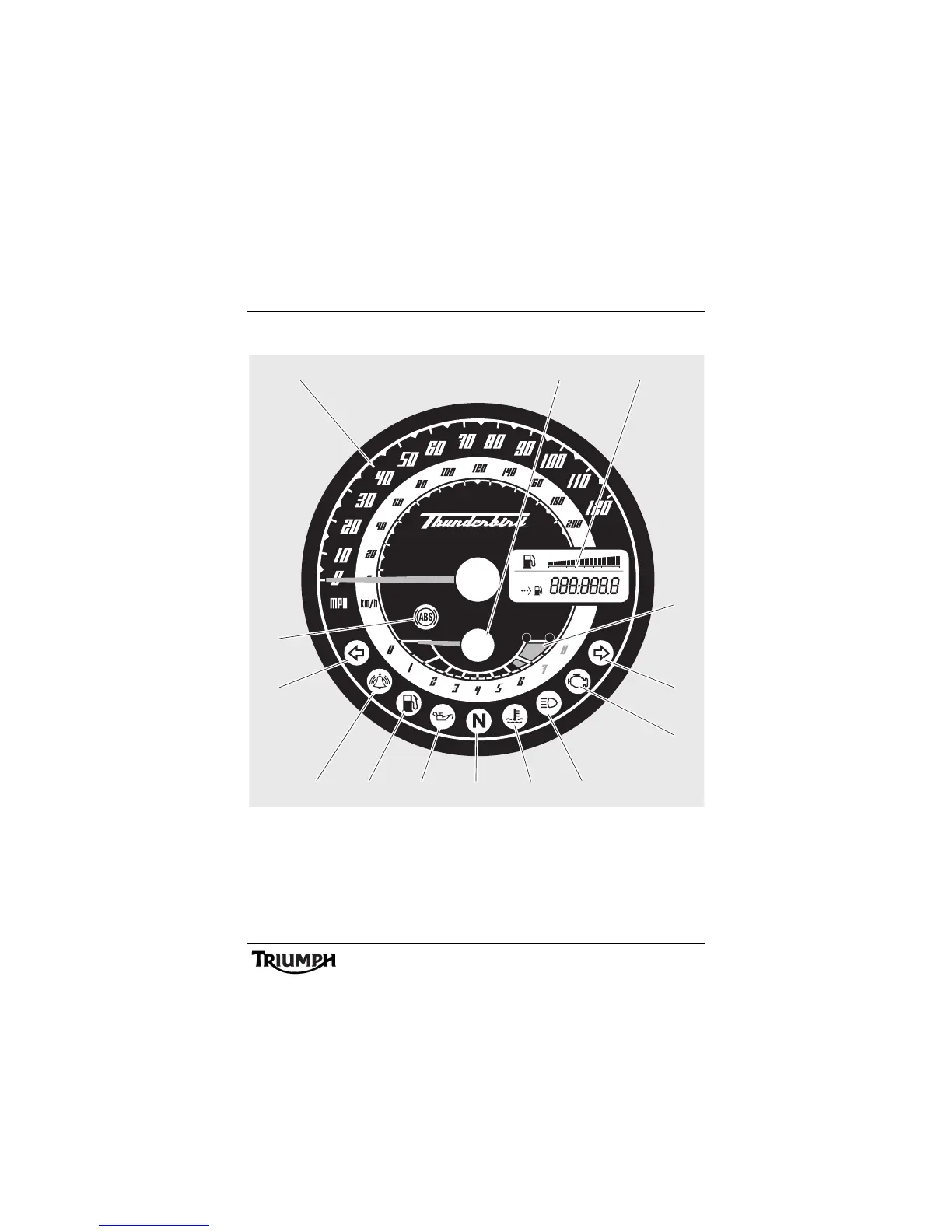

Instrument Panel Layout
1. Speedometer
2. Tachometer
3. Odometer/Trip meter/Clock
4. Tachometer 'red zone'
5. Right hand turn indicator light
6. Engine management malfunction
indicator light
7. High beam indicator light
8. High coolant temperature warning
light
9. Neutral indicator light
10.Low oil pressure warning light
11. Low fuel level indicator light
12.Alarm status indicator light (alarm is
an accessory fit)
13.Left hand turn indicator light
14.ABS warning light (ABS models only)
