Maintenance and Adjustment

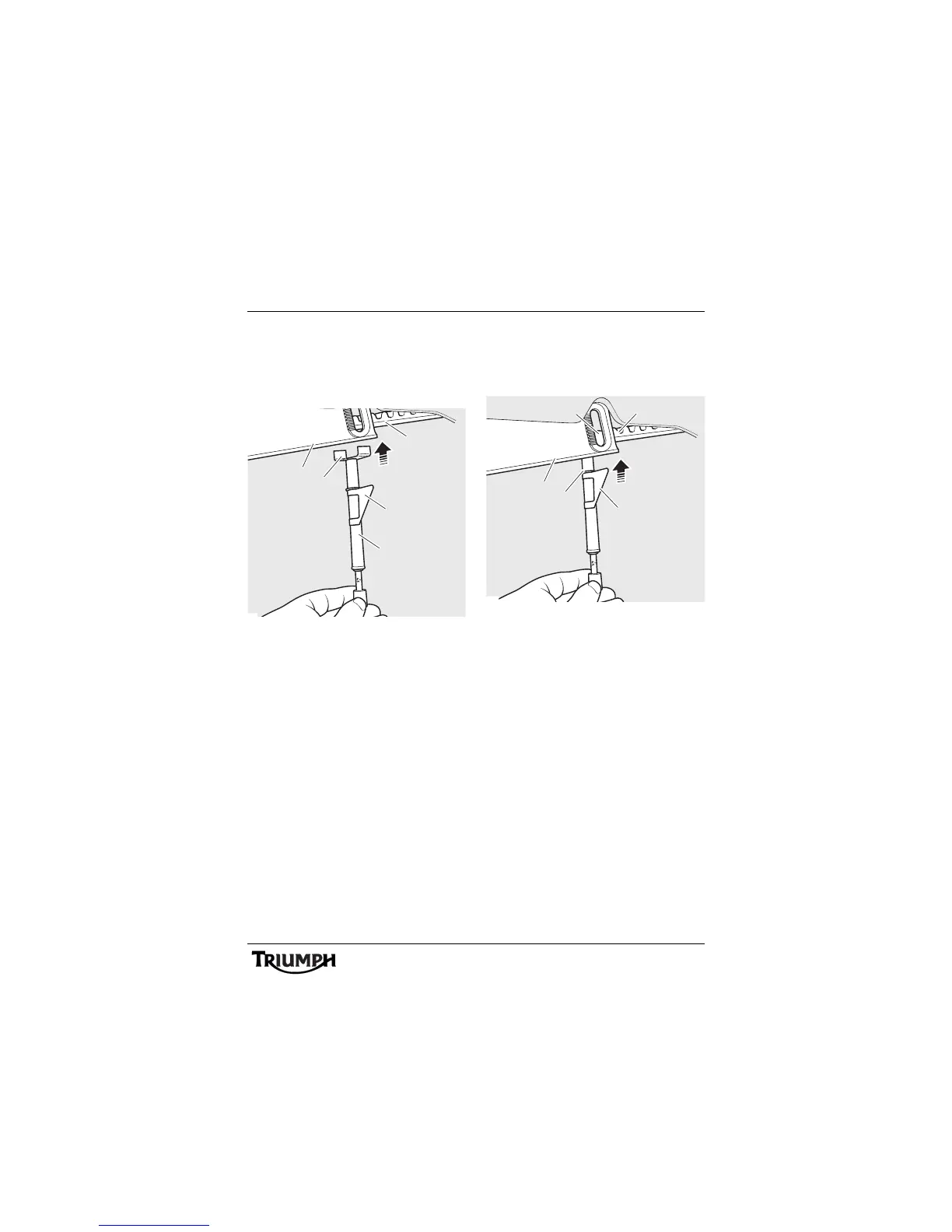

• Gently position the tool’s belt cradle
to the centre of the lower drive belt
run, ensuring the deflection slider on
the tool body is NOT in contact with
the drive belt cover at this stage.
1. Drive belt
2. Service tool T3880126
3. Belt cradle
4. Drive belt lower cover
5. Deflection slider
• Taking care not to deflect the belt,
slide the deflection slider and its
O-ring upwards until the slider just
touches the belt cover.
1. Drive belt
2. Belt cradle
3. Deflection slider
4. O-ring
5. Drive belt lower cover
4
1
3
cfhd
2
5
5
2
1
3
4
cfhd
