Triumph Tiger 900 - Page 167

Maintenance
167

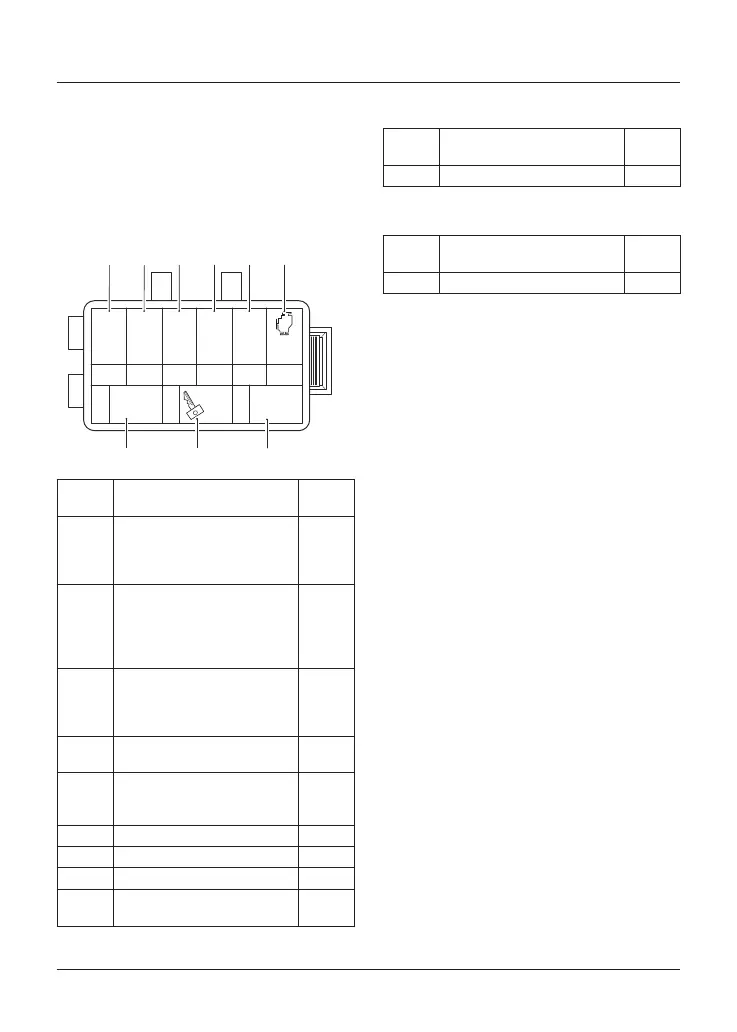

Fuse Identification
Tiger 900 GT Pro
The fuse identification numbers listed in
the table correspond with those printed
on the fuse box covers, as shown below.
Fuse Box 1
7
5A
10A 10A 10A 10A 20A 15A
25A ABS
5A OBDII
PS1 PS2 PS3 PS4 PS5
89
6 5 4 3 2 1
1
23
7
89
6
5
4
Position Circuit Protected
Rating
(Amps)
1
Chassis Control Unit, Cooling
Fan (Right Hand Side), Horn,
Fog Lights, License Plate
Light, Rear Position Light
10
2
Chassis Control Unit, Brake
Light, Dip Beam Headlight,
Front Position/DRL Control,
Instrument Wake, Front
Indicators, Heated Grips
10
3
Chassis Control Unit, Heated
Seats, High Beam Headlight,
Rear Indicators, USB Charger,
Front Position/DRL Power
10
4
Chassis Control Unit,
Passenger Accessory Socket
10
5
Chassis Control Unit, Cooling
Fan (Left Hand Side), Starter
Motor Solenoid, Fuel Pump
20
6 Engine Management System 15
7 ABS 25
8 Ignition Switch 5
9
Diagnostics Connector (OBDII),
Alarm
5
Fuse Box 2
Position Circuit Protected
Rating
(Amps)
1 Rider Accessory Socket 10
Fuse Box 3
Position Circuit Protected
Rating
(Amps)
1 Suspension Control 15
