RUNNING
AD
JUSTMENTS-Engine
Adjustment
Remove the roeker cover and
turn
the engine crank with the aid of
the starting handle for half a revolution after the valve to be
adjusted has closed. It is easier to do this if the sparking plugs are
removed. This also provides an opportunity for inspecting
and
checking the sparking plug gaps.
Slacken the lock nut and adjust the rocker screw with a screwdriver
until the gauge is a sliding fit between the top of the valve stem and
the rocker face.
Now tighten the lock nut and check that the clearance has not
altered.
Ignition
Timing
On initial assembly the ignition is set as stated on page
5.

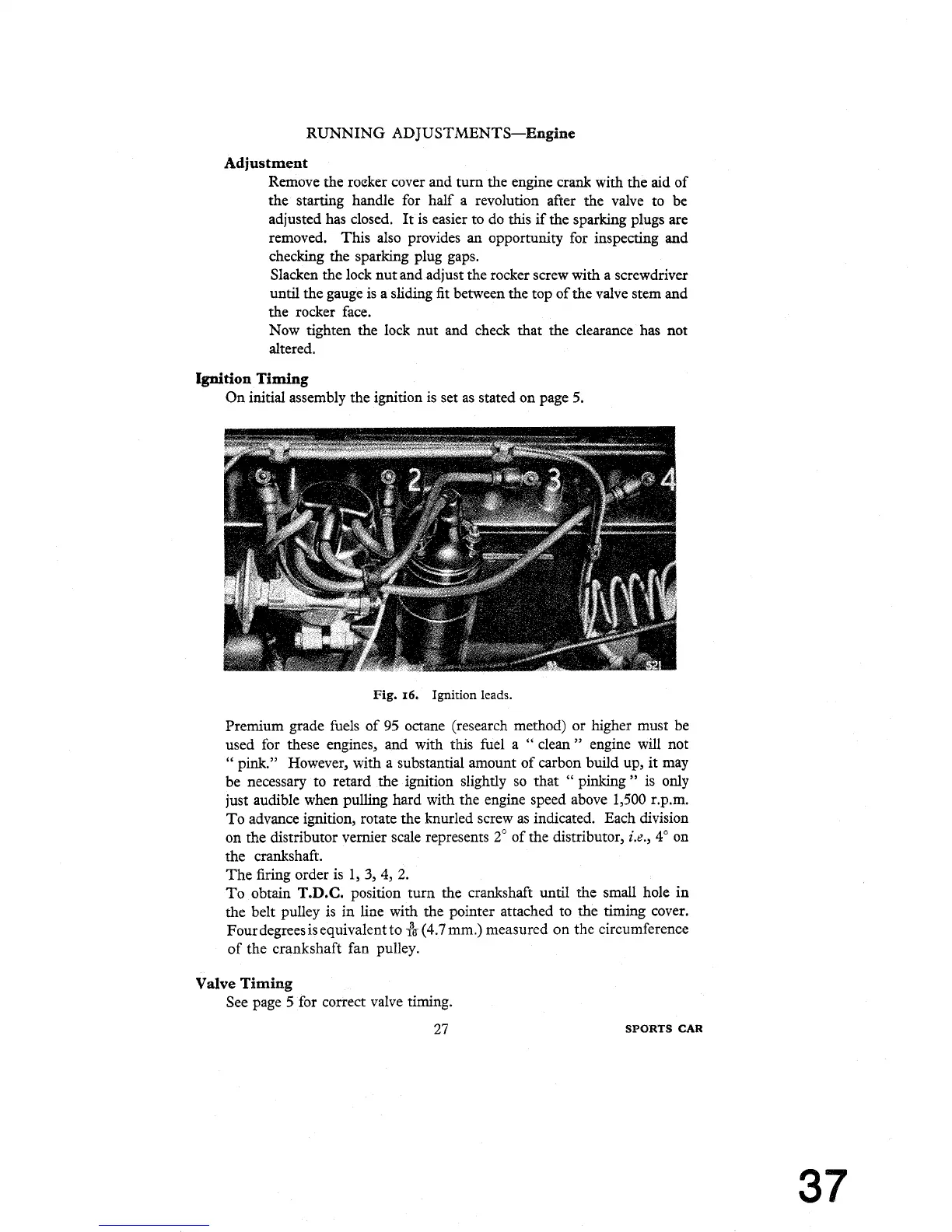

Fig.
16.
Ignition
leads.
Premium grade fuels of
95
octane (research method) or higher must be
used for these engines, and with this fuel a
"
clean
"
engine will not
"
pink." However, with a substantial amount of carbon build up, it may
be necessary to retard the ignition slightly so that
"
pinking
"
is only
just audible when pulling hard with the engine speed above
1,500
r.p.m.
To advance ignition, rotate the knurled screw as indicated.
Each division
on the distributor vernier scale represents
2"
of the distributor,
i.e.,
4" on
the crankshaft.
The firing order is
1,
3,
4,
2.
To obtain T.D.C. position turn the crankshaft until the small hole in
the belt pulley is
in
line with the pointer attached to the timing cover.
Fourdegreesis equivalent to
&
(4.7
mm.) measured on the circumference
of the crankshaft fan pulley.
Valve
Timing
See page
5
for correct valve timing.
27
SPORTS
CAR
