Trojan Stealth 3100 User Manual

◄ 3 ►
S
S
T
T
E
E
P
P
3
3
.
.

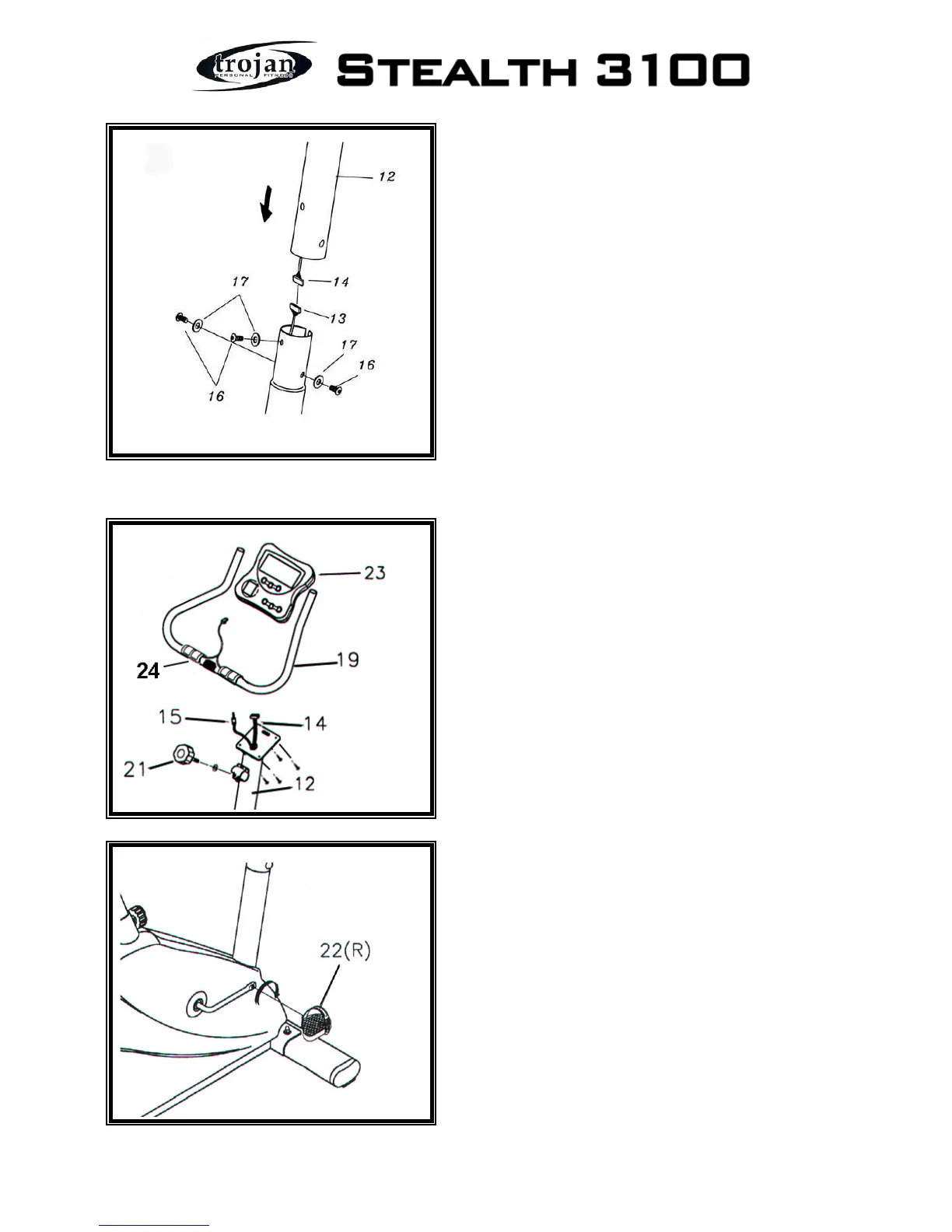

Firmly connect lower flat cable with upper flat
cable ( both pre-assembled on the main frame
and handlebar stem respectively ) before
inserting the handlebar stem(12) onto the
ain frame (1).
m
Use the domed head bolts (16) and curved
washers (17) to secure the handlebar stem
(12) in place.
Ensure the lower flat cable (13) and upper
cable
(
14
)
are not tan
g
led or
p
inched.
S
S
T
T
E
E
P
P
4
4
.
.
Release the handle bar knob (21) which is
pre-assembled on the handlebar clamp.
Insert the handlebar (19) to the handlebar
clamp and fix it with handle bar knob (21)
and washer.
Place the computer (23) on the top bracket
of the handlebar stem(12). Plug the upper
flat (14) and hand grip pulse sensor wire(24)
to the appropriate reception holes located at
the computer’s back panel. Fix the computer
with four small screws (23a).
S
S
T
T
E
E
P
P
5
5
.
.
IMPORTANT : Identify the right pedal (mark
“ R ” ) and the left pedal (mark “ L ” ) prior
to assembly the pedals.
Tighten the right pedal (22) clockwise into
the right side of crank arms by multi
-spanner (tool). However, the left pedal
(22) (not shown on the left drawing) should
be tighten anticlockwise to the left side of
crank with the same tool.
N
N
O
O
T
T
E
E
!
!
The socket of the upper flat cable MUST
protrude out of the of handlebar stem before
installing the handlebar stem to the main
frame, if not, pull out the socket .
Take note that fail to connect the upper and
lower flat cable firmly may cause the compu-
ter’s operation abnormal or completely
malfunction.
