Trotec BE20 User Manual

EN 5
voltage detector BE20
Information about the device
Device description
The bipolar voltage detector serves to indicate voltage ranges
between 12 and 690VDC or 12 and 400VAC. The voltage
amounts are displayed in
8sections on an LED display with their polarity being indicated.
The device may be used in facilities of overvoltage category 3
(CAT III = domestic installations).
The device is further equipped with a torch for easier voltage
detections on poorly lit areas.

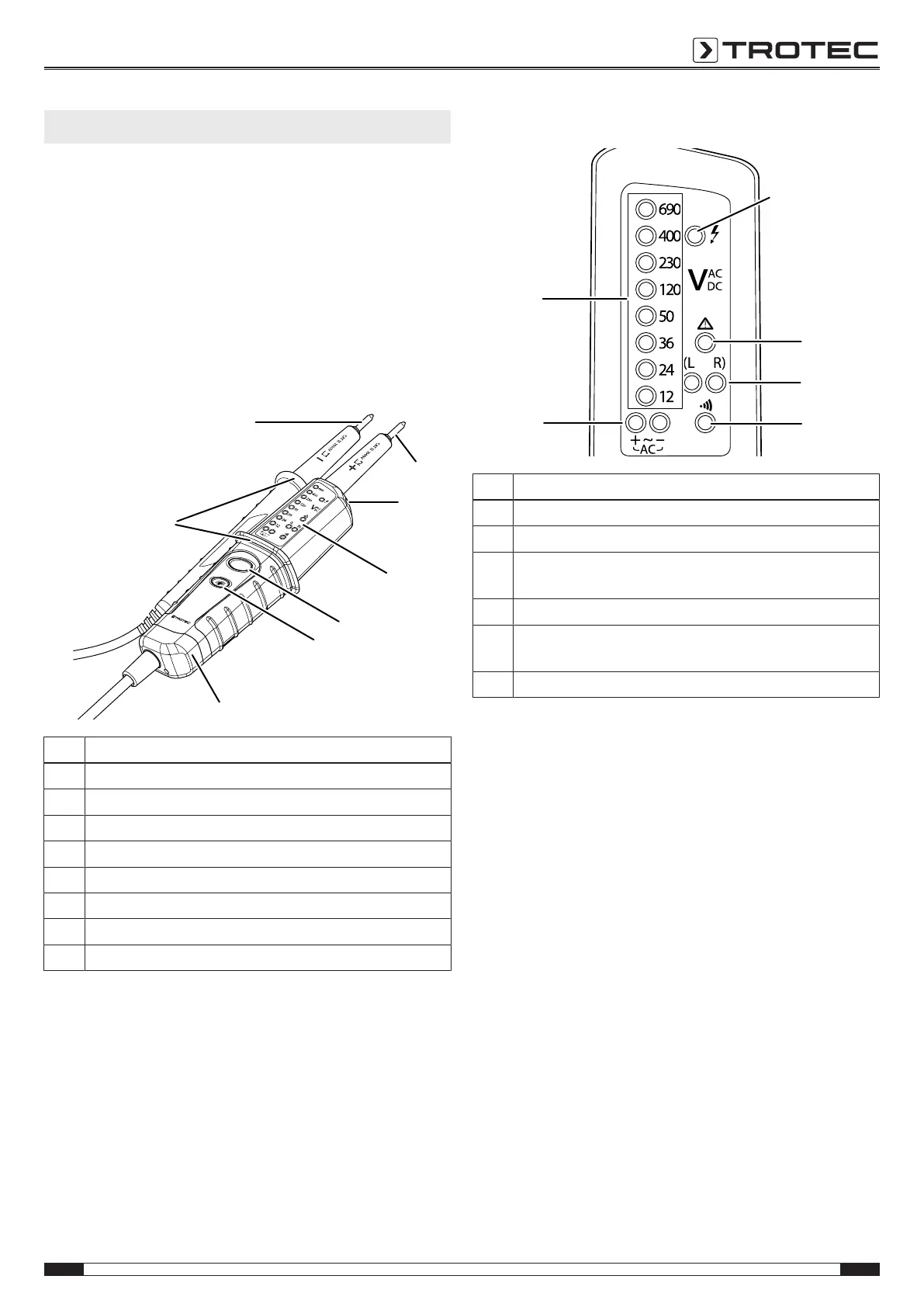

Device depiction
AUTO
TEST
1
2
4
5
6
7
3
8
No. Designation
1 Test probeL1(–)
2 Test probeL2(+)
3 LED torch
4 Display
5 Autotest button
6 LED torch power button
7 Battery compartment
8 Protection against contact
Display
AUTO
TEST
14
9
10
11
12
13
No. Designation
9 Unipolar voltage detection phase display
10 Warning indication voltage mode
11 Left-turning rotary field direction display(L)
Right-turning rotary field direction display(R)
12 Continuity check indication
13 Polarity indicatorAC+
Polarity indicatorAC–
14 Voltage detection LED displays
