Trotec IR 2010 S User Manual

8 EN
radiant heater IR 2010 S
The following is required for installation:
• a pencil for marking the drill holes
• a tape measure for determining the distances
• a suitable drill
• wall plugs appropriate for the structure of the wall
• a screwdriver
• a spirit level

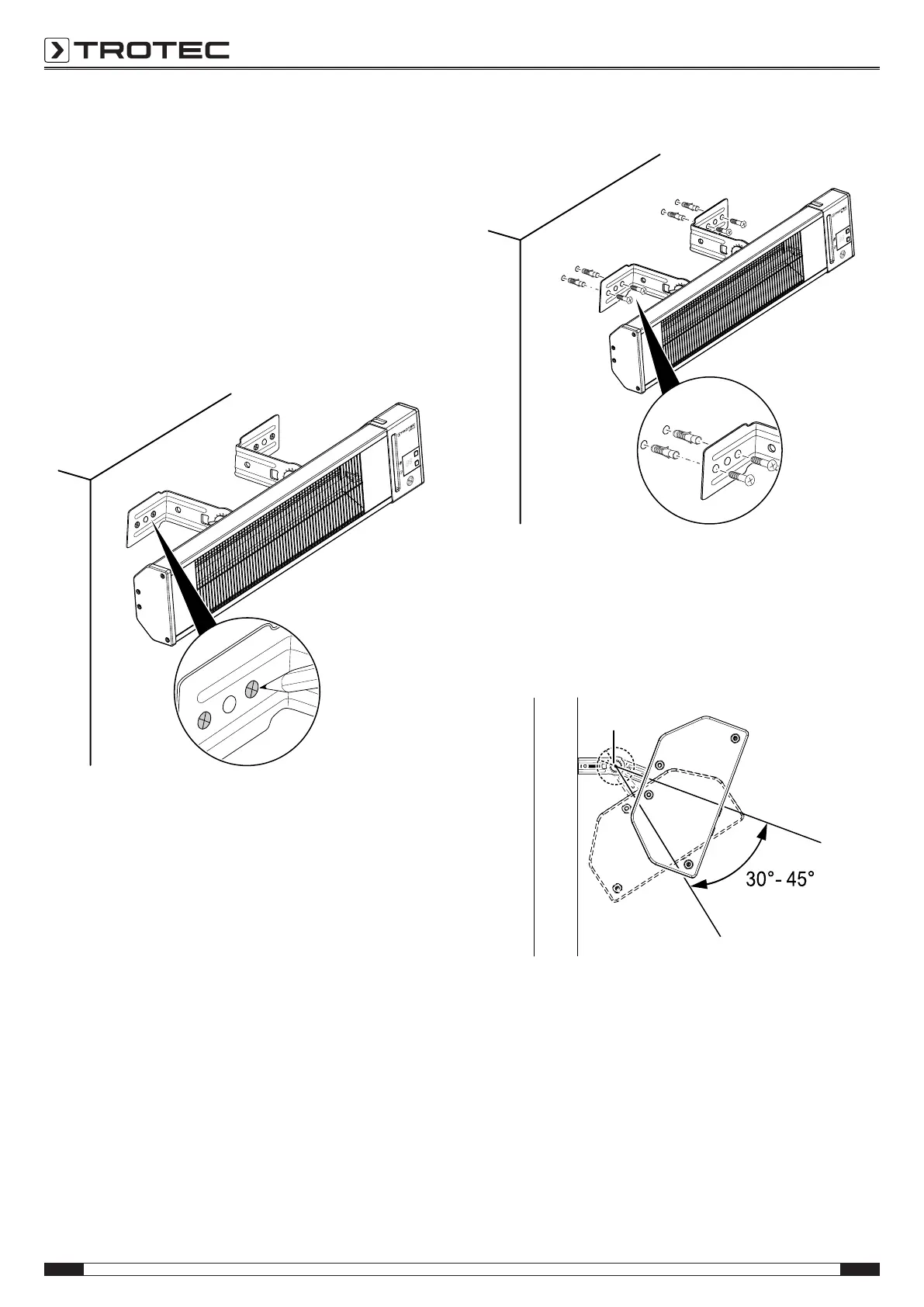

1. Mark the drill holes on the wall.
ð Please note that the device must be mounted in
horizontal position. Use a spirit level for this purpose.
2. Drill the holes into the wall at the marked positions.
3. Insert suitable wall plugs into the drill holes.
4. Screw the device to the wall using the four screws.
5. Make sure that the device is attached securely.
6. Loosen the wing nut(8) and tilt the device to the desired
angle.
ð Only align the device downwards at an angle
of30°to45°.
8
7. Once the device is at the desired inclination angle, tighten
the wing nut(8) again.
