4. Fold the heating blades into a horizontal position until they
engage with a click.
5. Check the foot(5) and the radiant heaters for tight fit.
6. Set the device up in an upright and stable position.

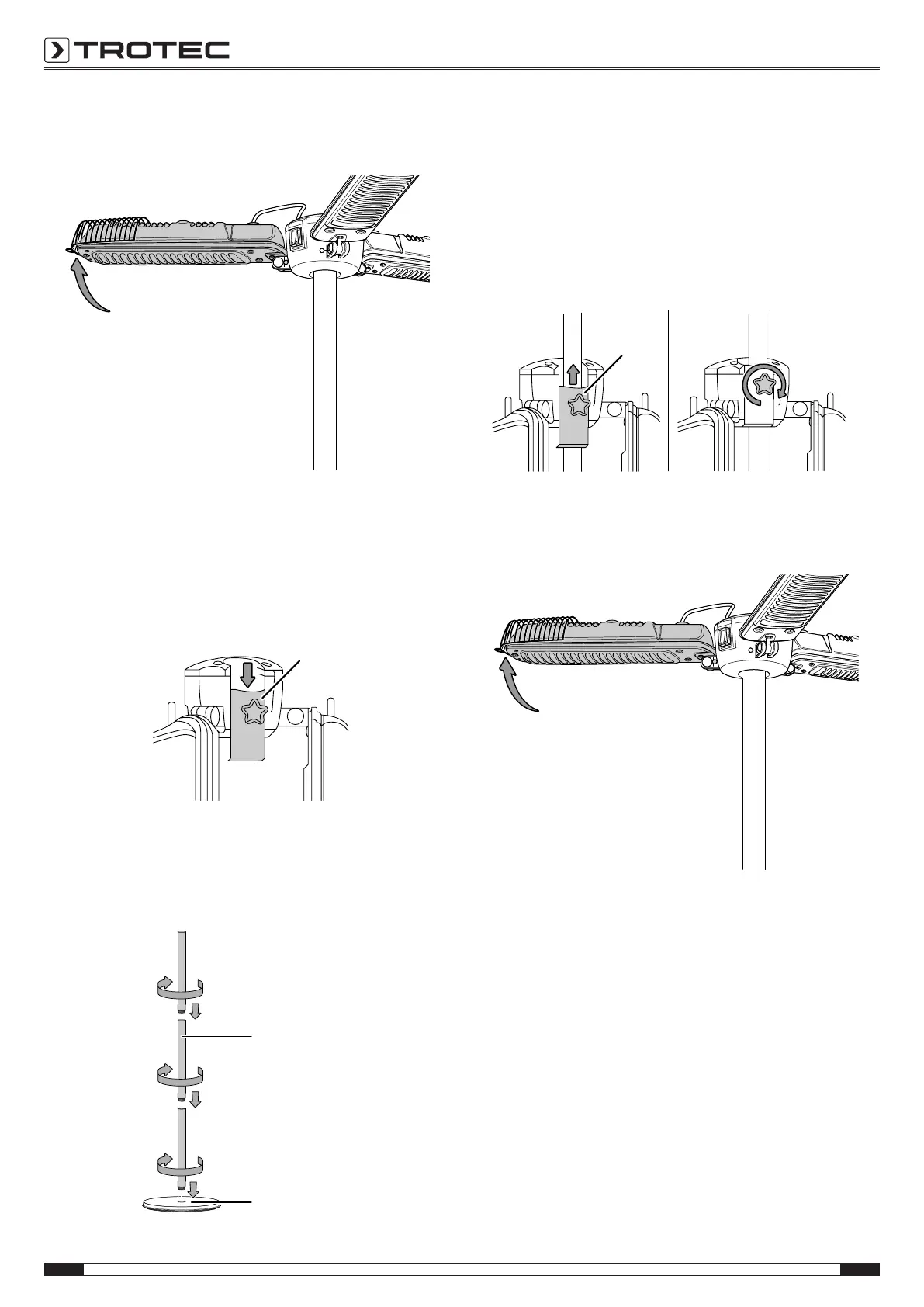

Assembly of the IRS2005
1. If required, slide the mounting bracket(6) out of the recess
between the heating blades of the radiant heater.
6
2. Set the foot(5) up in an upright position.
3. Connect the three component parts of the telescopic
rod(4) with the foot(5) as shown by tightening them.
5
4
4. Fit the radiant heater on the telescopic rod.
ð The three heating blades point downwards.
ð Hold on to the radiant heater, as otherwise it will slip. If
necessary, seek assistance from a second person.
5. Insert the mounting bracket(6) back into the recess
between the heating blades of the radiant heater again and
fasten the radiant heater by turning the star screw in
clockwise direction.
6
6. Fold the heating blades into a horizontal position until they
engage with a click.
7. Check the foot(5) and the radiant heaters for tight fit.
8. Set the device up in an upright and stable position.
