radiant heater IR 2005 SC / IRS 2005
Assembly and start-up
Scope of delivery
IR 2005 SC
• 1x device
• 1x manual
IRS 2005
• 1x device
• 1x Telescopic rod
• 1x Foot
• 1x manual
Unpacking the device
1. Open the cardboard box and take the device out.
2. Completely remove the packaging.
3. Fully unwind the power cable. Make sure that the power
cable is not damaged and that you do not damage it during
unwinding.
Assembly
Warning
Risk of fire due to improper installation!
There is a risk of fire if the required minimum
distances are not observed.
Observe the “Installation” section in the “Assembly and
start-up” chapter and the technical data in the
“Technical annex” chapter.

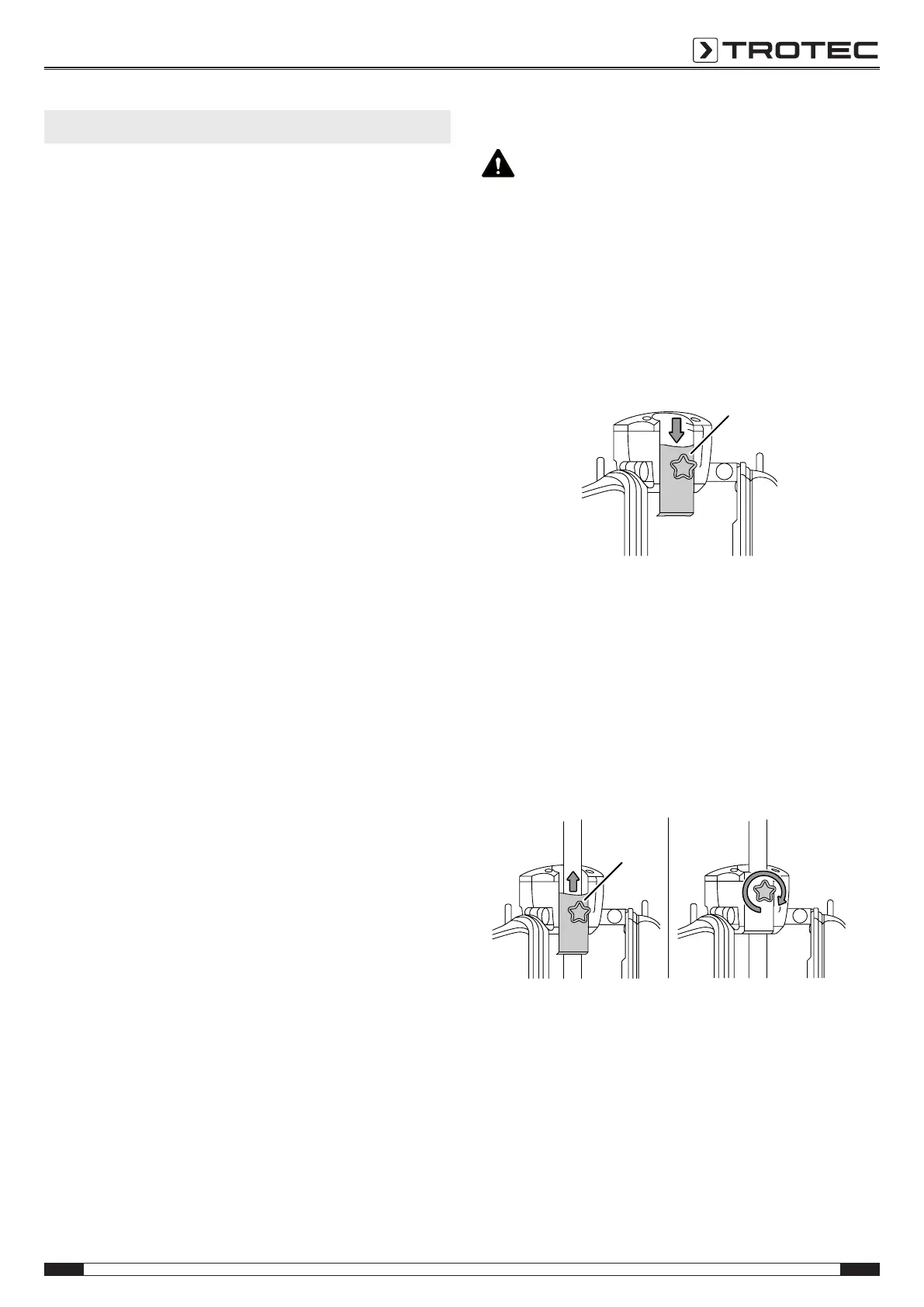

Assembly of the IR2005SC
1. If required, slide the mounting bracket(6) out of the recess
between the heating blades of the radiant heater.
6
2. Fasten the radiant heater to an umbrella stand or a
suitable telescopic rod (Ø 2.5cm - 6cm).
ð The three heating blades point downwards.
ð Hold on to the radiant heater, as otherwise it will slip. If
necessary, seek assistance from a second person.
3. Insert the mounting bracket(6) back into the recess
between the heating blades of the radiant heater again and
fasten the radiant heater by turning the star screw in
clockwise direction.
6
